IRD811D Pro Kit – Digital Vibration Meter and Spike Energy Bearing Checker
Portable vibration meter and bearing health checker with Spike Energy.
- Measures overall vibration as acceleration (20.00 g pk), velocity (200.0 mm/s RMS) and displacement (2000 µm pk-pk).
- Spike Energy (up to 20.00 gSE) to assess the condition of anti-friction (rolling element) bearings.
- 3½-digit LCD that is easy to read even in bright sunlight, membrane keypad with push buttons, and a 9 V rechargeable battery with charger.

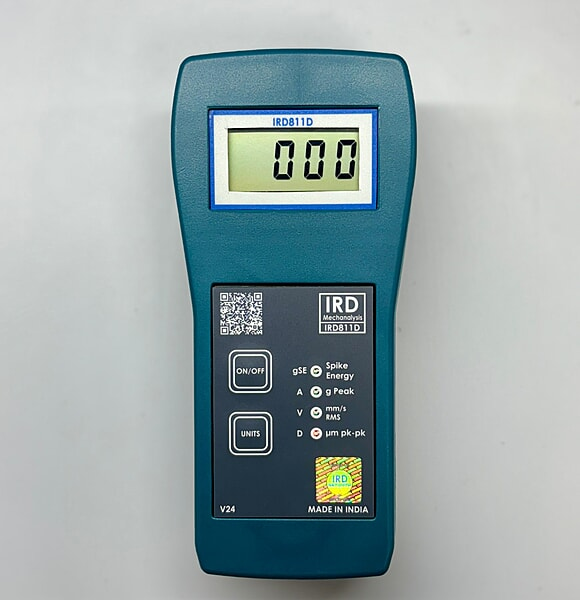

IRD811D Pro – Vibration Meter and Bearing Health Checker
The IRD811D Pro is a portable instrument from IRD Mechanalysis that measures overall vibration amplitude as acceleration, velocity and displacement. It is also a bearing health checker: it measures Spike Energy, a parameter that helps assess the condition of anti-friction (rolling element) bearings.
The IRD811D is easy to use, and its display is easy to read even in bright sunlight. It is a practical tool for routine vibration checks on motors, pumps, fans, compressors and other machines. By trending Spike Energy and comparing it with charts, maintenance teams can judge a bearing's remaining useful life and act in advance to keep operation and maintenance running smoothly.
Key features
- Four measurements in one instrument: acceleration (g pk), velocity (mm/s RMS, peak on request), displacement (µm pk-pk) and Spike Energy (gSE)
- Bearing condition assessment through Spike Energy trending
- 3½-digit LCD, easy to read even in bright sunlight
- Membrane keypad with push buttons
- Works with a rechargeable or non-rechargeable 9 V battery; a rechargeable battery and charger are supplied
- Kit includes a 20 kg pull magnet and a 9-inch extension rod for hard-to-reach spots
Typical applications
- Routine vibration checks on motors, pumps, fans and compressors
- Bearing condition checks with Spike Energy
- Trending Spike Energy to estimate a bearing's remaining useful life and plan maintenance
Specifications
| Parameter | Value |
|---|---|
| Acceleration | Amplitude 20.00 g pk; frequency 2 Hz to 10 kHz |
| Velocity | Amplitude 200.0 mm/s RMS (pk on request); frequency 2 Hz to 5 kHz |
| Displacement | Amplitude 2000 µm pk-pk; frequency 2 Hz to 400 Hz |
| Spike Energy | 20.00 gSE |
| Input sensor | Accelerometer, 100 mV/g (IRD521) |
| Accuracy | ±1% of full scale (instrument only); ±10% (instrument with sensor) |
| Display | LCD, 3½ digit, easily readable in bright sunlight |
| Keypad | Membrane type with push buttons |
| Input power | 1 × 9 V battery, rechargeable or non-rechargeable; 210 mAh or higher recommended |
| Operating temperature | 0 °C to 55 °C |
| Storage temperature | −18 °C to +60 °C |
| Instrument | 0.4 kg; 175 mm (L) × 80 mm (W) × 54 mm (H) |
| Kit weight | Approx. 2 kg in carrying case (including meter and standard accessories) |
What's in the kit
- 1 × IRD811D Pro unit
- 1 × vibration sensor (accelerometer), 100 mV/g
- 1 × coiled cable, 0.8 m collapsed / 3 m expanded, 2-pin connectors at the meter and sensor ends
- 1 × 9-inch extension rod (stinger) for hard-to-reach spots
- 1 × 20 kg pull magnet for magnetic mounting
- 1 × 9 V rechargeable battery with charger
- 1 × soft or hard carrying case, as ordered
Why IRD
IRD Mechanalysis was founded in 1955 and has been present in India since 1962. Spike Energy is IRD's own bearing-condition method. Our instruments are designed and built at our works on the outskirts of Mumbai (Thane), and we calibrate and repair them ourselves. Calibration of the IRD811D with its sensor is available as a service. Need readings saved and exported to Excel? See the IRD202 Elite.
