IRD8520 Dual-Channel Vibration Transmitter with Colour Display

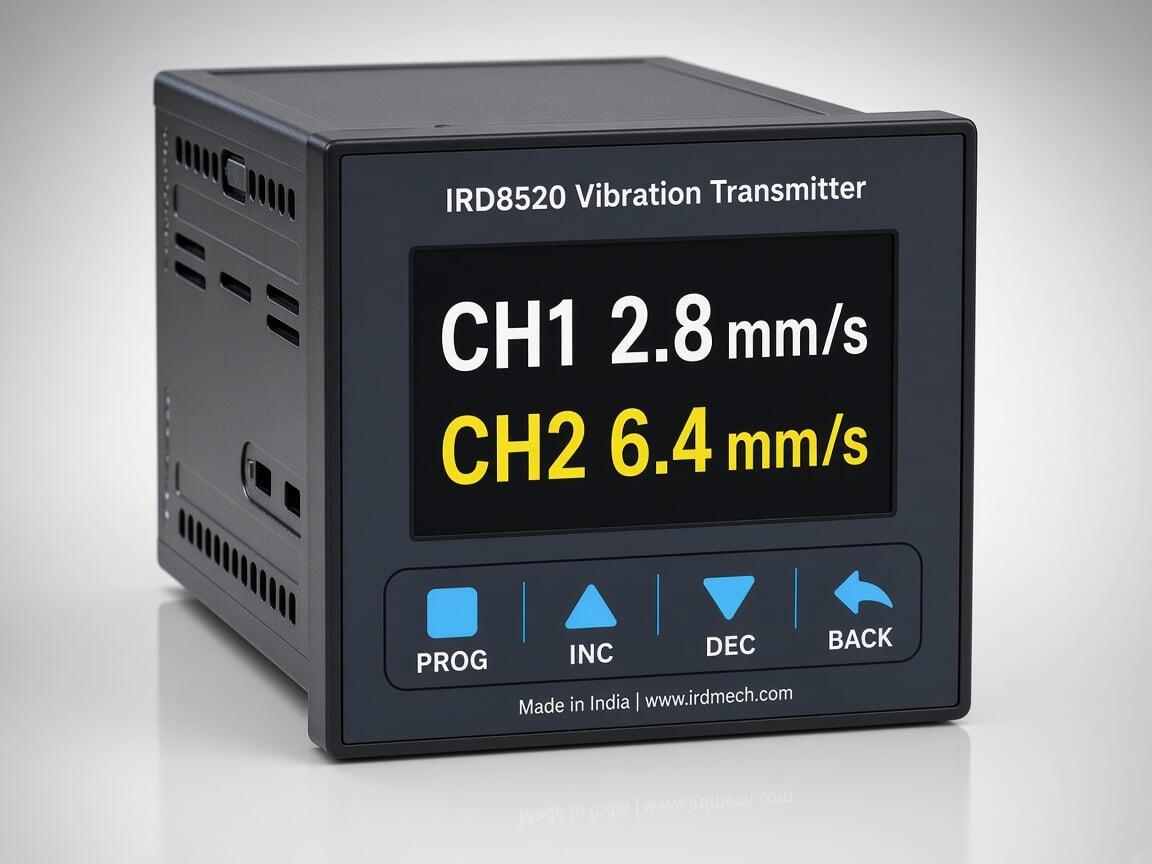

Made in India, the IRD8520 monitors two IEPE/ICP accelerometers continuously in a compact 96 × 96 mm panel-mount enclosure. A 3.5" colour TFT shows the live value at the machine, and the value turns yellow on Alarm and red on Trip. Each channel provides an isolated 4–20 mA output, a 1:1 AC buffered output, and Alarm and Trip relays. RS485 Modbus RTU links it to a DCS, PLC or SCADA, and to the Zoho IoT cloud platform for remote monitoring.
Key features
- 2 channels for IEPE/ICP accelerometers, 100 mV/g (sensitivity fine-tuned via keypad)
- 3.5" colour TFT, 480 × 320, colour-coded alarm states
- Isolated 4–20 mA and 1:1 buffered output per channel
- Alarm + Trip relays per channel, NO/C/NC, 7 A at 240 VAC
- RS485 Modbus RTU, ID 001–255, 9600–115200 baud
- Over-range and transducer-fail diagnostics
- Password-protected four-key keypad (PROG, INC, DEC, BACK)
- Connects to Zoho IoT for cloud monitoring
- Made in India
- 3-year warranty
Specifications
| Input power | Nominal 24 V DC, 1 A (24 VA) |
| Inputs | 2 × IEPE/ICP accelerometers, 100 mV/g |
| Current output | Isolated 4–20 mA per channel, proportional to full scale |
| Full-scale units | g, m/s², mm/s, in/s (pk/RMS); µm, mils, mm (pk/pk-pk) |
| Max measurement | 20.00 g pk · 200.0 mm/s RMS · 2000 µm pk-pk |
| Alarm / Trip relays | Per channel, keypad setpoints, default delay 5 s, latching disabled; relays are non-fail-safe (not configurable). NO, C and NC contacts are provided, so they can be wired for fail-safe operation. 7 A at 240 VAC |
| Buffered output | 1:1 AC per channel |
| Display | 3.5" colour TFT 480 × 320 (yellow = alarm, red = trip) |
| Diagnostics | Over-range: 4–20 mA saturates at 20 mA, "Over Range". Transducer fail: 2.8 mA, "Tx Fail" |
| Communication | RS485 Modbus RTU; ID 001–255; 9600/19200/38400/115200; parity N/O/E |
| Dimensions / mounting | 96 × 96 mm; cutout 92 × 92 mm; depth 150 mm; flush/panel mount |
| Warranty | 3 years |
Applications
- Pumps, fans, motors, compressors and gearboxes
- Local alarm/trip at the machine with 4–20 mA and Modbus to DCS/PLC/SCADA
Ordering information
Model IRD8520 · SKU IRD8520 · Item code ITEM3734. Sensors and cables are quoted separately. Made to order. Contact sales for lead time.
FAQs
Which sensors does it accept? IEPE/ICP accelerometers, 100 mV/g.
Can it connect to my PLC? Yes, through the isolated 4–20 mA output or RS485 Modbus RTU.
What happens if a sensor fails? The output drops to 2.8 mA and the display flashes "Tx Fail".
Can the relays be fail-safe? The relays cannot be configured as fail-safe. Because both C and NC contacts are provided, the external circuit can be wired for fail-safe operation.
Does it work with the cloud? Yes, it connects to Zoho IoT.
Warranty? 3 years.
IRD Mechanalysis: machine condition monitoring specialists since 1955. Bhiwandi, Thane – 421311.
