IRD8100 Machinery Protection Transmitter (MPT)
Wall-mounted, with almost everything the M88200 has | Made in India
Download DatasheetRequest a Quote
About the IRD8100
IRD8100 is IRD’s wall-mounted Machinery Protection Transmitter. It delivers nearly the same monitoring and protection capability as the IRD8800 rack’s M88200 vibration monitor module — but in a field-mount IP65 enclosure you can install next to the machine, without a control-room rack.
Order it for Vibration, Temperature, Speed or Gap. Designed and made in India by IRD Mechanalysis Limited.
IRD8100 vs M88200: Same idea of continuous protection (live display, 4-20 mA, MODBUS, alarm/trip relays, buffered waveform, phase reference) — IRD8100 is wall-mounted beside the machine; M88200 lives in an IRD8800 rack in the control room.
IRD8100 vs IRD7100: Both are wall-mounted MPTs. Prefer IRD8100 when you want M88200-class buffered outputs, phase reference and dual-channel vibration protection in one field enclosure. Prefer IRD7100 when you already standardise on the IRD7100 family for vibration, gap, speed or temperature.
Key Features
- Wall-mount Al die-cast enclosure, IP65, ~330 × 230 × 181 mm, hinged door (RAL7035)
- Alphanumeric + bargraph display; LED lamps for Alarm / Trip / Startup
- Password-protected keypad programming (units, full scale, sensitivity, setpoints)
- 2 independent, simultaneous, programmable channels (vibration configuration)
- Industry outputs: 4-20 mA, MODBUS RTU and MODBUS TCP/IP, alarm & trip relays per channel
- Buffered time-waveform (BNC + terminals) and phase-reference output via BNC
- Phase reference input from eddy-current probe or laser tachometer
- Start-up protection with configurable delay; trip bypass mode
- Made in India — Request a Quote (sales@irdmech.com / +91-22 4897 2000)
Specification Highlights (vibration configuration, from datasheet)
| Power | 90–264 VAC 50/60 Hz or 127–370 VDC; max ~24 W |
|---|---|
| Sensors | Accelerometer (mV/g) or velometer (mV/mm/s) |
| Measurement | Overall vibration — acceleration, velocity or displacement |
| Maximum | 10 g pk / 7 g RMS; 150 mm/s pk / 100 mm/s RMS; 1000 µm pk-pk |
| Filters | HP 5/10/20 Hz; LP 1/5/10 kHz |
| Accuracy | ±1% of full scale |
| Relays | 2 alarm + 2 trip sets per channel, 5 A @ 230 VAC resistive |
| Weight | ~7.14 kg net |

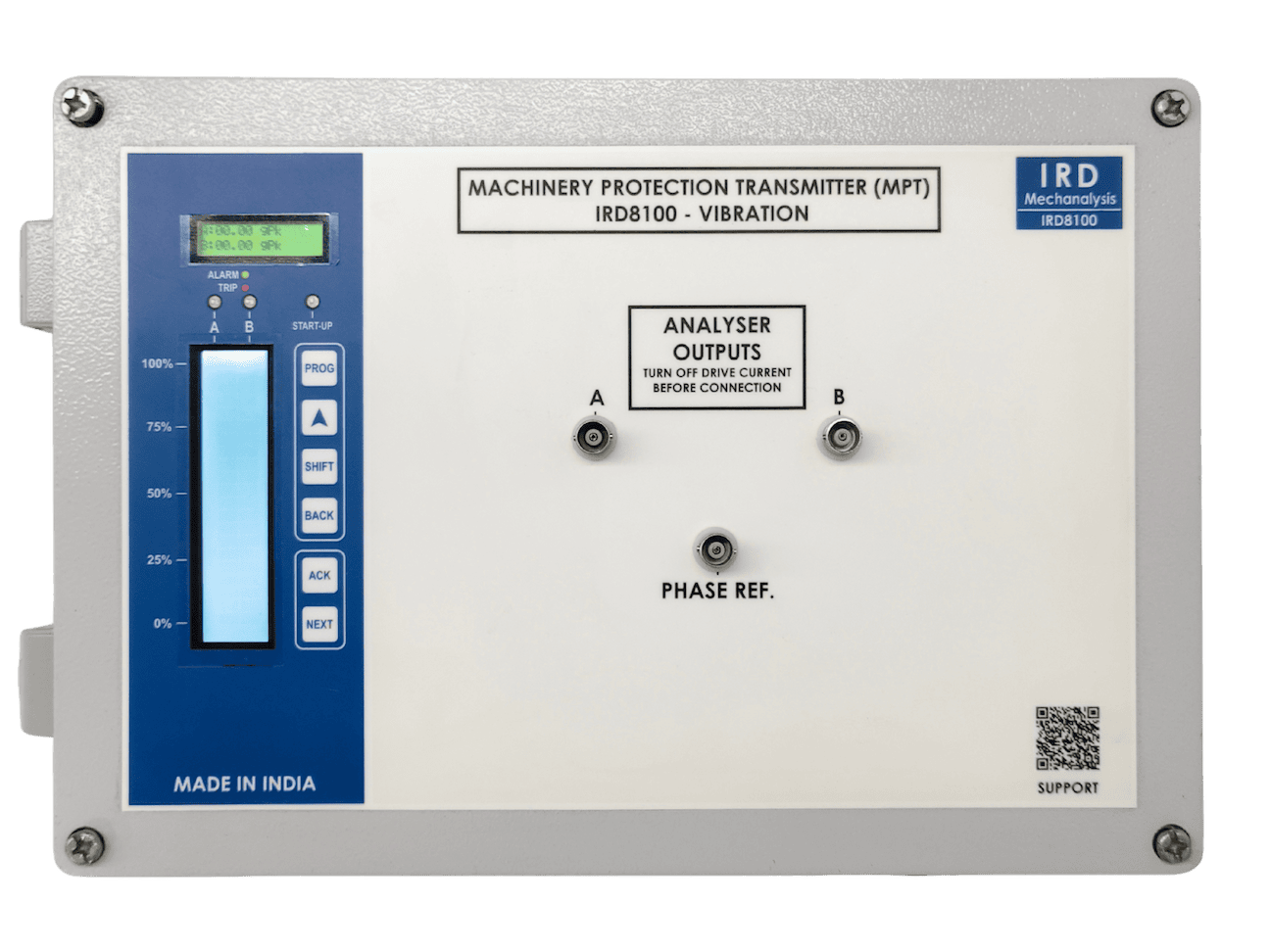

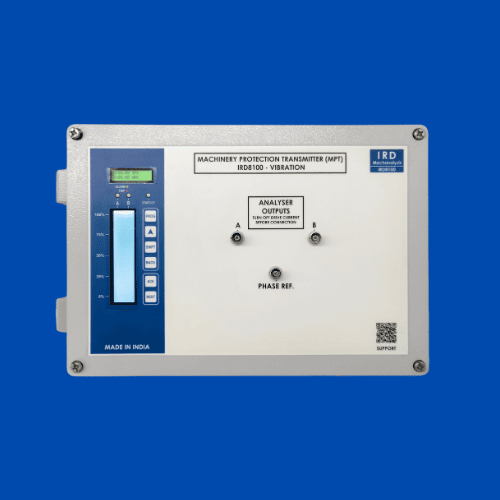

Photos
Datasheet
Download the IRD8100 MPT Data Sheet (PDF)
Request a Quote
Email sales@irdmech.com or call +91-22 4897 2000 (Mon–Sat 9 AM–6 PM IST). Quote a complete system: sensors, cables and transmitter.
