Speed Monitoring via Rack Mounted API 670 Compliant IRD8800 Machinery Protection System (MPS)
Rack Mounted | Speed via Laser or Eddy Current Sensor | 5 Years Warranty
Introduction
IRD Mechanalysis Limited has been a Condition Monitoring Solutions provider to the World since 1962. Also commonly referred to as 'IRD' - the Solutions range from Portable Instruments to Online Systems for Vibration, Temperature, Speed, Gap, Bearing and Turbine Monitoring. IRD provides API670 Compliant Rack Based Machinery Protection System IRD8800 that can do 24x7, 365 days Speed Monitoring
Gallery

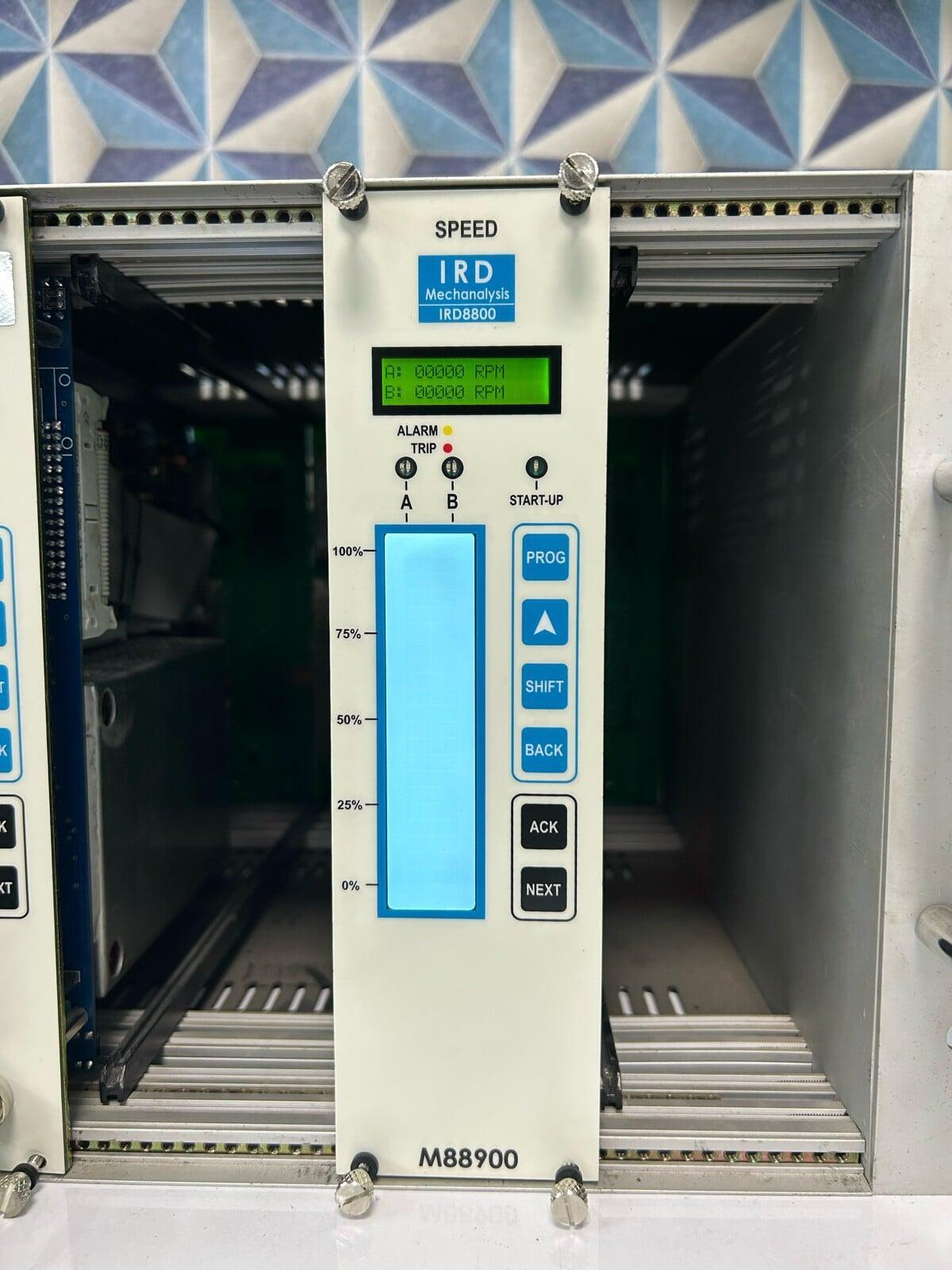

M88900 Speed Monitoring Module of IRD8800
This Rack Based Speed Monitoring Module can fit into any IRD8800 Rack. It works on 24 V DC Power Input. It can use a Laser Sensor or Non-Contact Eddy Current Based Sensor as Input. It has 2 Channels. It provides readout of Speed in both RPM and Hz. It has 4-20mA output, Alarm and Trip Relay Contacts and MODBUS RTU Output
Frequently Asked Questions (FAQ)
Reverse Rotation Monitoring
IRD supplies reverse rotation monitoring for rotating machinery — so you can detect when a shaft turns the wrong way and protect the machine before damage occurs.
On the IRD8800 rack, reverse rotation is handled by the M88925 module. It takes dual eddy-current probe (ECP) inputs and indicates shaft direction on the front panel with LEDs. Like other IRD8800 modules, it fits a hot-swappable slot in the same API 670 rack used for vibration, speed, gap and temperature.
We also supply reverse rotation monitoring as part of a complete online system solution (sensors, panel wiring and protection outputs) when your project needs direction detection alongside speed and vibration.
