IRD811D Pro - Digital Vibration Meter and Spike Energy Detector

Recommended: IRD202 Elite

Same vibration and Spike Energy bearing checks as the IRD811D Pro, plus memory with Excel export and ISO 20816-3 colour-coded severity — for only ₹5,000 more.

See IRD202 Elite

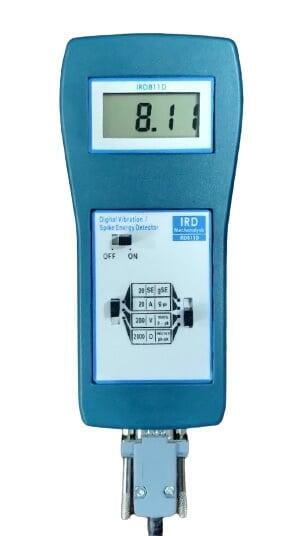

IRD811D Pro – Vibration Meter and Bearing Health Checker

Overall vibration in acceleration, velocity and displacement, plus Spike Energy (gSE) for rolling-element bearing condition – in one push-button handheld.

Made in India  |  IRD Mechanalysis, founded 1955  |  1-year warranty  |  National Traceable calibration at our Thane works

Overview

The IRD811D Pro is a portable instrument from IRD Mechanalysis that measures overall vibration amplitude as acceleration, velocity and displacement. It is also a bearing health checker: it measures Spike Energy™, a parameter that helps assess the condition of anti-friction (rolling element) bearings.

It is easy to use, and its display is easy to read even in bright sunlight. It is a practical tool for routine vibration checks on motors, pumps, fans, compressors and other machines. By trending Spike Energy and comparing it with charts, maintenance teams can judge a bearing's remaining useful life and act in advance.

Key features

  • Four measurements in one instrument: acceleration (g pk), velocity (mm/s RMS; mm/s peak variant on request), displacement (µm pk-pk) and Spike Energy (gSE).
  • Bearing condition check through Spike Energy measurement and trending.
  • Push-button membrane keypad for power and mode selection – no slide switches to set wrongly.
  • 3½-digit LCD, easily readable in bright sunlight.
  • Ready to use out of the box: IRD521 accelerometer, coiled cable, 20 kg magnet, 9-inch stinger, rechargeable battery and charger.
  • Designed, built, calibrated and repaired by IRD Mechanalysis in Thane, Maharashtra.

Applications

WhereWhat the IRD811D Pro helps you check
Rolling-element bearingsSpike Energy (gSE) readings and trends to judge bearing condition and plan lubrication or replacement before failure.
Electric motorsOverall velocity for general machine condition; acceleration and gSE at the bearing housings.
PumpsRoutine velocity checks on pump and motor bearings; displacement on slower machines.
Fans and blowersVelocity readings before and after maintenance; bearing checks with gSE.
Compressors and other rotating machinesRoute-based overall vibration checks by maintenance teams.

Reading Spike Energy: a simple guide

gSE readingTypical action
Up to about 0.5 gSEBearing condition acceptable – keep trending.
0.5 to 1.4 gSELubricate the bearing to prolong its life, and check again.
Above 1.4 gSEPlan bearing replacement.

Guide values based on users' field practice. Trends on the same machine and point matter more than a single reading.

Specifications

ParameterValue
AccelerationAmplitude 20.00 g pk; frequency 2 Hz to 10 kHz
VelocityAmplitude 200.0 mm/s RMS (pk on request); frequency 2 Hz to 5 kHz
DisplacementAmplitude 2000 µm pk-pk; frequency 2 Hz to 400 Hz
Spike Energy20.00 gSE
Input sensorIRD521 accelerometer, 100 mV/g
Accuracy±1% of full scale (instrument only); ±10% (instrument with sensor)
DisplayLCD, 3½ digit, easily readable in bright sunlight
KeypadMembrane type with push buttons
Input power1 × 9 V battery, rechargeable or non-rechargeable; 210 mAh or higher recommended
Operating temperature0 °C to 55 °C
Storage temperature−18 °C to +60 °C
Instrument size and weight175 mm (L) × 80 mm (W) × 54 mm (H); 0.4 kg
Kit weightApprox. 2 kg in carrying case (meter and standard accessories)
Warranty1 year

We reserve the right to change specifications without prior notice.

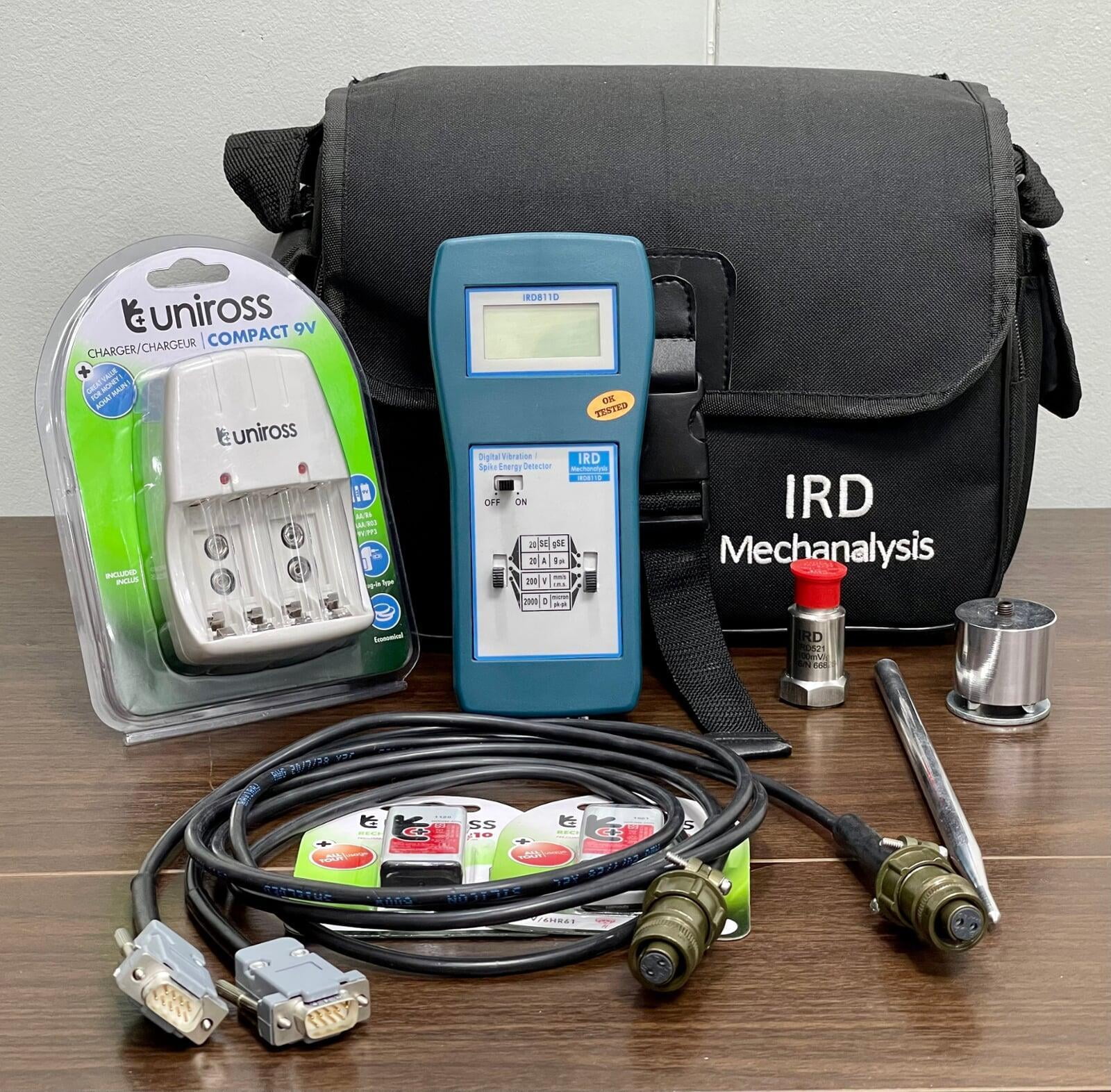

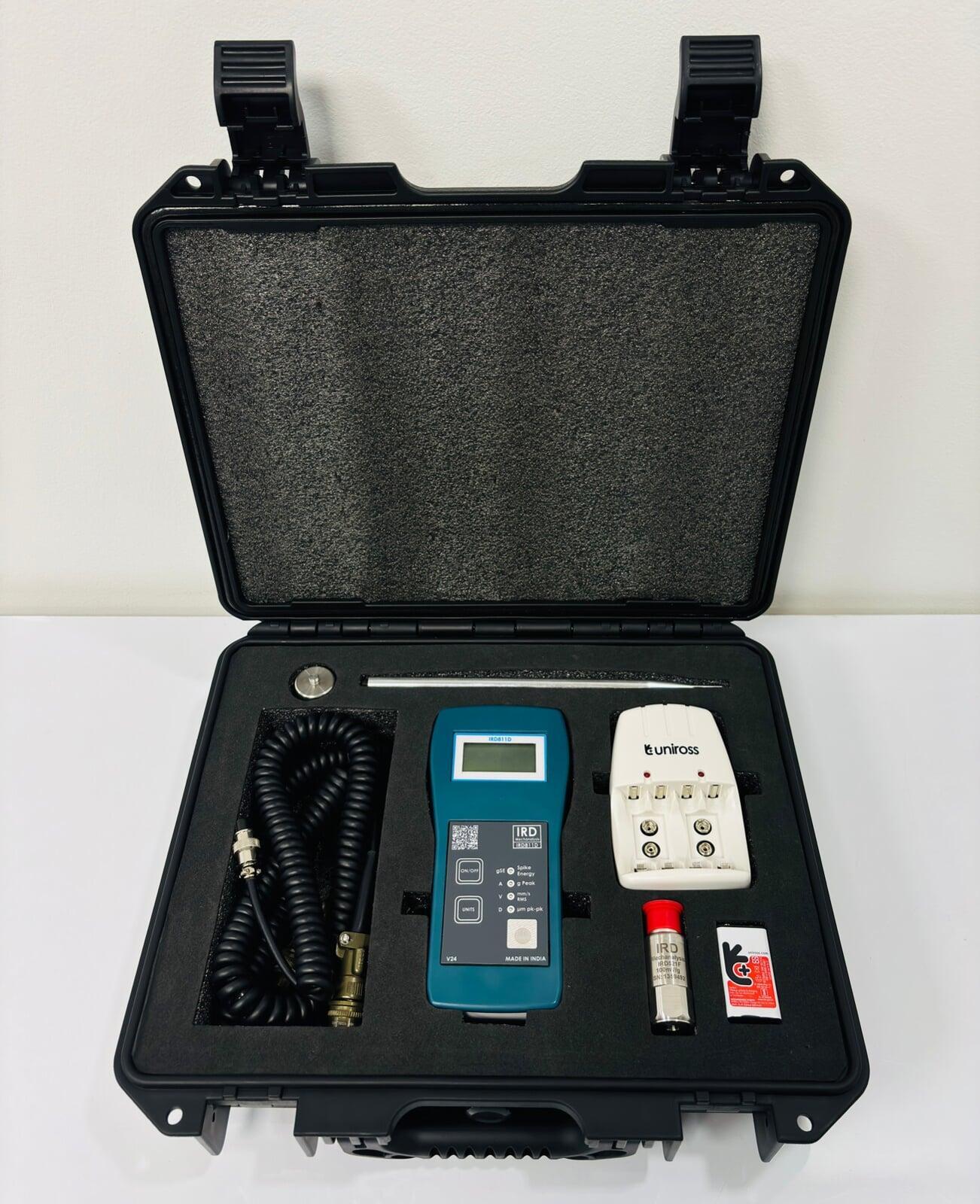

What's in the kit

  • 1 × IRD811D Pro vibration meter
  • 1 × IRD521 vibration sensor (accelerometer), 100 mV/g
  • 1 × coiled cable, 0.8 m collapsed / 3 m expanded, 2-pin MRS connector at meter end and 2-pin MS connector at sensor end
  • 1 × 9-inch extension rod (stinger) for hard-to-reach spots
  • 1 × 20 kg pull magnet for magnetic mounting
  • 1 × 9 V rechargeable battery with charger
  • 1 × hard carrying case (soft carry bag on request)

Spare cables, magnets, stingers and batteries are listed below this description.

Which IRD vibration meter is right for you?

IRD301 Lite IRD306DP Plus IRD811D Pro IRD202 Elite
Recommended
Velocitymm/s RMS, 0–200mm/s RMS, 0.1–200.0mm/s RMS, up to 200.0 (pk on request)mm/s RMS & pk, in/s RMS & pk
Displacement–µm pk-pk, 1–2000µm pk-pk, up to 2000µm pk-pk & pk, mils, mm
Acceleration––g pk, up to 20.00g pk & RMS, m/s² pk & RMS
Bearing condition (Spike Energy)––Yes, up to 20.00 gSEYes, gSE
Memory & Excel export–––Yes – time-stamped readings, USB-C, Excel export
ISO 20816-3 colour severity–––Yes, zones A–D
Sensor suppliedIRD521 accelerometerIRD531 velocity sensorIRD521 accelerometerIRD521 accelerometer
Best forSimple velocity checksVelocity and displacement checksMachine and bearing condition in one meterMachine and bearing condition, with saved readings and reports
View IRD301View IRD306DPThis productView IRD202 Elite

Most customers choose the IRD202 Elite.

Warranty, calibration and repair

  • Warranty: 1 year on the instrument.
  • Calibration: National Traceable calibration of the meter with its sensor, done at our Thane works. Meter-to-sensor pair calibration is available for better accuracy.
  • Repairs: we repair IRD instruments ourselves; repairs carry a 3-month warranty.
  • See Repairs and Calibration or the IRD811D Pro user manual.

Why IRD

IRD Mechanalysis was founded in 1955. Spike Energy is IRD's own bearing-condition method. Our instruments are designed and built at our works in Thane, and we calibrate and repair them ourselves.

Frequently asked questions

What is Spike Energy (gSE)?

Spike Energy is a measurement that responds to the short, repetitive impacts produced by defects and poor lubrication in rolling-element bearings. Trending gSE over time and comparing it with charts helps you judge a bearing's condition and remaining life. As a guide, about 0.5 gSE is acceptable, 0.5–1.4 gSE calls for lubrication and above 1.4 gSE calls for bearing replacement.

Which units does the IRD811D Pro display?

Acceleration in g pk, velocity in mm/s RMS, displacement in µm pk-pk and Spike Energy in gSE. A velocity variant reading mm/s peak is available on request – mention it when you ask for a quote.

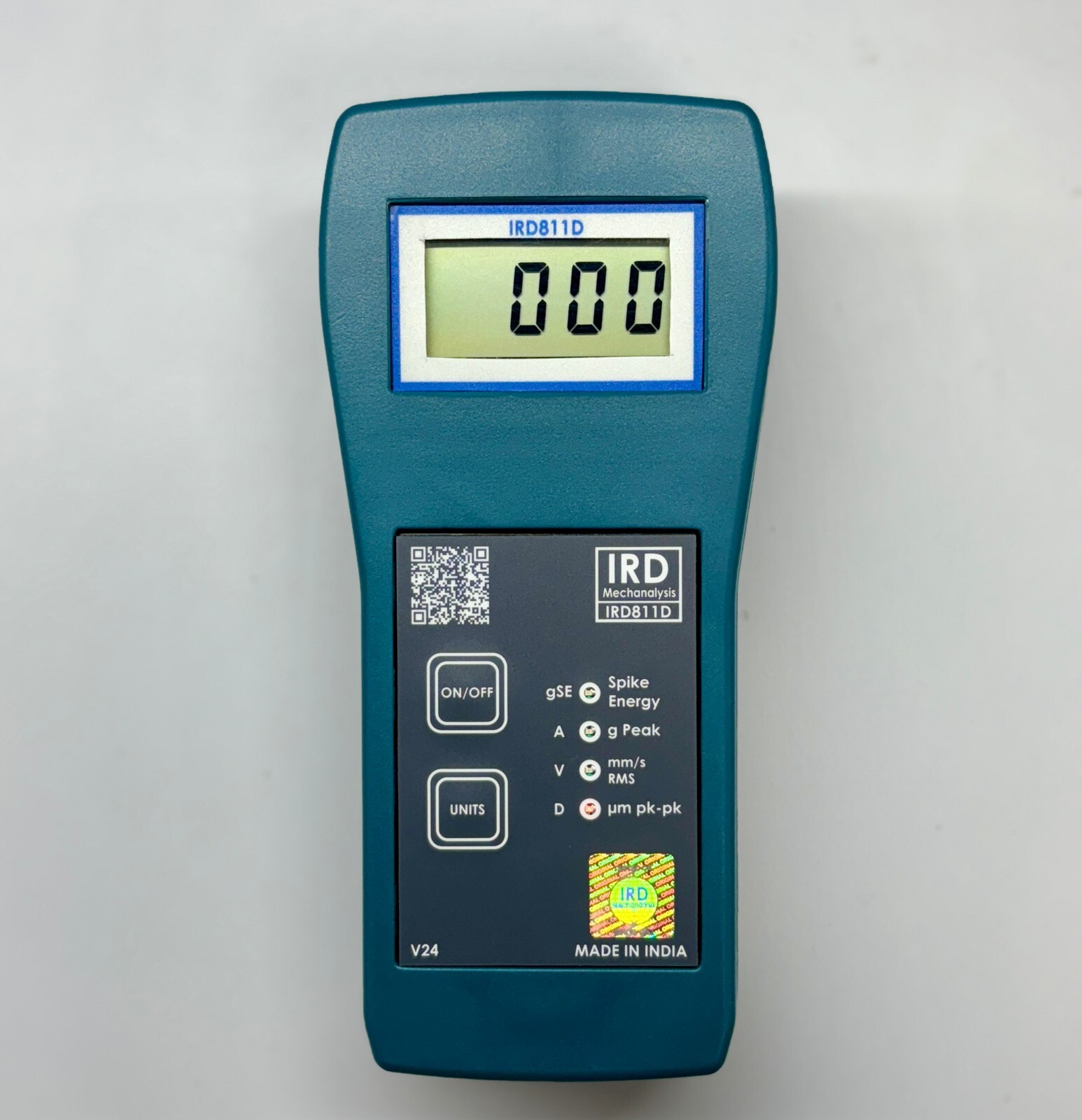

What does the meter show when I switch it on?

It starts in acceleration (g pk) mode. Use the push buttons to change modes.

Which sensor does it use?

The IRD521 accelerometer (100 mV/g), supplied in the kit with a coiled cable, 20 kg magnet and 9-inch stinger.

What battery does it need?

One 9 V battery, rechargeable or non-rechargeable; 210 mAh or higher is recommended. A rechargeable battery and charger are included.

What is the warranty?

1 year on the instrument. Repairs carry a 3-month warranty.

Can you calibrate my IRD811D?

Yes. We offer National Traceable calibration of the meter with its sensor at our Thane works.

How is it different from the IRD306DP and IRD301?

The IRD301 reads velocity only and the IRD306DP reads velocity and displacement. The IRD811D Pro adds acceleration and Spike Energy, so you can check bearing condition as well.

Buy the kit and accessories online

Order the complete IRD811D Pro Kit, or the spares listed below: coiled cable, 20 kg pot magnet, stinger and 9 V rechargeable battery. More accessories are available on request from sales@irdmech.com or +91-22-4897-2000 (Monday to Saturday, 9:00 AM to 6:00 PM IST).

Need a quotation or a demo?

Request a Quote WhatsApp +91-9082527331

Or call 022-4897 2000 (Monday to Saturday, 9:00 AM to 6:00 PM IST). Downloads: IRD811D Pro brochure (PDF) · Portable Instruments brochure (PDF)
