Condition Monitoring for Oil & Gas – Refineries, Petrochemicals and Hazardous Areas

Solutions for Every Hazardous-Area Zone

Hard-wired sensor loops with a Zener barrier or galvanic isolator per channel, and IRD7200 transmitters in CIMFR/PESO certified Ex-d enclosures, selected to suit the zone and gas group of each site.

Zone definitions as per IEC 60079-10-1.

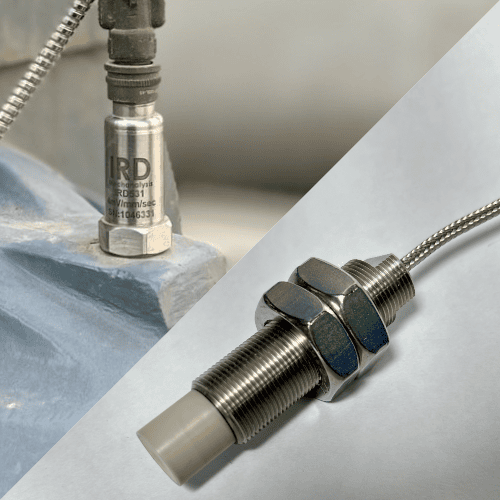

ATEX, IECEx & PESO Certified Contact Sensors

Intrinsically safe accelerometers and transmitters for refinery machinery. Each sensor is chosen to suit the zone and gas group of the site.

• Loop-powered sensors for Zone 0, 1 and 2: ATEX certified, Ex ia IIC T6, 4-20 mA output.
• Intrinsically safe accelerometers for Zone 1: ATEX & IECEx Group II.
• PESO certified accelerometers for Zone 2: 100 mV/g, SS316L body, IP68; gas groups IIA/IIB.
• Intrinsically safe mini accelerometers: 100 mV/g.

For general-purpose (non-hazardous) areas: IRD521 industrial vibration sensor. See all vibration sensors.

Shaft Vibration and Gap Monitoring – IRD401

Non-contact eddy current probes for relative shaft vibration and differential expansion. We provide sensors and monitoring systems suitable for use in hazardous areas for gap monitoring: air gap, radial gap and axial gap, on DIN-rail, wall-mounted or rack-mounted monitors.

• IRD401 Non-Contact Eddy Current Proximity Sensor
• Gap monitoring via IRD8800
• Gap monitoring via IRD7100

IRD7200 in Explosion-Proof Enclosures

IRD7200 MST DIN-rail mounted within explosion-proof enclosures rated for Zone 0, 1 or 2.

Ex-d flameproof enclosures, CIMFR/PESO certified to IS/IEC 60079-1, for gas groups IIA, IIB and IIC:

• 375 × 375 × 225 mm, 2 channels: one IRD7200 with display on the lid, pre-wired for power, input and output.
• 590 × 480 × 275 mm, 12 channels: six IRD7200 and 12 displays, BNC buffered outputs, double-compression glands.

Vibration monitoring via IRD7200 | IRD7200 Machinery Signal Transmitter | Bearing condition monitoring via IRD7200

Safety Barriers and Isolators

PESO-rated sensors connect to IRD8800 M88200 modules through Zener barriers or galvanic isolators.

1. Hazardous area: PESO-rated intrinsically safe sensor.
2. Barrier: Zener safety barrier (one per channel) or galvanic isolator.
3. Safe area: IRD8800 M88200 module or IRD7200 MST.

IRD8800 – API 670 Machinery Protection for Refineries

API 670 compliant, high-integrity machinery protection for refinery critical machines: turbine supervisory and balance-of-plant vibration monitoring, 24x7.

• 5U rack, 1 to 8 slots, 16 module types
• Hot-swappable modules and redundant power supply
• CE marked

IRD8800 API 670 Compliant Vibration Monitoring System | M88200 Casing Vibration Module | Vibration monitoring via IRD8800

Services for Oil & Gas

Commissioning, calibration, training and repairs from our own service centre on the outskirts of Mumbai (Thane), backed by vibration-monitoring expertise since 1955.

• Commissioning: system commissioning and installation of online monitoring at site. Commissioning
• Calibration: full-frequency calibration of sensors of any make, traceable to national standards. Repairs & Calibration
• Training: vibration analysis per ISO 18436-2, Category I to IV. Training
• Repairs: new and old IRD instruments, at our service centre on the outskirts of Mumbai (Thane). Repairs & Calibration
• Consulting: vibration analysis, dynamic balancing, thermography and laser alignment. Consulting Service

Planning Hazardous-Area Monitoring?

Share your zone, gas group and machine list, and our engineers will propose the right sensors, enclosures and monitors.

Request a Quote
