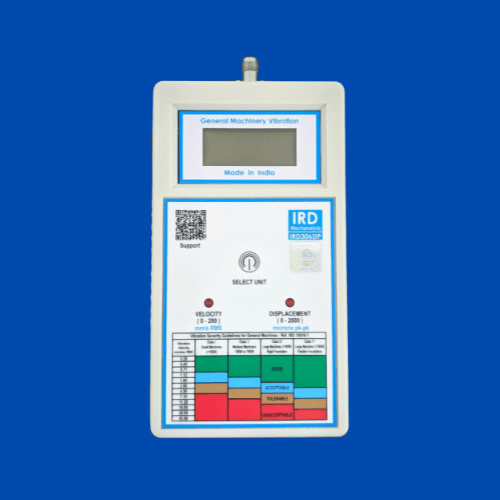

IRD306DP - Digital Vibration Meter

IRD306DP is an Easy-to-use and Cost-Effective Digital Vibration Meter. It allows measurement of Vibration in Velocity and Displacement. The salient features of this Vibration Meter are:

• Easy to Read 3 1/2 Digit LCD Display that can be viewed even in Bright Sunlight with ease
• Works with IRD531 Vibration Sensor as Input. IRD531 is a Velometer that has a Sensitivity of 4 mV/mm/s +/- 10% nominal at 80Hz and 22 Deg C
• IRD306DP Measures Vibration Velocity in mm/sec RMS with a minimum reading of 0.1 mm/s RMS and maximum 200.0 mm/s RMS - good enough to cover both smooth machines and rough machines
• IRD306DP Measures Vibration Displacement in microns pk-pk with a minimum reading of 1 um pk-pk and maximum 2000 um pk-pk - again good enough to cover both smooth machines and rough machines
• ISO 20816-1 chart pasted on front for quick reference. The Vibration Velocity limits are mentioned in mm/s RMS on the chart for different classes of machine

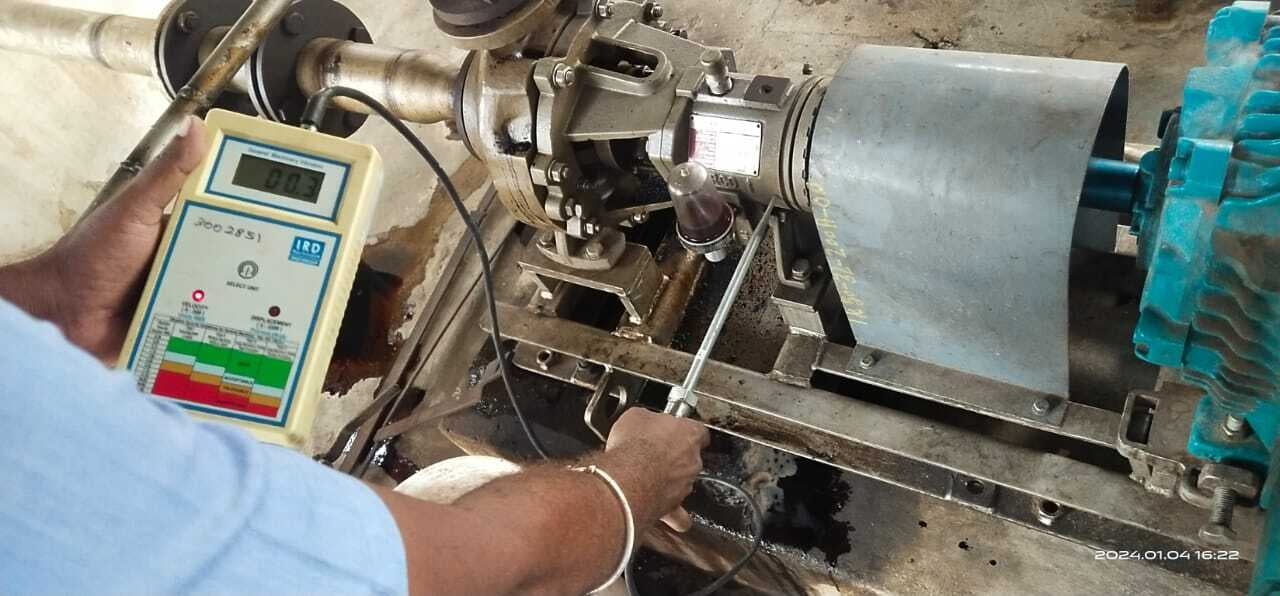

• Kick Stand on Enclosure for convenience. This allows for hands-free measurement of Vibration if needed at Field

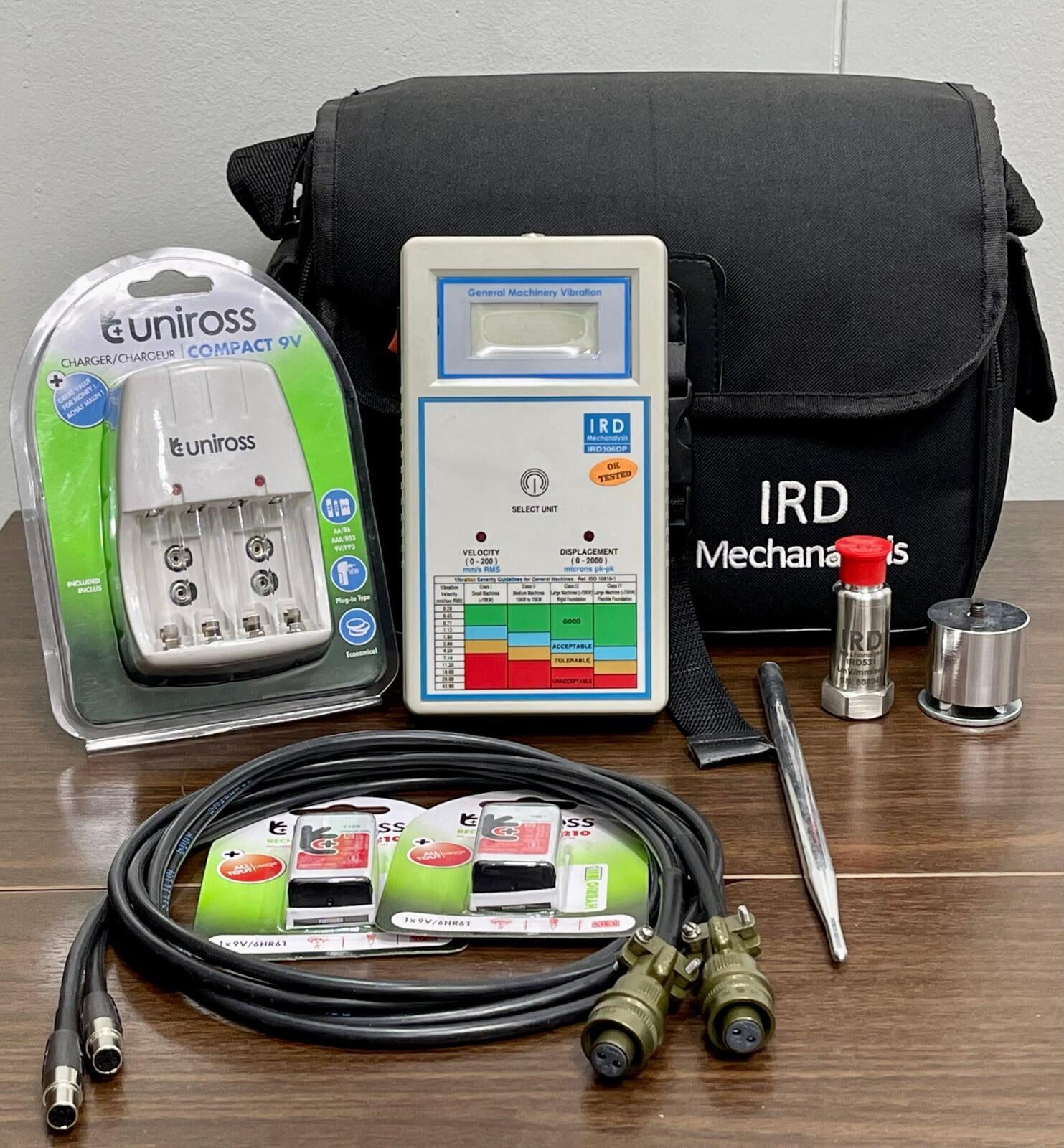

• IRD306DP Vibration Meter x 1
• IRD531 Vibration Sensor (Nominal Sensitivity 4 mV/mm/sec) x 1

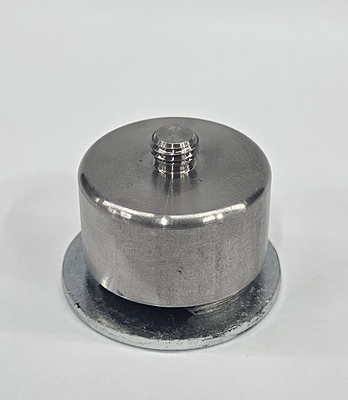

• Sensor Mounting Magnet x 1

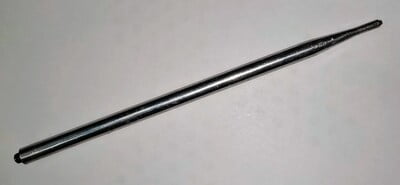

• Sensor Extension to enable reaching Hard-to-Reach spaces (Stinger) x 1
• Connecting Cables Coiled or Straight (as requested - if not specified, then coiled by default) x 2

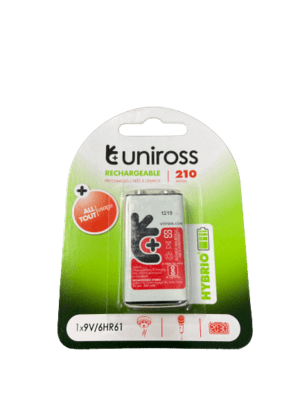

• Uniross make 9V Rechargeable Batteries x 1
• Uniross make Charger x 1

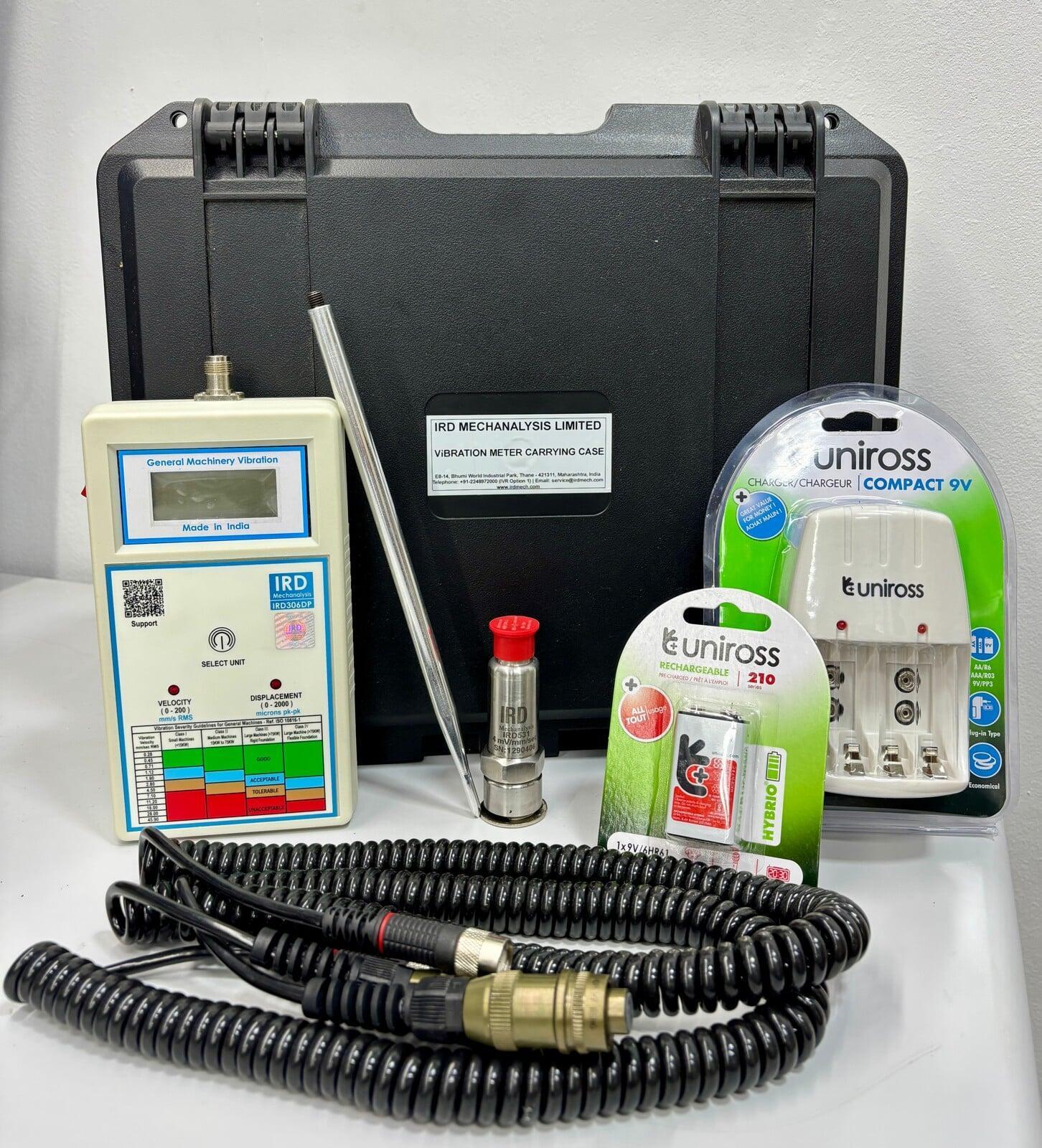

• Hard Carry Case x 1 (Soft Carry Bag available on request)

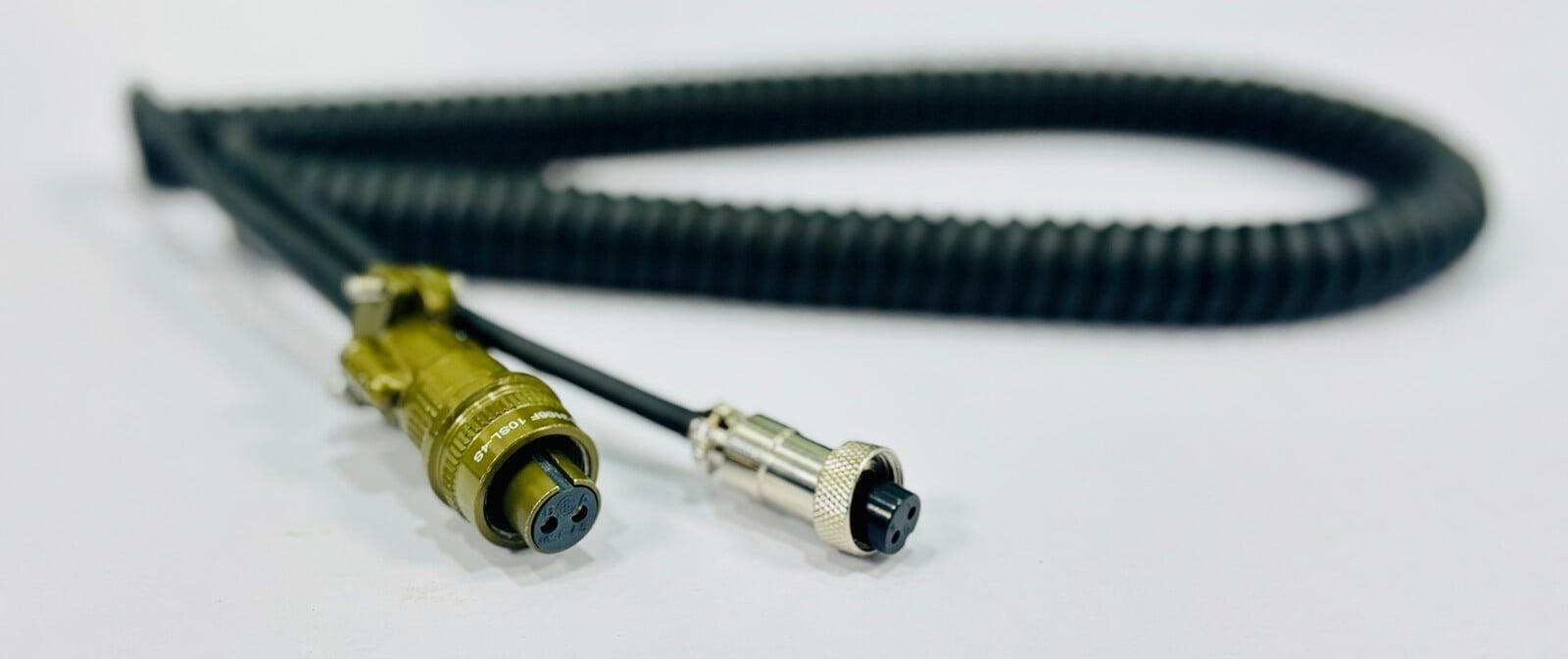

IRD306DP Digital Vibration Meter comes with 2 Coiled Cables in a Standard Kit - 1 Main and 1 Spare. The Coiled Cable has a smooth Matt finish that is easy to hold and maneuver. It has a 2 Pin MS Female connector at Sensor End and 2 Pin MRS Female Connector at Meter End. It has a collapsed length of 0.8 meters and an expanded length of 3 meters. The Cable allows for easy vibration measurement using Vibration Meter IRD306DP and Vibration Sensor IRD531. If you need to order a spare cable - please contact our Sales Team on sales@irdmech.com

Earlier IRD306DP was also sold with Mini XLR connector as well as TNC Connector. If you need spare cables with Mini XLR Connector or TNC Connector - then please specify in your enquiry and we can support the requirement and supply as needed
