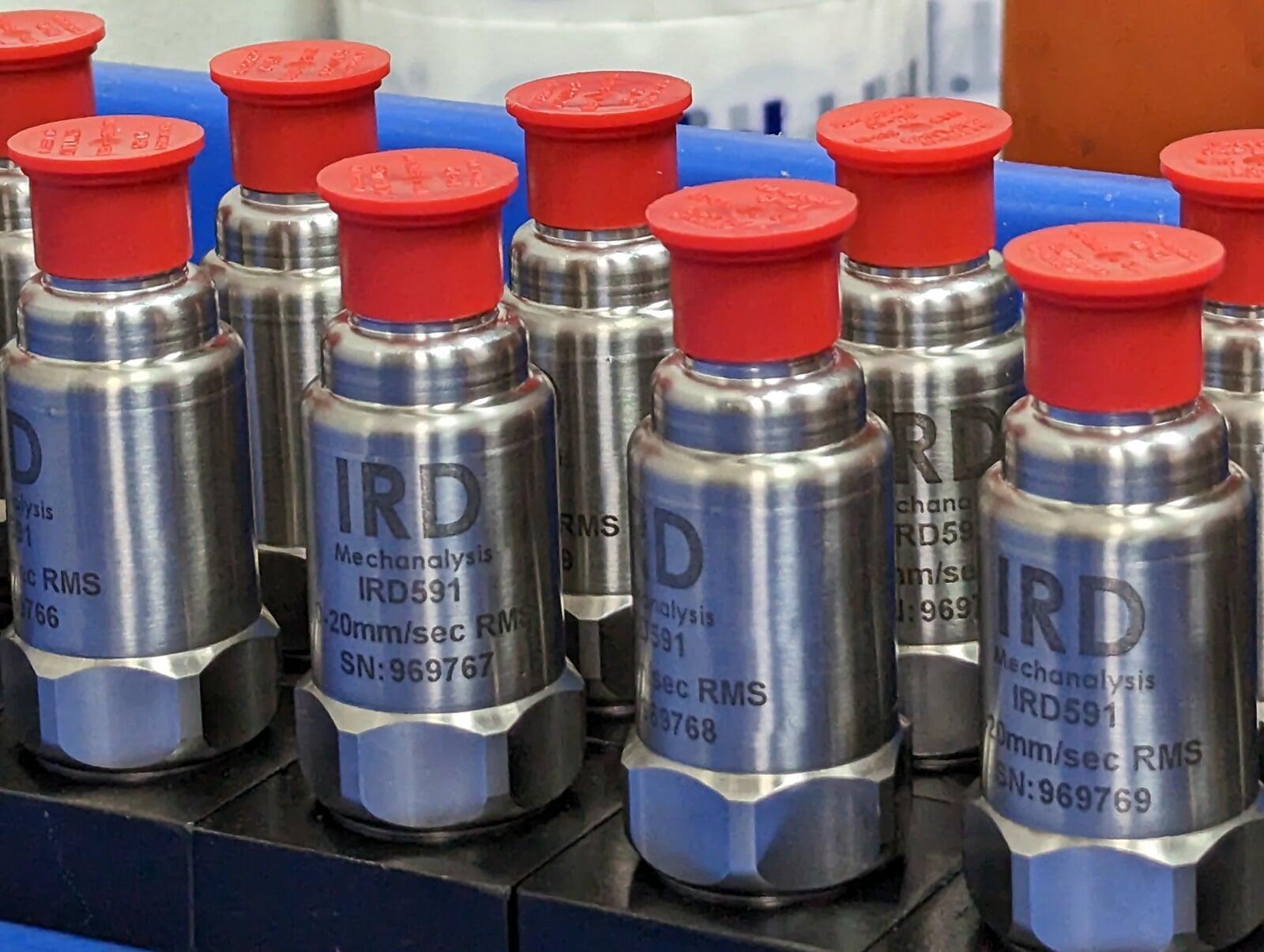

IRD591 - 4-20mA Output Loop Powered Vibration Sensors
IRD591 is a family of Loop Powered Vibration Sensors that provide 4-20 mA DC output proportional to a preset Full Scale Range. These sensors are extremely popular and easy to install and use. When the Vibration is 0 - the current output of the sensor is 4 mA DC and when the Vibration is Full Scale - the current output of the sensor is 20 mA DC. When connection to sensor breaks - the current output diminishes to 0 mA DC. This ease and simplicity allows for large-scale implementation of these Sensors as these can be directly hooked up to DCS/PLC/SCADA
These are available in different full scale ranges like 0-10 mm/sec RMS, 0-20 mm/sec RMS, 0-25 mm/sec RMS, 0-50 mm/sec RMS and 0-100 mm/sec RMS with the most common stock option being 0-25 mm/sec RMS

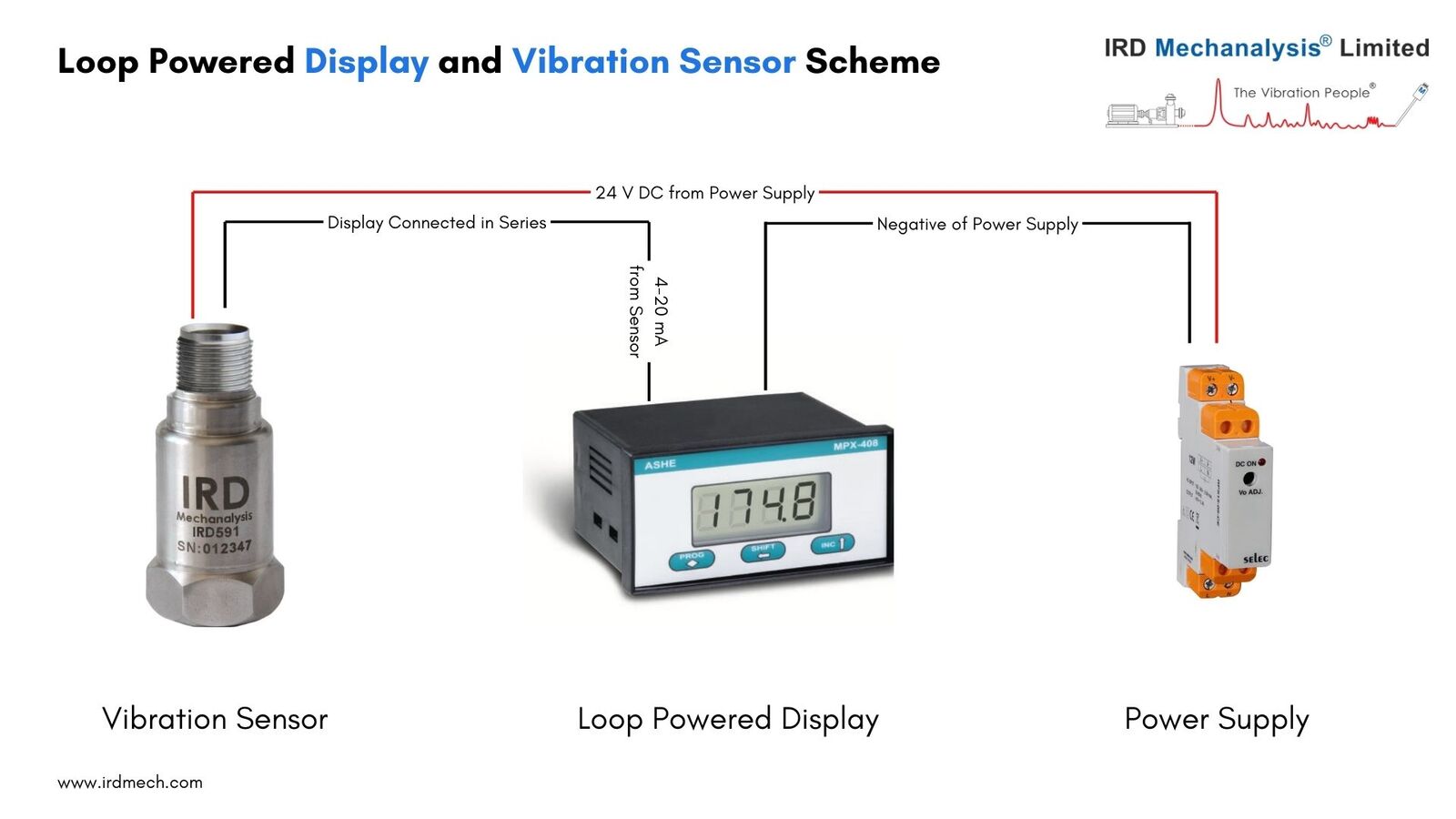

Typical Connection Scheme
One Sensor - many benefits
IRD591 is an affordable and easy solution for Round the Clock 24x7, 365 days Vibration Monitoring

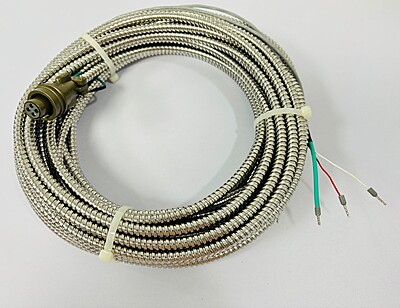

Be it just 1 Sensor or 500+ sensors - we have no MOQ for this product and you can request a quote for as many as you need. We provide Mounting Pads, Studs and Connecting Cables (of required length) along with the Sensor.
Feel free to email us your requirements on sales@irdmech.com OR give us a call on +91-2248972000 (Monday to Saturday 9 AM to 6 PM IST)
Data Sheets
| Sr. No. | Item Description | Item SKU (Stock Keeping Unit) | Data Sheet Download Link |
| 1 | IRD591 (591) - Industrial Vibration Sensor, Loop Powered, 4-20 mA proportional to 0-25 mm/s RMS Vibration, 2 Pin MS Top Exit, 1/4-28" UNF female thread tapped | M5910255001000 | M5910255001000 Data Sheet |
