OLIVER Advanced – Vibration Analysis Software for Online Systems
On-Line Investigation of Vibration in Equipment and Rotary Machines
Everything in OLIVER Basic, plus raw-signal plots – waveform, spectrum, orbit, Bode, Cascade and Waterfall – for in-depth vibration analysis.
Request a QuoteBook a DemoWhatsApp +91-9082527331
Everything in Basic
Custom dashboards, colour-coded thresholds, Time-to-Alarm, live and historical trends and tables, Excel export and remote IRD8800 configuration. See OLIVER Basic →
Analysis plots
Time waveform
Live and static time waveform of the raw signal.
Frequency spectrum (FFT)
Live and static spectrum to pinpoint the frequencies behind high vibration.
Orbit & shaft centreline
Shaft motion and position inside the bearing.

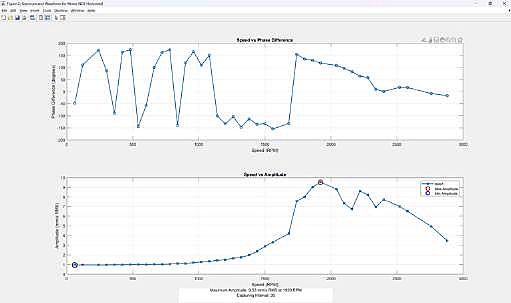

Bode plot
Amplitude and phase versus speed during run-up and coast-down. Needs a tachometer input. What is a Bode plot?
Cascade plot
Spectra stacked against speed. Needs a tachometer input.
Waterfall & harmonic orders
Spectra stacked over time, and vibration at running-speed orders.
Reporting and history
Export plots for reports and view historical plots – available in OLIVER Advanced and Extreme only.
Data acquisition
Raw-signal analysis needs a data acquisition (DAQ) unit. OLIVER Advanced works with proven DAQ hardware from NI, Gantner or another make, chosen to suit the project. OLIVER Basic, Advanced and Extreme support MODBUS RTU/TCP, OPC UA, MQTT, Profinet, HART and more, and a Zoho IoT cloud connection is available on request for these three editions.
Works with IRD online systems: IRD8800 MPS, IRD7100 MPT, IRD7200 MST, IRD7400 and IRD591 sensors, plus third-party devices over MODBUS.
Configuration included
Like every OLIVER edition, this one includes OLIVER Configuration: password-protected viewing and amending of unit, full scale, alarm and trip set points, sensor sensitivity and more on the IRD8800 over MODBUS RTU or TCP. See OLIVER Configuration →
Demo video
IRD8800 Machinery Protection System – Live Demo with OLIVER Software
Minimum PC requirements
The same PC specification applies to every OLIVER edition – Configuration, Basic, Advanced and Extreme.
- Windows 10 or later (Windows 11 preferred)
- Intel Core i5 12th Gen or higher (or AMD Ryzen 5)
- 8 GB RAM; integrated or external graphics
- 256 GB SSD or higher
- Min. 1920×1080, 15.6" or larger display
- Ethernet port, USB 2.0 or better, keyboard & mouse
- UPS power so background tasks keep running
Read more in our Help Center: System requirements – OLIVER Advanced → · Minimum system requirements – OLIVER Basic →
Want automatic diagnosis?
OLIVER Extreme adds automatic identification of the most likely cause of high vibration. Compare all editions →
Price on request
OLIVER is custom-built for each project. Licensing depends on the number of channels, PCs and project needs, so every price is a quotation from sales@irdmech.com.
