Portable Instruments
Vibration Meters | Vibration Analyzers | In-Situ Dynamic Balancers
IRD Mechanalysis Limited manufactures Portable Instruments for Vibration Measurement. IRD manufactures both Analog as well as Digital Vibration Meters. In addition to above - IRD also sells Vibration Analyzers and In-Situ Dynamic Balancers of B&D Industrial make VibePro.
Product Portfolio
Our Digital Vibration Meters are Made in India and are designed for measuring Vibration Amplitude. We have models ranging from simple ones measuring just vibration velocity to more sophisticated ones measuring Vibration Amplitude in all Acceleration, Velocity and Displacement as well as measuring Spike Energy™ for assessing Rolling Element Bearing Condition. These Meters allow for quick routine checks and help in Preventive and Predictive Maintenance

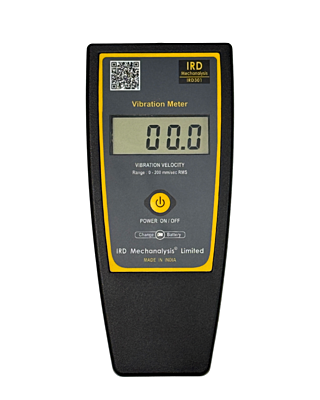

IRD301 - Vibration Velocity
IRD301 is our Made in India and most economical and cost-effective Digital Vibration Meter. It comes in a rugged and sleek enclosure that is comfortable to hold. It is extremely simple to use and just has 1 single button for Power On and Off. It measures Vibration Velocity in mm/sec RMS and the readings can be compared to ISO 20816 charts. It has a LED for Low Battery Indication and it runs on a single 9V Rechargeable battery. In a standard kit of IRD301 - we offer the following items and accessories:
- 1 x Vibration Meter IRD301
- 1 x Vibration Sensor IRD521 Accelerometer 100 mV/g
- 2 x Interconnecting Coiled cable for IRD301 and IRD521. 0.8 meters collapsed length and 3 meters extended length (1 Main and 1 Spare)
- 1 x 9" Stinger attachment for IRD521 Sensor to help reach hard-to-reach places
- 1 x 20kg pull strength magnetic mount attachment for IRD521 Sensor
- 1 x 9V Rechargeable battery
- 1 x Battery Charger
- 1 x Hard carrying case or Soft carrying case - as ordered

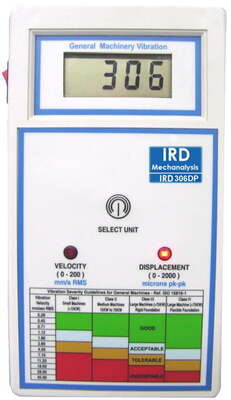

IRD306DP - Vibration Velocity and Displacement
IRD306DP is our Made in India Digital Vibration Meter. It comes in a rugged enclosure that is Built-to-last. It is able to measure Vibration Velocity in mm/sec RMS (mm/sec pk available on request) and Vibration Displacement in microns pk-pk. It has a kick stand at back for convenience and an ISO 10816-3 standards chart at front for easy and quick reference. It has low battery indication and runs on 9V battery. In a standard kit of IRD306DP - we offer the following items and accessories:
- 1 x Vibration Meter IRD306DP
- 1 x Vibration Sensor IRD531 Velometer 4 mV/mm/sec
- 2 x Interconnecting Coiled cable for IRD306DP and IRD531. 0.8 meters collapsed length and 3 meters extended length (1 Main and 1 Spare)
- 1 x 9" Stinger attachment for IRD531 Sensor to help reach hard-to-reach places
- 1 x 20kg pull strength magnetic mount attachment for IRD531 Sensor
- 1 x 9V Rechargeable battery
- 1 x Battery Charger
- 1 x Hard carrying case or Soft carrying case - as ordered

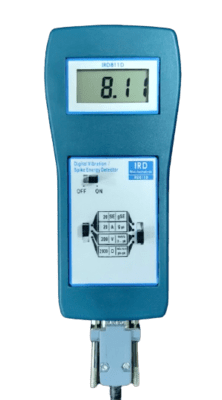

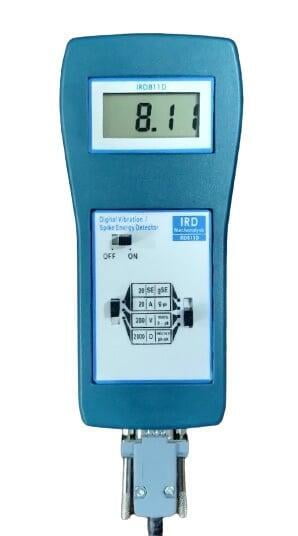

IRD811D - Vibration Amplitude and Bearing Condition
IRD811D is our Made in India Digital Vibration Meter cum Spike Energy™ Detector. It is able to measure Vibration Acceleration in g pk, Vibration Velocity in mm/sec RMS (mm/sec pk available on request) and Vibration Displacement in microns pk-pk. It measures Spike Energy™ (gSE) that helps inform Anti Friction (Rolling Element) bearing condition and helps in planning for bearing maintenance. It has low battery indication and runs on 9V battery. In a standard kit of IRD811D - we offer the following items and accessories:
- 1 x Vibration Meter cum Spike Energy™ detector IRD811D
- 1 x Vibration Sensor IRD521 Accelerometer 100 mV/g
- 2 x Interconnecting Coiled cable for IRD811D and IRD521. 0.8 meters collapsed length and 3 meters extended length (1 Main and 1 Spare)
- 1 x 9" Stinger attachment for IRD521 Sensor to help reach hard-to-reach places
- 1 x 20kg pull strength magnetic mount attachment for IRD521 Sensor
- 1 x 9V Rechargeable battery
- 1 x Battery Charger
- 1 x Hard carrying case or Soft carrying case - as ordered
Our Analog Vibration Meters are Made in India and are designed for measuring Vibration Amplitude. In the era of dominance of Digital Vibration Meters - our Analog Vibration Meters are still going strong - as the moving needle provides an accurate representation of the extents of Vibration and till today is preferred by seasoned Vibration Analysts. We have models ranging from simple ones measuring just vibration velocity to more sophisticated ones measuring Vibration Amplitude in all Acceleration, Velocity and Displacement as well as measuring Spike Energy™ for assessing Rolling Element Bearing Condition. These Meters allow for quick routine checks and help in Preventive and Predictive Maintenance

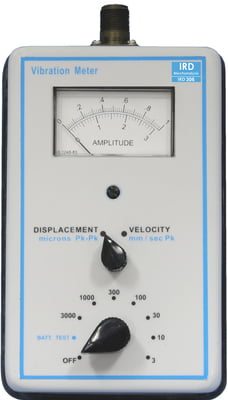

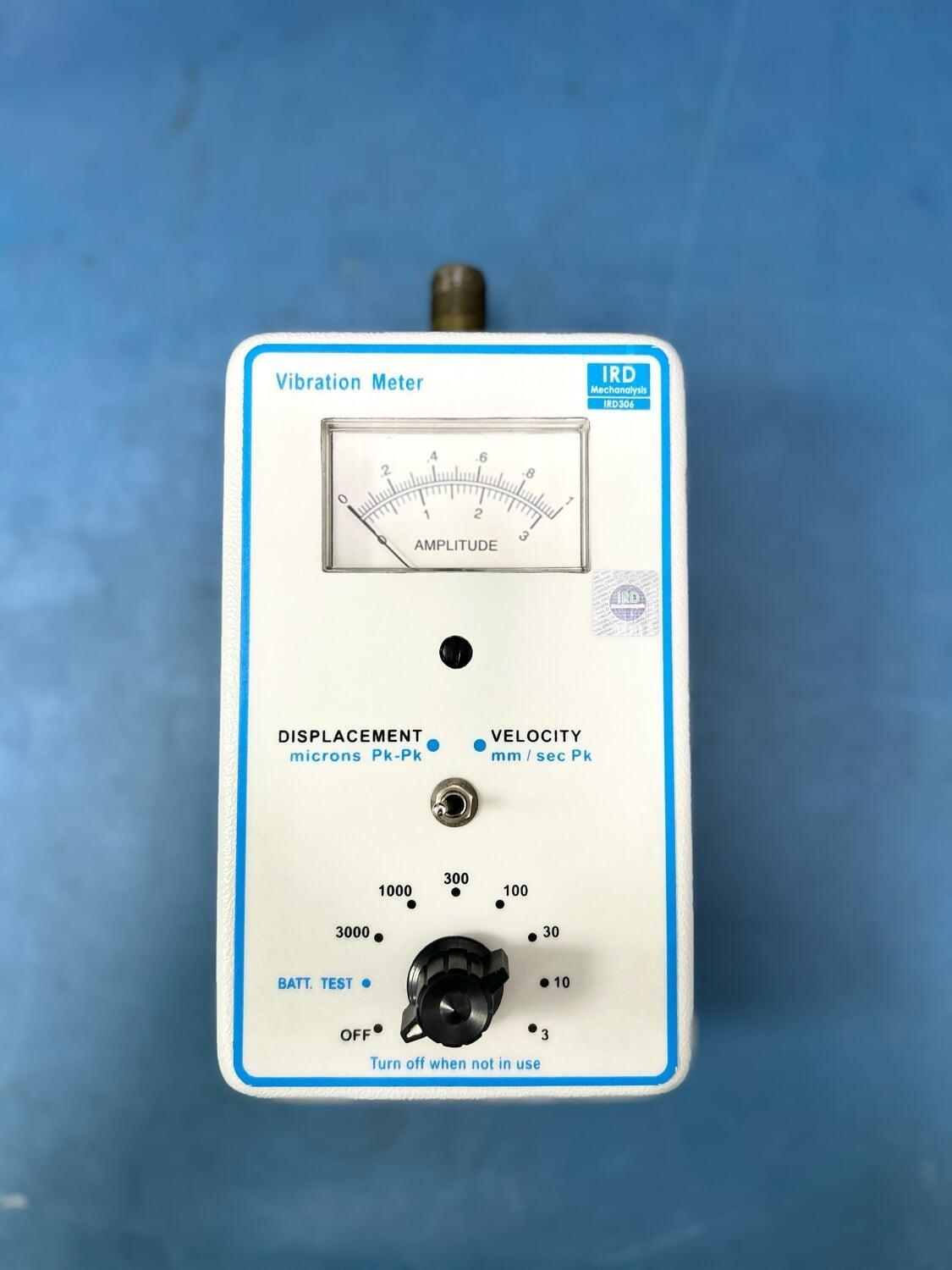

IRD306 - Vibration Velocity and Displacement
IRD306 is our Made in India Analog Vibration Meter. It comes in a rugged enclosure. It has a Battery Check for Low Battery Indication and it runs on 9V Rechargeable batteries. It is able to measure Vibration Amplitude in Velocity mm/s pk and Vibration Displacement in microns pk-pk. In a standard kit of IRD306 - we offer the following items and accessories:
- 1 x Vibration Meter IRD306
- 1 x Vibration Sensor IRD531 Velometer 25 mV/mm/sec
- 2 x Interconnecting Coiled cable for IRD306 and IRD531. 0.8 meters collapsed length and 3 meters extended length (1 Main and 1 Spare)
- 1 x 9" Stinger attachment for IRD531 Sensor to help reach hard-to-reach places
- 1 x 20kg pull strength magnetic mount attachment for IRD531 Sensor
- 2 x 9V Rechargeable battery
- 1 x Battery Charger
- 1 x Hard carrying case or Soft carrying case - as ordered

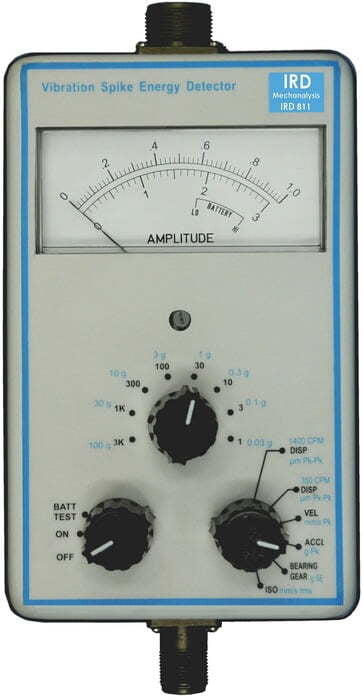

IRD811 - Vibration Amplitude and Bearing Condition
IRD811 is our Made in India Analog Vibration Meter cum Spike Energy™ Detector. It is able to measure Vibration Acceleration in g pk, Vibration Velocity in mm/sec pk as well as mm/sec RMS and Vibration Displacement in microns pk-pk. For Displacement measurement it has filtered 1400 CPM mode and normal 350 CPM. The 1400 CPM mode acts as a High Pass Filter and does not allow Displacement signals below 1400 CPM to creep into the measurement - this is particularly useful during offshore and marine vibration measurements. It measures Spike Energy™ (gSE) that helps inform Anti Friction (Rolling Element) bearing condition and helps in planning for bearing maintenance. It has Battery Check function for low battery indication and runs on 9V battery. In a standard kit of IRD811 - we offer the following items and accessories:
- 1 x Vibration Meter cum Spike Energy™ detector IRD811
- 1 x Vibration Sensor IRD521 Accelerometer 100 mV/g
- 2 x Interconnecting Coiled cable for IRD811 and IRD521. 0.8 meters collapsed length and 3 meters extended length (1 Main and 1 Spare)
- 1 x 9" Stinger attachment for IRD521 Sensor to help reach hard-to-reach places
- 1 x 20kg pull strength magnetic mount attachment for IRD521 Sensor
- 3 x 9V Rechargeable battery
- 1 x Battery Charger
- 1 x Hard carrying case or Soft carrying case - as ordered
We are authorised Distributors for B&D Industrial make Vibration Analyzers and Balancers - https://vibepro.com/monitoring-solutions/vibration-analysis/

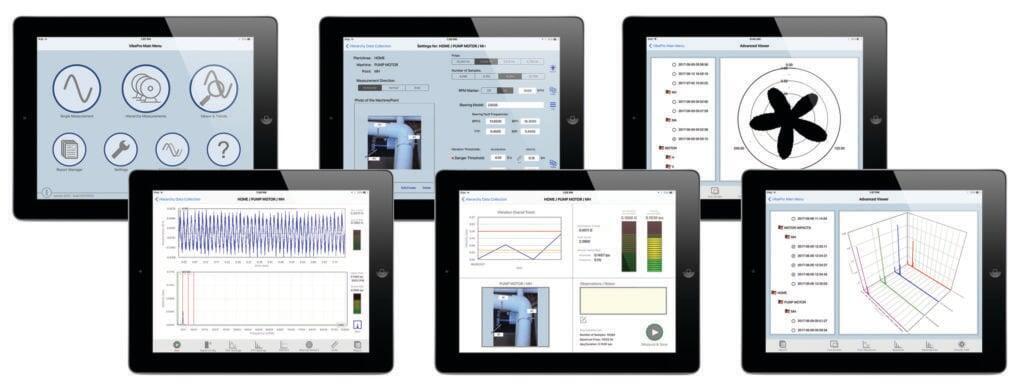

These instruments allow user to perform Vibration Analysis and Dynamic Balancing. The entire capabilities of the instruments are:

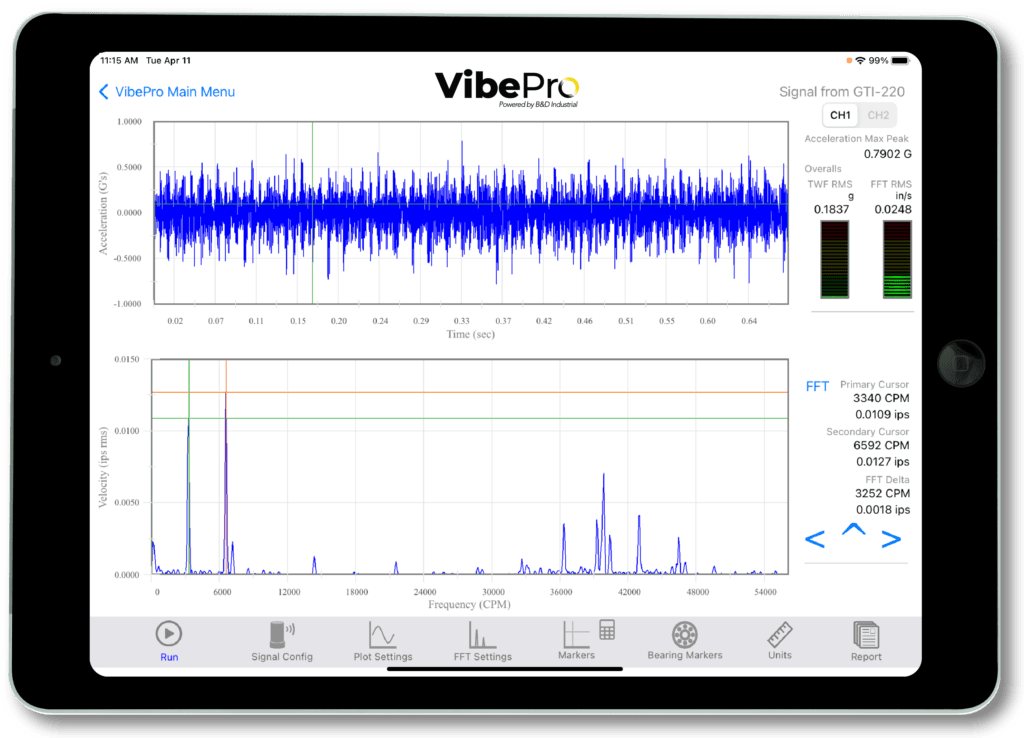

- Vibration Time Waveform and Spectrum Capture
- Route Based Data Collection
- Viewing of Data on PC
- Cross Channel Phase Measurement
- Bump Test for Natural Frequency Detection
- Single Plane and Two Plane Dynamic Balancing
- Bearing Lubrication Analysis
- Thermal Imaging

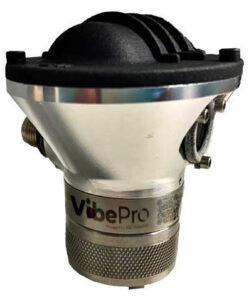

- Wired Sensor variant as well as Wireless Sensor variant
