Gap Monitoring via Rack Mounted API 670 Compliant IRD8800 Machinery Protection System (MPS)
Radial, Axial and Air Gap | API670 Compliance | 3 Years Warranty
Introduction

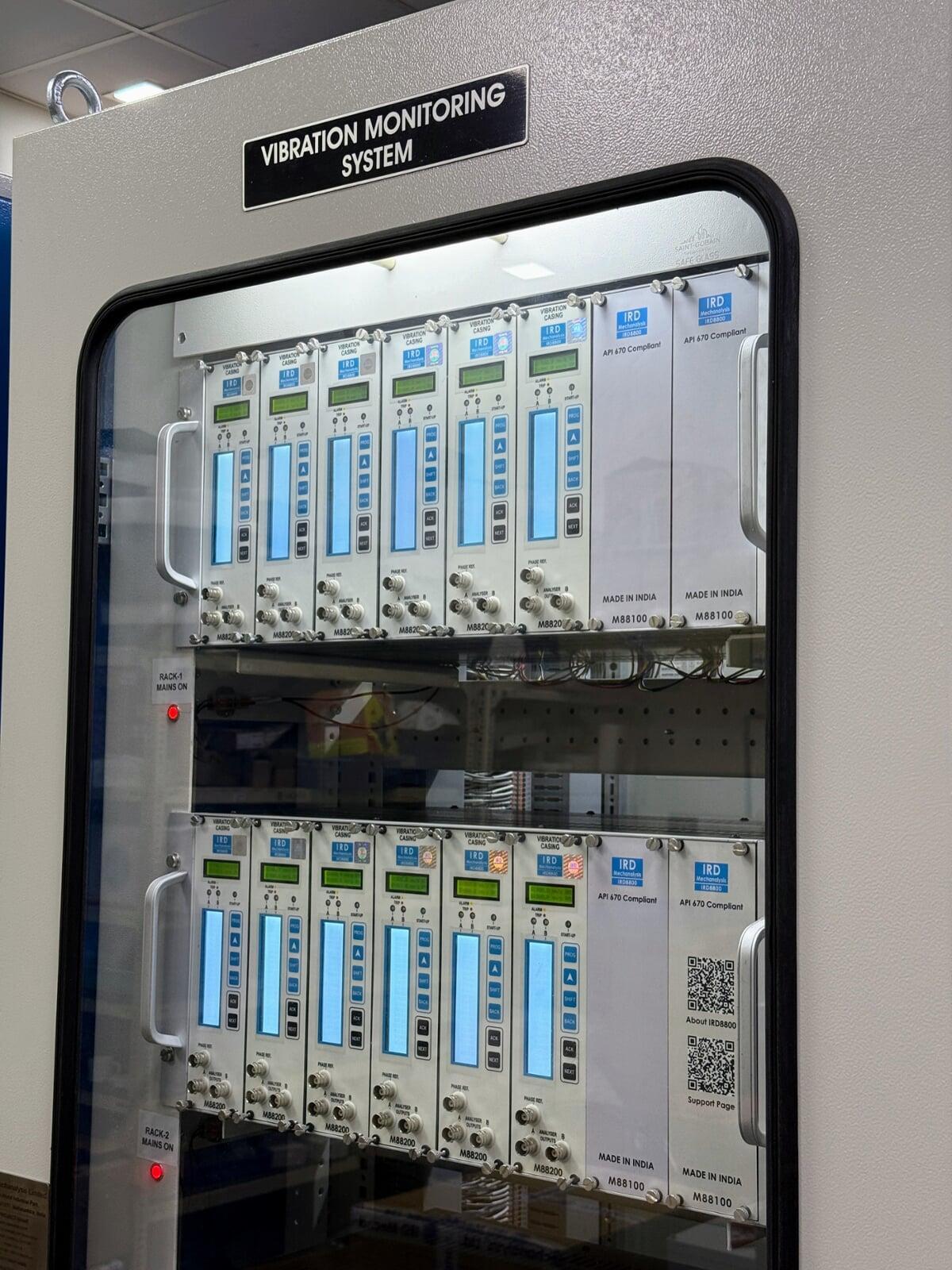

IRD Mechanalysis Limited has been a Condition Monitoring Solutions provider to the World since 1962. Also commonly referred to as 'IRD' - the Solutions range from Portable Instruments to Online Systems for Vibration, Temperature, Speed, Gap, Bearing and Turbine Monitoring. IRD provides API670 Compliant Rack Based Machinery Protection System IRD8800 that can do 24x7, 365 days Gap Monitoring
Salient Features
- Rack Based Machinery Protection System
- Hot-Swappable Modules
- Password Protected Programming via Front Keypad
- Alphanumeric as well as Bargraph Display
- 4-20mA output, phase reference output, buffered output, MODBUS RTU/MODBUS TCP Output
- Configurable Alarm and Trip Relay Contacts for Machinery Protection
Sensor used for Gap Monitoring
Non-Contact Eddy Current Based Sensor
Non-Contact Eddy Current Based Sensors can be used for Radial and Axial Gap Monitoring. These Sensors comprise of a Probe, Extension Cable and Driver Unit. The Probe is either Forward or Reverse mounted on the machine and locked at -10V DC (the middle position or ZERO position), the extension cable allows the signal to reach the Driver Unit which can be Plate mounted or Din Rail mounted within a Junction Box. The Driver unit provides a DC Output proportional to Gap. The Tip size determines the Sensitivity of the Driver Unit with common values being 8V/mm for 8mm tip dia probes. For such 8V/mm sensitivity - M88300 Gap Module can sense +/- 1.00 mm Gap
