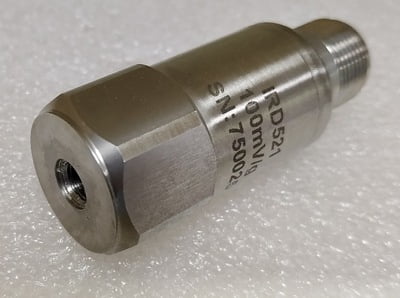

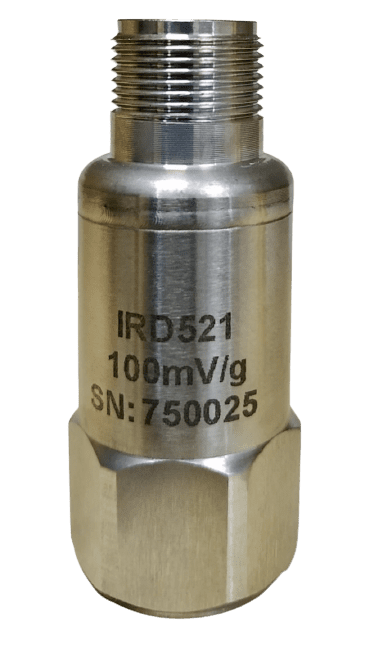

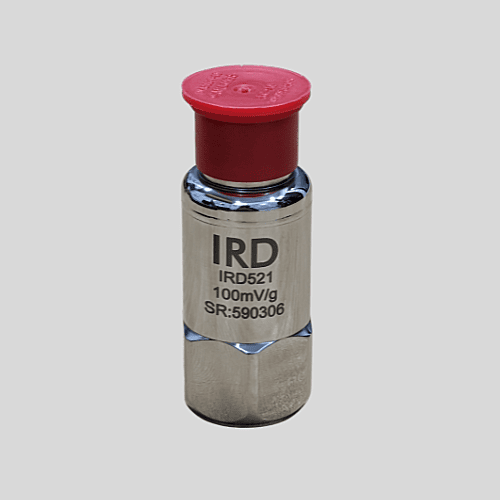

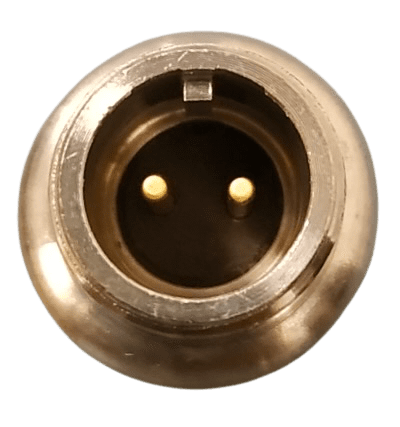

IRD521 (521) - Industrial Vibration Sensor (Accelerometer), 100 mV/g, 2 Pin MS, 1/4"-28 UNF Female Thread

₹13,521.00
IRD521 - General Purpose Industrial Grade Vibration Sensor with Voltage Output proportional to Vibration Acceleration
Add to Cart
Specifications
Technical Perfomance
  • Mounted Base Resonance (nominal)
    22 kHz
  • Sensitivity
    100 mV/g
  • Frequency Response
    2 Hz to 10 kHz +/- 5%
  • Isolation
    Base Isolated
  • Range
    +/- 80g
  • Transverse Sensitivity
    Less than 5%
Electrical
  • Electrical Noise
    0.1mg max
  • Current Range/Constant Current Excitation
    0.5mA to 8mA
  • Bias Output Voltage
    10-12 Volts DC
  • Settling Time
    2 seconds
  • Output Impedance
    200 Ohms max
  • Case Isolation
    More than 10 to the power 8 at 500 Volts
Mechanical
  • Case Material
    Stainless Steel
  • Sensing Element/Construction
    PZT/Compression
  • Mounting Torque
    8 Nm
  • Weight
    125 gms (nominal)
  • Mounting Thread
    1/4"-28 UNF Female
Environmental
  • Operating Temperature Range
    -55 to 140 Deg C
  • Sealing
    IP68
  • Maximum Shock
    5000g
  • EMC
    EN61326-1:2013
