Cables

Which cable do I need?

Every IRD cable assembly is factory terminated and tested in Thane, and carries a 3-month warranty. Choose in four steps:

  1. Sensor connector: 2-pin MIL (IRD521, IRD522, IRD531, IRD544, IRD591, IRD592), 4-pin (IRD570, IRD570V, IRD5420; on the IRD5420 only 2 pins are active, so a 2-core or 4-core cable works) or 4-pin M12 (triaxial).
  2. Environment: for hot or oily surfaces, Teflon cable in SS conduit (up to 260 °C). For general plant runs, FRLS in GI conduit. For heavy protection, FRLS in SS conduit. In cable trays, FRLS. For exposed or buried runs, armoured.
  3. Far end: spade lugs for a junction box or monitor terminals, BNC for analysers.
  4. Length: measure from the sensor to the JB and add 10%. Other lengths are available on request.
Sensor / instrumentRecommended cable

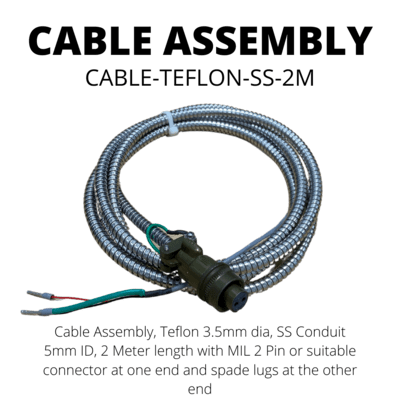

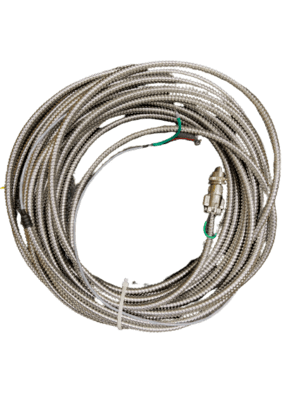

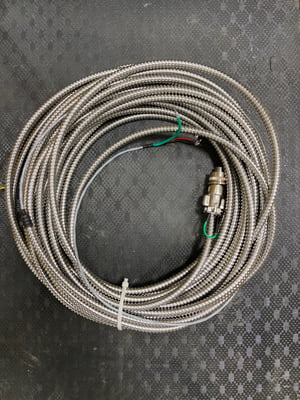

2-pin MIL sensors, high temperatureTeflon in SS conduit, 5–25 m (right-angle option)

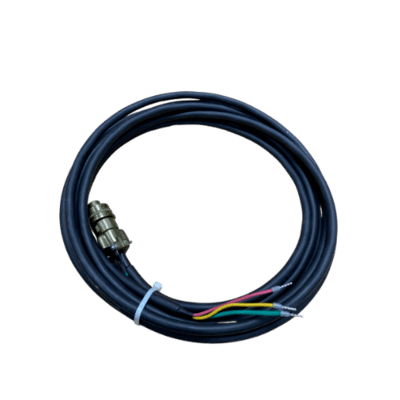

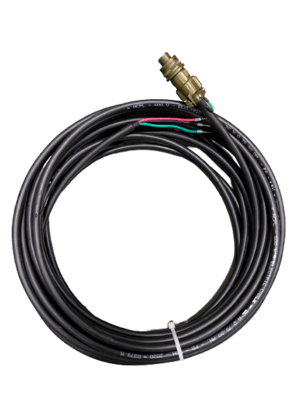

2-pin MIL sensors, general plantFRLS in GI or SS conduit, FRLS, or armoured, 5–25 m
IRD570 / IRD570V / IRD54204-pin cable in SS conduit, 9.5 mm ID, 5 or 10 m

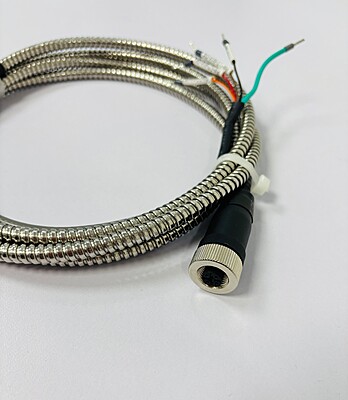

Triaxial sensors4-pin M12: spade lugs (10 m) or 3 × BNC (5 m)
IRD301 Lite, IRD306DP Plus, IRD811D ProCoiled cable, 2-pin MIL to 2-pin MRS
IRD202 EliteCoiled cable, 2-pin MIL to 3-pin MRS
IRD306, IRD306DP (TNC), IRD306DI, IRD811, IRD811D (9-pin)Model-specific coiled or 1.2–1.5 m straight cable

Need help choosing? Email sales@irdmech.com or WhatsApp +91-9082527331.

-
