Straight Cable for IRD306DP to IRD531 Sensor, 1.2 m
₹6,875.00

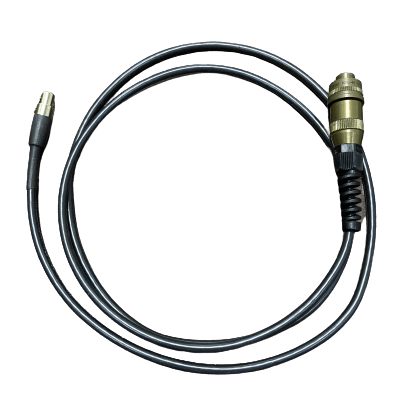

This cable is used to connect Vibration Meter IRD306DP to Vibration Sensor IRD531. It has 4 Pin Mini XLR (Female) connector at Meter end and 2 Pin MS connector at sensor end. The length of the cable is 1.2 meters. The cable is rubber insulated and shielded
Tags:
Product Details
Specifications
Straight Cable for IRD306DP to IRD531 Sensor, 1.2 m
Factory-terminated cable assembly made by IRD Mechanalysis (est. 1955) for IRD306DP with IRD531. Each assembly is built, continuity-tested and labelled at our Thane works, so it is ready to connect on arrival.
| Type | Straight, rubber insulated, shielded |
|---|---|
| Length | 1.2 m |
| Instrument end | TNC |
| Sensor end | 2-pin MIL |
Fits: IRD306DP with IRD531. Not sure which cable you need? See the cable selection guide.
Price: ₹6,875 + GST. Warranty: 3 months from dispatch.
Other lengths and custom assemblies are available on request. For project quantities, email sales@irdmech.com or WhatsApp +91-9082527331.
Technical Parameters
- Length1.2 meters
- Cable TypePTFE Silicon
- ConduitNo Conduit
- Connector Sensor EndMIL 5015 2 Way MS Socket Cable Connector
