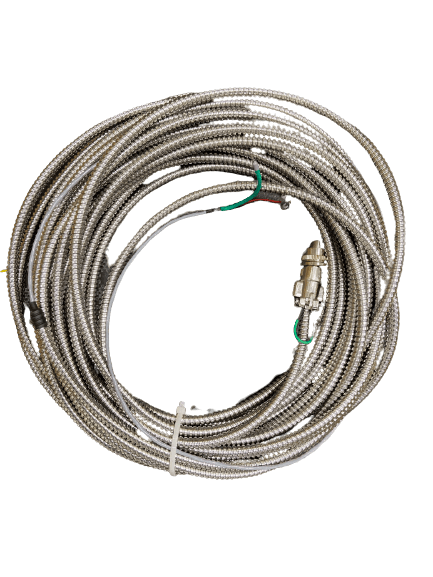

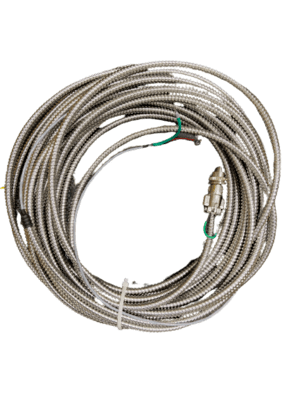

Teflon Sensor Cable in SS Conduit, 2-Pin MIL, 10 m

₹5,150.00 ₹5,500.00
This cable can be used to connect a Vibration Sensor to a Junction Box or to a Transmitter or to a Monitoring System.

Temperature withstand capability less than 260 deg C Connection: 2 Pin MS at sensor end and Spade Lugs at other end
Tags:
Add to Cart
IRD Teflon Sensor Cable in SS Conduit, 2-Pin MIL, 10 m – 2-pin MIL (MS3106) female
Product Details
Specifications

Teflon Sensor Cable in SS Conduit, 2-Pin MIL, 10 m

Factory-terminated cable assembly made by IRD Mechanalysis (est. 1955) for 2-pin MIL sensors (IRD521/522/531/544/591/592). Each assembly is built, continuity-tested and labelled at our Thane works, so it is ready to connect on arrival.

CableTeflon (PTFE) shielded, 3.5 mm dia
ProtectionSS304 flexible conduit, 5 mm ID
Sensor-end connector2-pin MIL (MS3106) female
Free endSpade lugs (to local JB)
Length10 m
Cable temperature ratingup to 260 °C

Fits: 2-pin MIL sensors (IRD521/522/531/544/591/592). Not sure which cable you need? See the cable selection guide.

Price: ₹5,150 + GST. Warranty: 3 months from dispatch.

Other lengths and custom assemblies are available on request. For project quantities, email sales@irdmech.com or WhatsApp +91-9082527331.

Technical Parameters
  • Length
    10 meters
  • Cable Type
    Teflon 3.5 mm dia
  • Conduit
    SS 5 mm ID
  • Connector Sensor End
    MIL 5015 2 Way MS Socket Cable Connector
  • Connector Termination End
    No Connector. Spade Lugs at Free End
