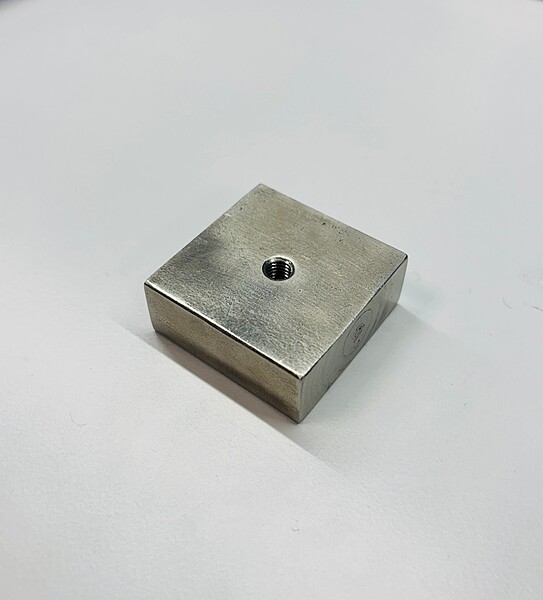

Sensor Mounting Pad SS304, 40×40×16 mm, M8 x 1.25 Tapped
₹1,000.00 ₹1,200.00
Product Details
A stainless steel ss304 mounting pad, 40 × 40 × 16 mm, tapped M8 x 1.25 to take a mounting stud and vibration sensor.
Specifications
| Material | Stainless steel SS304 |
|---|---|
| Size | 40 × 40 × 16 mm |
| Tapped thread | M8 x 1.25 (tapped through the depth) |
| SKU | SS-PAD-M8-1.25 |
All IRD vibration sensors have a 1/4"-28 UNF female mount: use a mounting stud with a 1/4"-28 UNF end and a matching M8 x 1.25 end. Compatible sensors: accelerometers, velometers and loop-powered 4–20 mA sensors – all have a 1/4"-28 UNF female mount. IRD vibration sensors carry a 3-year warranty.
