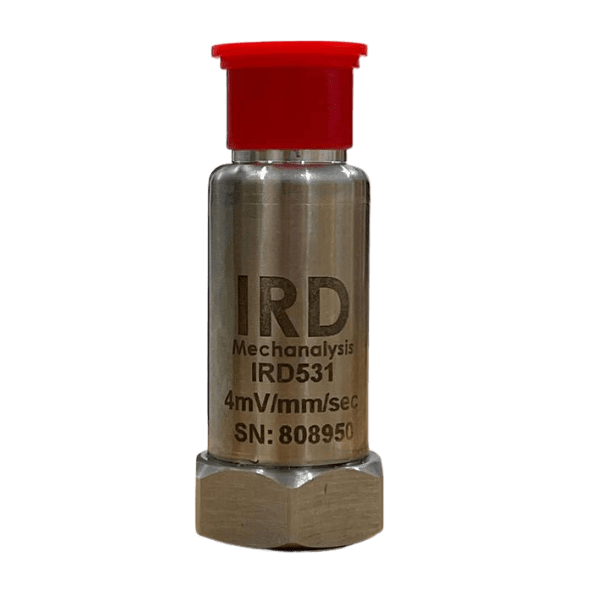

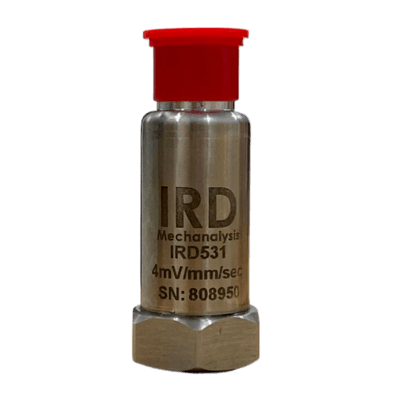

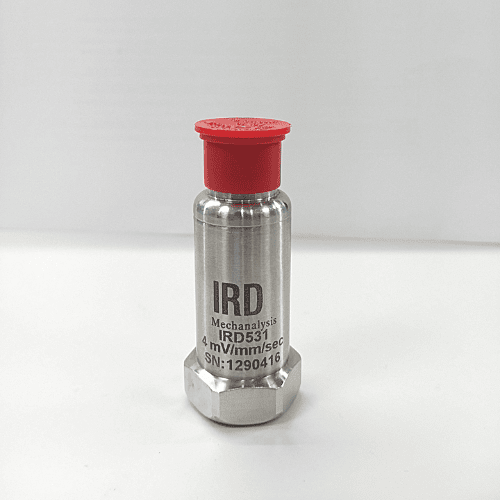

IRD531 (531) - Industrial Vibration Sensor, 4mV/mm/s, 2 Pin MS, 1/4"-28UNF Female

₹13,531.00

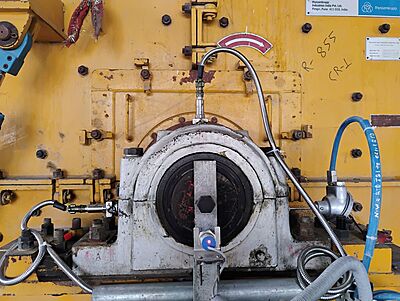

IRD531 is a Piezo Velocity Sensor that provides Dynamic AC output (mV) proportional to Vibration Velocity. It is used with Continuous Vibration Monitoring Systems. It is ideal for Monitoring Vibrations of Pumps, Motors, Fans, etc.
Add to Cart
IRD531 - Industrial Vibration Sensor, 4mV/mm/s, 2 Pin MS, 1/4"-28UNF Female
Product Details
Specifications
Which Portable Instruments of IRD Mechanalysis can work with IRD531?

IRD306DP - Digital Vibration Meter which reads Vibration in Velocity and Displacement

Which Online Systems of IRD Mechanalysis can work with IRD531?

IRD7400 - Loop Powered Vibration Transmitter
IRD7100 - Machinery Protection Transmitter
IRD8800 - API 670 Compliant Machinery Protection Monitor

Can I measure Vibration Acceleration using IRD531?

No, Vibration Acceleration cannot be measured using IRD531. You can only measure Vibration Velocity or Vibration Displacement using IRD531. If you wish to measure Vibration Acceleration, then please look at IRD521 or other Accelerometers

How frequently IRD531 needs to be Calibrated?

IRD531 is hermetically sealed and is therefore having an Ingress Protection of IP68. Once made in the factory, it cannot be altered or recalibrated. It can only be checked for proper calibration. ISO recommends checking Calibration of Test and Measurement Apparatus such as Vibration Sensors at a frequency interval of 1 year
Technical Perfomance
  • Mounted Base Resonance (nominal)
    22 kHz
  • Sensitivity
    4 mV/mm/sec
  • Frequency Response
    2 Hz to 6 kHz
  • Isolation
    Base Isolated
  • Range
    1000 mm/s pk
  • Transverse Sensitivity
    Less than 5%
Electrical
  • Electrical Noise
    0.1mg max
  • Current Range/Constant Current Excitation
    0.5mA to 8mA
  • Bias Output Voltage
    10-12 Volts DC
  • Settling Time
    2 seconds
  • Output Impedance
    200 Ohms max
  • Case Isolation
    More than 10 to the power 8 at 500 Volts
Mechanical
  • Case Material
    Stainless Steel
  • Sensing Element/Construction
    PZT/Compression
  • Mounting Torque
    8 Nm
  • Weight
    125 gms (nominal)
  • Mounting Thread
    1/4"-28 UNF Female
Environmental
  • Operating Temperature Range
    -55 to 140 Deg C
  • Sealing
    IP68
  • Maximum Shock
    5000g
  • EMC
    EN61326-1:2013
