IRD401 - Eddy Current Probe Set - Probe, Extension Cable and Driver, 8V/mm, -24V Supply, Panel Mount, 8mm tip dia, M10x1 body, 9m system length
₹125,100.00

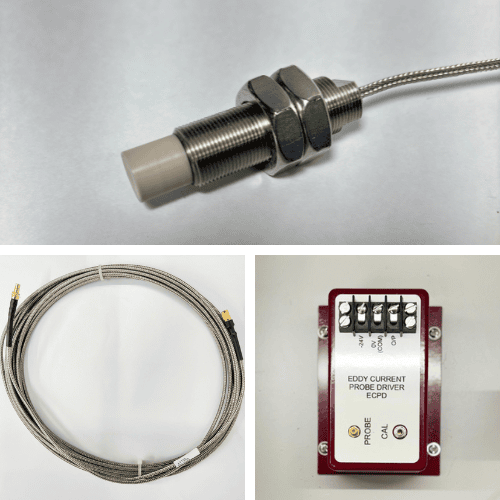

IRD401 is a Non-Contact type Eddy Current based Proximity Sensor. With the right instrumentation - it can be used for Relative Shaft Vibration, Axial Gap, Speed, Eccentricity and more measurements. It has 3 elements - the probe or sensor, the extension cable and the probe driver. These 3 elements always come as matched and calibrated trios. These come tuned for total length of either 5 meters or 9 meters between sensor and probe driver.
Download the brochure of IRD401 and use the ordering guide to chose the aspects of IRD401 to your choice and requirements. The price shown here is for the stock option that has 8mm tip dia, 60mm body length, 50mm threaded length, M10x1 Body Size, 1 meter integral cable length, 8 meters extension cable length, 8mV/um sensitivity probe driver working on -24 V DC Power. The price will change on the final part number chosen from ordering guide. Contact sales@irdmech.com for price and bulk discounts
