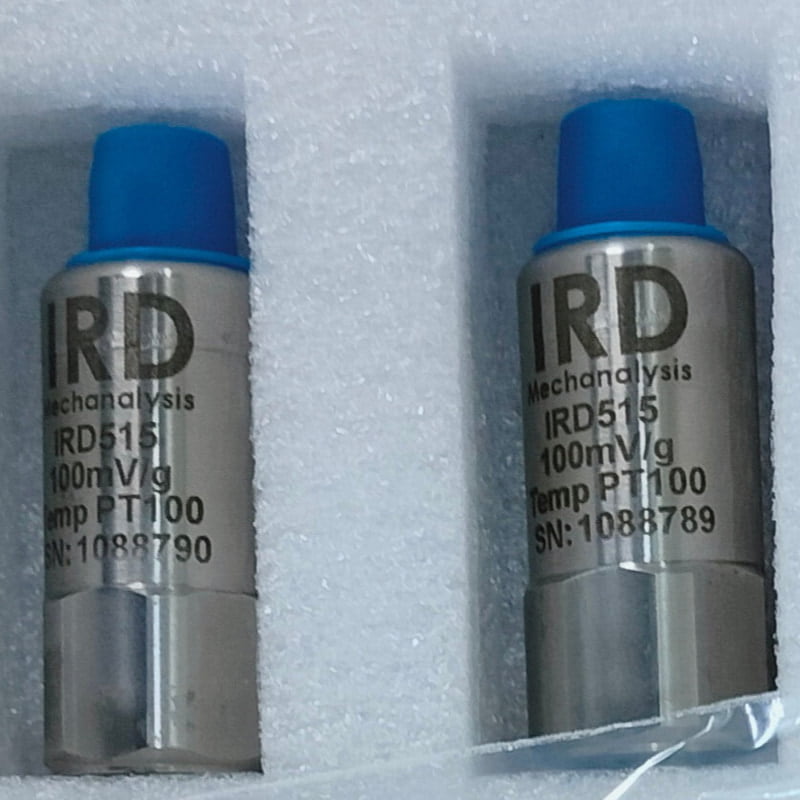

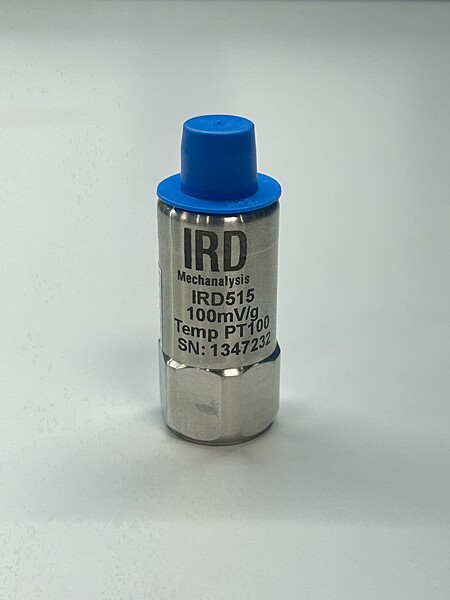

IRD515 Dual Output Vibration and Temperature Sensor, 4 Pin M12 Connector, 1/4"-28 UNF Female Mount

₹24,750.00 ₹29,700.00

IRD515 is a dual output sensor that gives 100 mV/g AC acceleration and PT100 temperature output through a single top exit 4 pin M12 connector.

Add to Cart
Product Details

IRD515 measures vibration and bearing temperature at one mounting point. It provides a 100 mV/g AC acceleration signal and a PT100 (100 Ohms) temperature output through one top exit 4 pin M12 connector, so a single sensor and cable serve both measurements.

Key features

  • Dual output: 100 mV/g vibration and PT100 temperature
  • Top exit 4 pin M12 connector
  • Range +/- 80 g; frequency response 2 Hz to 10 kHz (+/- 5%)
  • Stainless Steel SS316 case, PZT compression element, base isolated
  • IP67 sealing; operating temperature -55 to 140 °C
  • 1/4"-28 UNF female mounting thread

Warranty: 3 years

Technical Performance

Mounted Base Resonance30 kHz
Sensitivity100 mV/g +/- 10% (nominal, 80 Hz at 22 °C)
Frequency Response2 Hz (120 cpm) to 10 kHz (600 kcpm) ± 5%
1.5 Hz (90 cpm) to 12 kHz (720 kcpm) ± 10%
0.8 Hz (48 cpm) to 15 kHz (900 kcpm) ± 3 dB
IsolationBase Isolated
Range+/- 80 g
Temperature OutputPT100 (100 Ohms)
Transverse SensitivityLess than 5%

Mechanical

Case MaterialStainless Steel SS316
Sensing Element/ConstructionPZT/Compression
Mounting Torque8 Nm
Weight106 grams (nominal), body only
ConnectorTop Exit 4 Pin M12 Connector
Mounting Thread1/4"-28 UNF Female

Electrical

Excitation Voltage18-30 V DC
Electrical Noise0.1 mg max
Current Range0.5 mA to 8 mA
Bias Voltage10-12 V DC
Settling Time2 seconds
Output Impedance200 Ohms max
Case Isolation>10^8 Ohms at 500 V

Environmental

Operating Temperature Range-55 to 140 °C
SealingIP67
Maximum Shock5000 g
EMCEN61326-1:2013

Full data sheet: IRD Help Center data sheet
