IRD8800, M88950 - Temperature, 4Ch PT100 Input
The M88950 monitors temperature on four channels from 3-wire PT100 RTD sensors, with a full scale selectable anywhere within −100 to +500 °C. It provides a galvanically isolated 4-20 mA output and 2 sets of potential-free relay contacts per channel, plus RS-485 Modbus RTU (Modbus TCP available on request). Spare card for the IRD8800 online monitoring system.
M88950 – 4-Channel PT100 Temperature Module (IRD8800 Series)

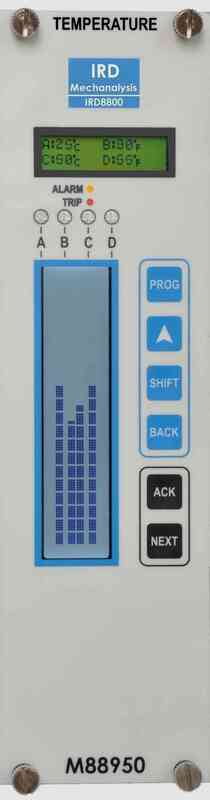

The M88950 is a four-channel temperature monitoring and protection module of the IRD8800 Series. It accepts four PT100 RTD sensors (or IRD515 vibration-cum-temperature sensors), is hot-swappable and accepts redundant power input.
Key features
- 4 × 3-wire PT100 RTD inputs
- °C or °F, full scale anywhere within −100 to +500 °C
- Galvanically isolated 4-20 mA; 2.8 mA with IPLO/IPHI on under/over range
- 2 sets of potential-free relay contacts per channel
- RS-485 Modbus RTU (Modbus TCP on request)
- 16×2 LCD plus 4-bar LCD bar graph; 6-key membrane keypad; non-volatile memory
Specifications
| Parameter | Value |
|---|---|
| Inputs | 4 × PT100 RTD, 3-wire (or IRD515) |
| Range | −100 to +500 °C / −100 to +932 °F |
| 4-20 mA | Galvanically isolated, proportional to full scale; 2.8 mA on IPLO/IPHI |
| Relays | 2 sets per channel, 5 A @ 230 V AC resistive |
| Modbus | RS-485 Modbus RTU, 57600 baud default, parity none. Modbus TCP also available on request |
| Displays | 16×2 LCD; 20×2 bar-graph LCD (4 bars) |
| Mounting | IRD8800 rack, hot-swappable |
Documents
Part of the IRD8800 Series API 670 machinery protection system, made in India by IRD Mechanalysis. Online-system warranty: 3 years. More about IRD8800
