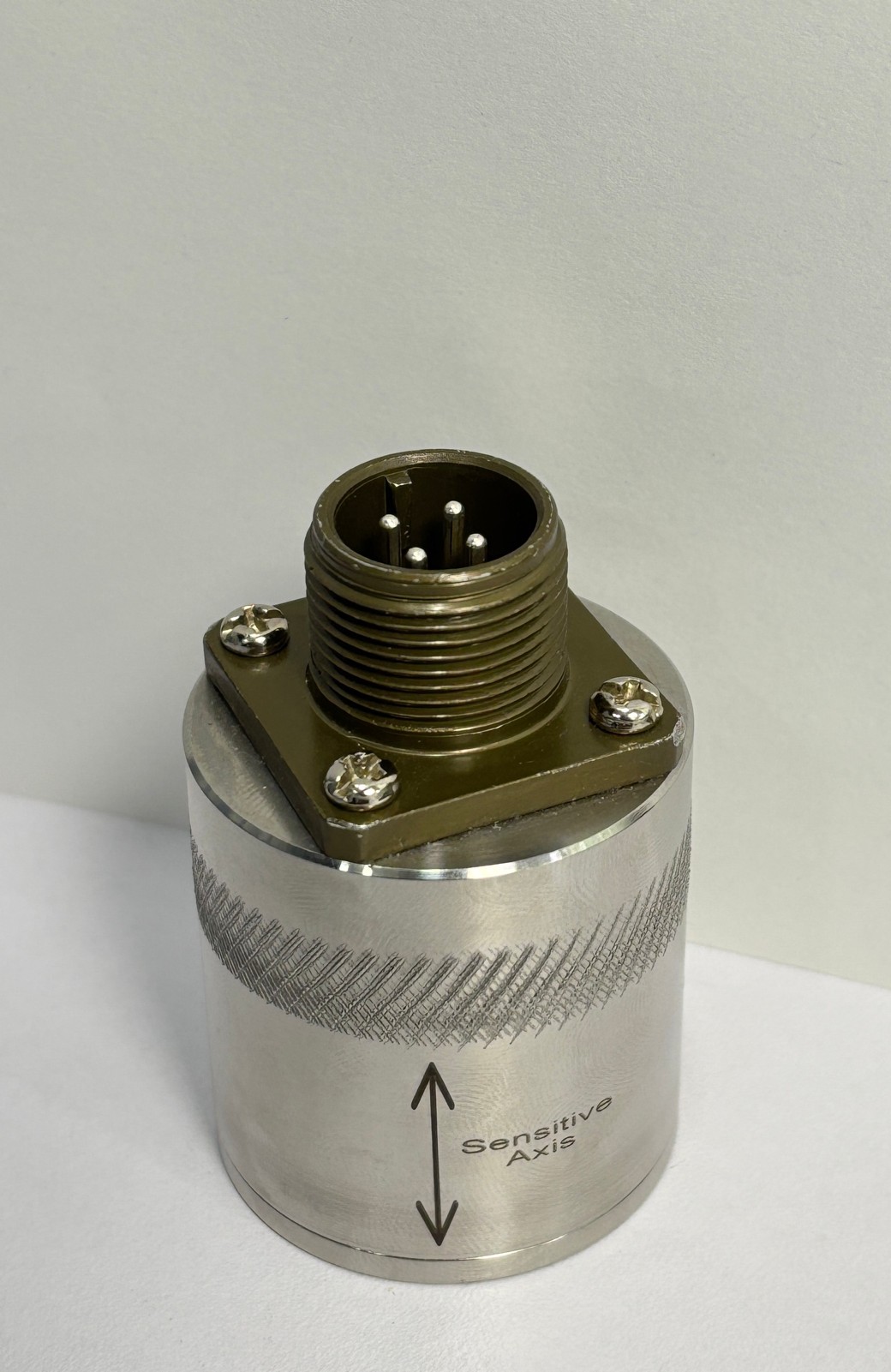

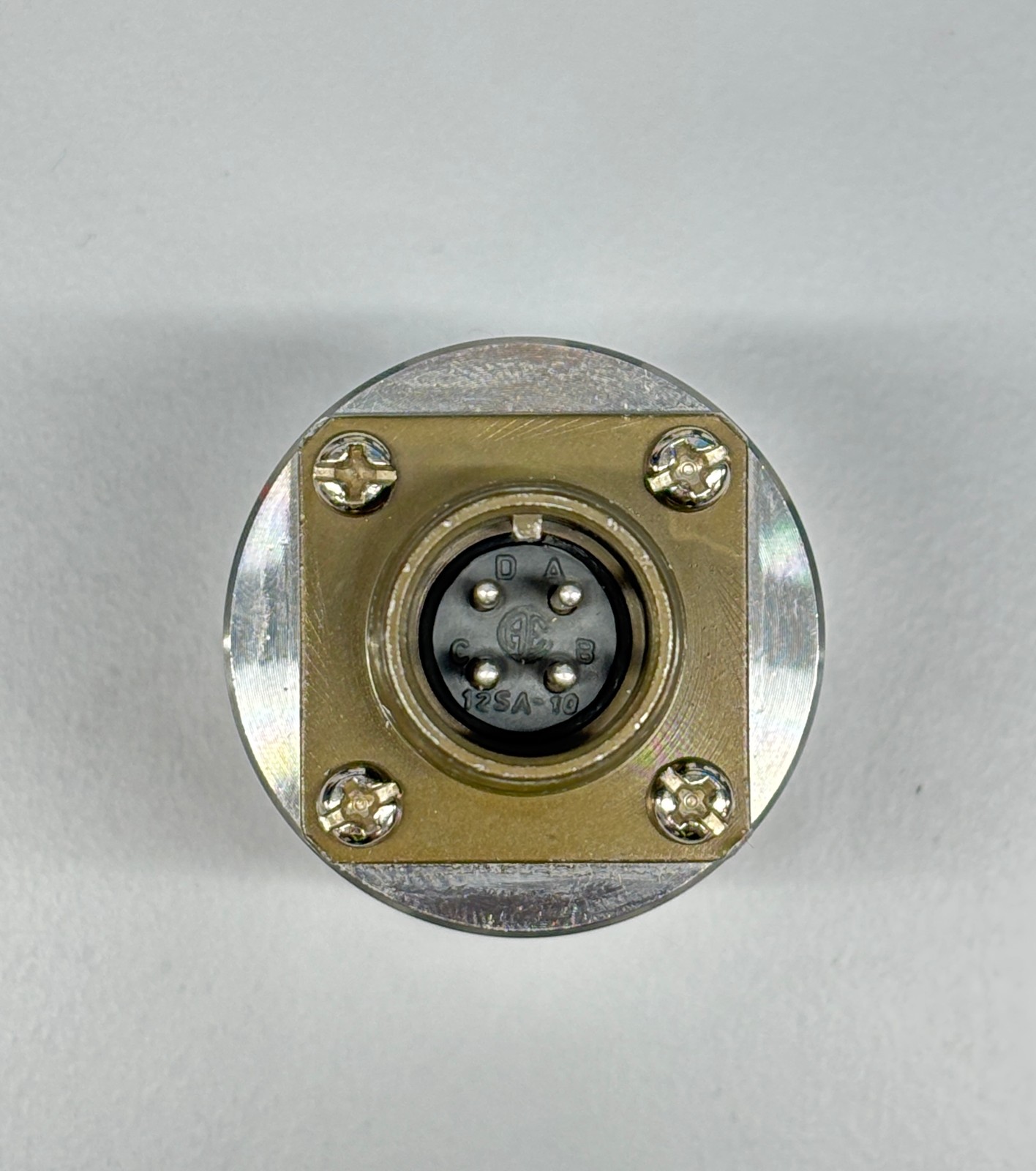

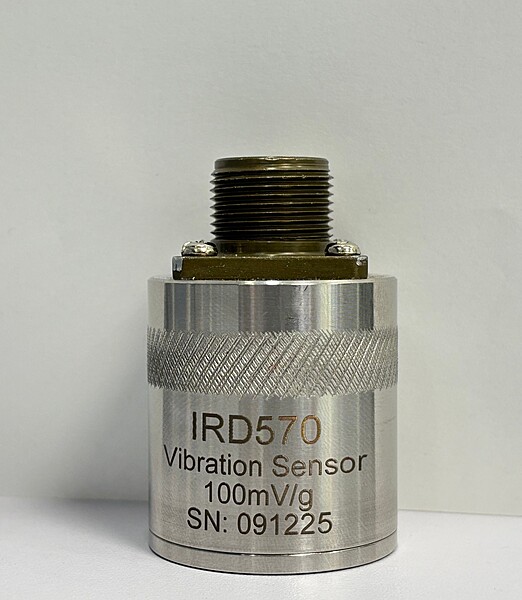

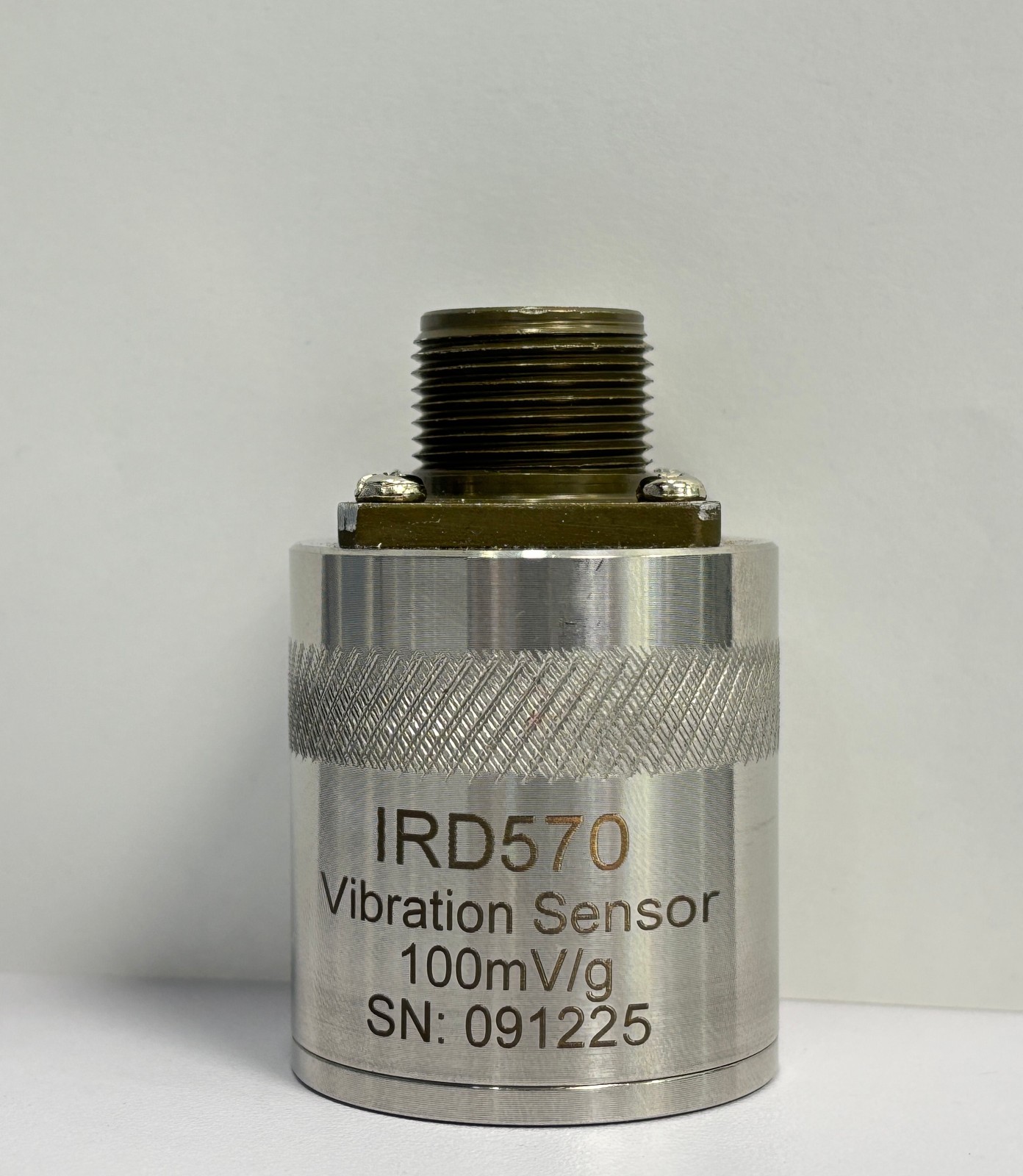

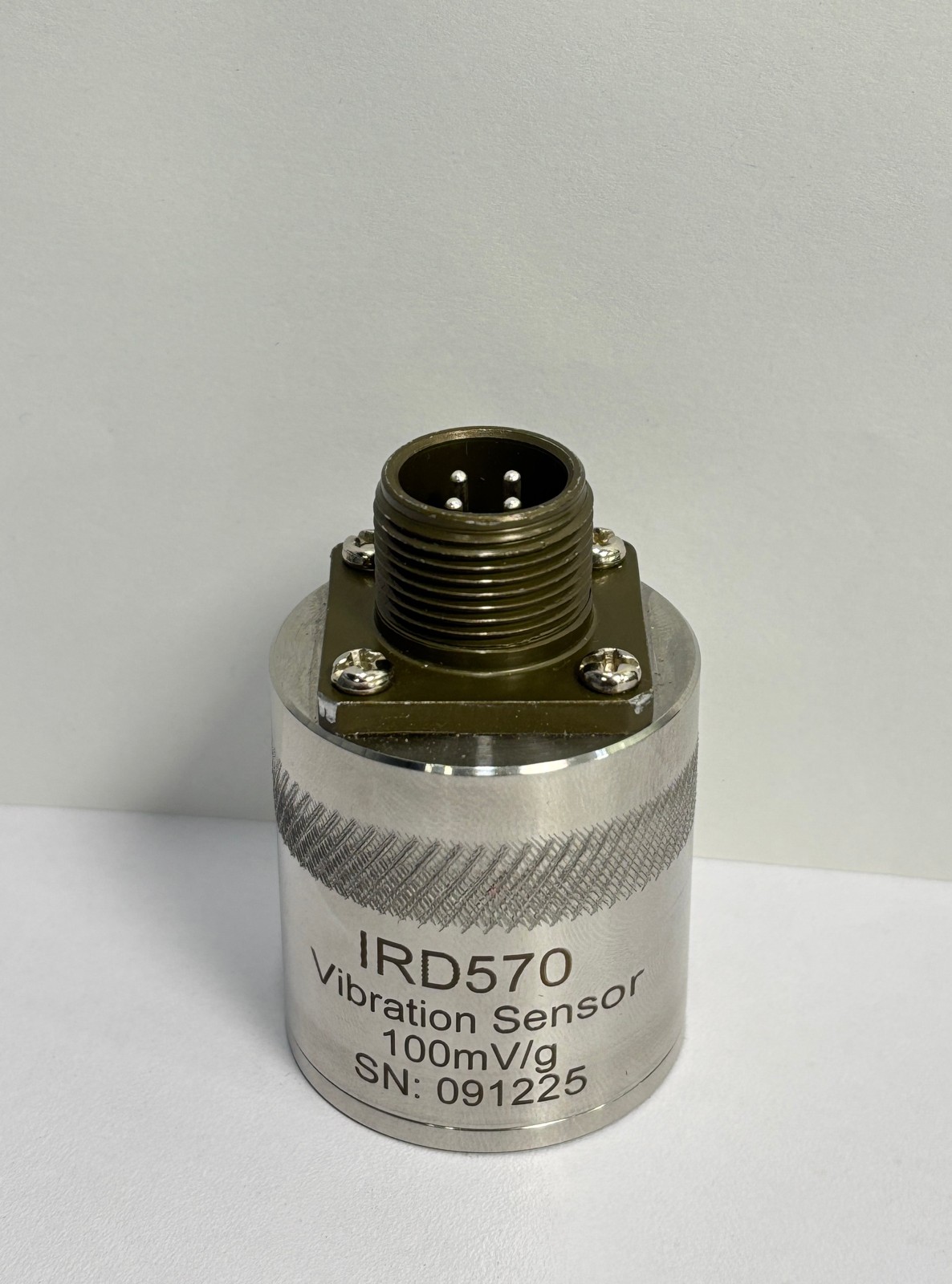

IRD570 Vibration Sensor, IEPE 4 Pin Accelerometer 100 mV/g, 1/4"-28UNF Female Thread
₹11,250.00 ₹13,500.00
IRD570 is a 4 Pin IEPE Accelerometer that is API670 Compliant. It provides 100mV/g Acceleration Output. It has a Corrosion Resistance Stainless Steel Body. It has been Type Tested and has been found suitable for withstanding:
- Cold Test as per IEC 60068-2-1
- Dry Heat Test as per IEC 60068-2-2
- Damp Heat Test as per IEC 60068-2-30
- Shock Test as per IEC 60068-2-27
- Radiated Susceptibility Test as per IEC 61000-4-3
- Electrostatic Discharge Test as per IEC 61000-4-2
- Surge Test as per IEC 61000-4-5
- IP Rating Test as per IEC 60529
- Corrosion Resistance - Salt Spray Test as per ISO 9227:2017
IRD570 can be used with Online Vibration Monitoring Systems like IRD8800, IRD7100 and IRD7200. It can also be used with Third Party Vibration Monitoring Systems of other makes.
Data Sheet of IRD570 Vibration Sensor
