IRD8800 (8800), M88900 (88900) - Speed Module, 2Ch Eddy current pickup input, API Standard 670 Compliant, Input: 24 V DC

₹119,625.00 ₹143,550.00

The M88900 monitors machine speed on two channels from non-contact eddy current sensors, a laser tachometer or a TTL pulse input. It provides a 4-20 mA output, relays including a TX Fail relay, and RS-485 Modbus RTU (Modbus TCP available on request). Spare card for the IRD8800 online monitoring system.

Add to Cart
Product Details

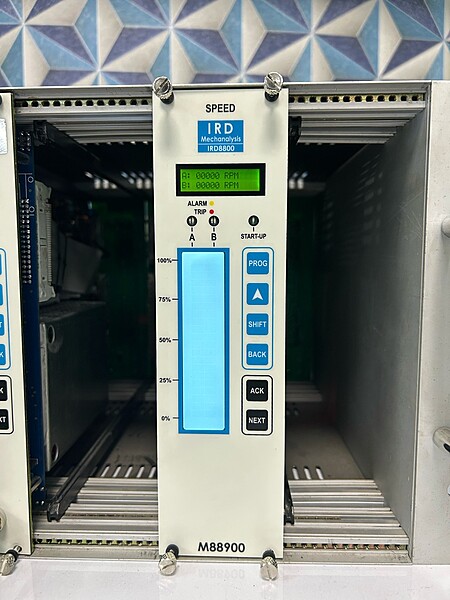

M88900 – Speed Monitoring Module (IRD8800 Series)

The M88900 is the speed monitoring module of the API 670 compliant IRD8800 Series. It senses speed with non-contact eddy current sensors or a laser tachometer, and also works from a TTL pulse input.

Key features

  • 2 speed channels
  • Eddy current pickup, laser tachometer or TTL pulse input
  • RS-485 Modbus RTU (Modbus TCP on request)
  • TX Fail relay

Specifications

ParameterValue
Channels2
InputEddy current sensor, laser tachometer, or TTL pulse
TX Fail relay1 DPDT potential-free contact per module, 8 A @ 230 V AC / 24 V DC; alarm/trip inhibited and 4-20 mA pulled to 2.8 mA on TX Fail
ModbusRS-485 Modbus RTU; Modbus TCP also available on request
Supply24 V DC

Documents

Part of the IRD8800 Series API 670 machinery protection system, made in India by IRD Mechanalysis. Online-system warranty: 3 years. More about IRD8800
