IRD8800 (8800), M88210 (88210) - Relative Shaft Vibration Module, 2Ch ECP Input and 1Ch Key Phasor Input, API Standard 670 Compliant, 24 V DC Supply Input

₹119,625.00 ₹143,550.00

The M88210 monitors relative shaft vibration on two channels from non-contact eddy current probe systems (8 mV/µm or 4 mV/µm), with one keyphasor input that also gives RPM indication, and it powers the probe drivers. It provides 4-20 mA output, buffered output, alarm and trip relays plus a TX Fail relay, and RS-485 Modbus RTU (Modbus TCP available on request). Spare card for the IRD8800 online monitoring system.

Add to Cart
Product Details

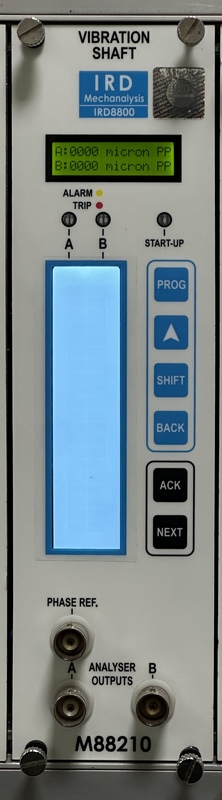

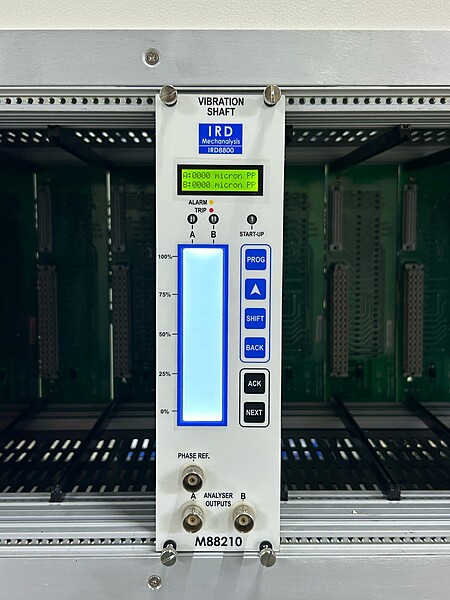

M88210 – Relative Shaft Vibration Module (IRD8800 Series)

The M88210 monitors relative shaft vibration on two channels from non-contact eddy current probe systems and takes a phase-reference input (laser or eddy current), from which it also shows RPM. It powers the probe drivers; the driver supply (−24 V or +24 V DC) is specified when ordering.

Key features

  • 2 eddy current probe channels + 1 keyphasor input with RPM indication
  • Supplies power to probe drivers (−24 V or +24 V DC, specified at order)
  • Sensitivity 8 mV/µm (fine-tune 6.400–9.600) or 4 mV/µm (3.200–4.800) for pair calibration
  • Front-keypad programming of full scale, units, sensitivity, alarm and trip set points
  • Alphanumeric and bar-graph display; TX Fail relay

Specifications

ParameterValue
Channels2 shaft vibration + 1 keyphasor
InputEddy current probe + extension cable + driver
Sensitivity8 mV/µm (6.400–9.600) or 4 mV/µm (3.200–4.800)
Driver supply−24 V or +24 V DC (factory set; jumper change only with IRD assistance)
TX Fail relay1 DPDT potential-free contact per module, 8 A @ 230 V AC / 24 V DC; alarm/trip inhibited and 4-20 mA pulled to 2.8 mA on TX Fail
Outputs4-20 mA, buffered output, alarm and trip relays
ModbusRS-485 Modbus RTU; Modbus TCP also available on request
Supply24 V DC
StandardAPI 670 compliant

Documents

Part of the IRD8800 Series API 670 machinery protection system, made in India by IRD Mechanalysis. Online-system warranty: 3 years. More about IRD8800
