IRD8800 (8800), M88280 (88280) - Generator End Winding Vibration Module, 2Ch Vibration Input, API Standard 670 Compliant, Input: 24 V DC
The M88280 monitors generator and exciter end winding vibration on two channels, from charge-output sensors via a charge amplifier or from fibre-optic sensors, and shows overall and digitally filtered vibration levels. It provides 4-20 mA output, buffered output, alarm and trip relays per channel plus a TX Fail relay, and RS-485 Modbus RTU (Modbus TCP available on request). Spare card for the IRD8800 online monitoring system.

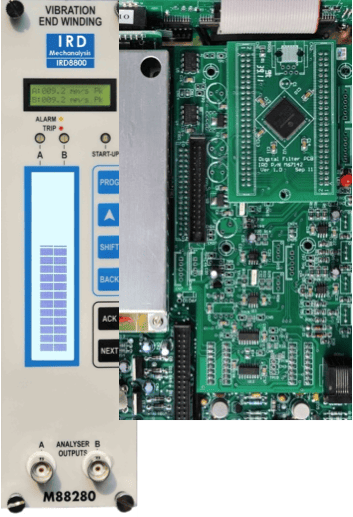

M88280 – Generator End Winding Vibration Module (IRD8800 Series)
The M88280 is designed for generator and/or exciter end winding vibration monitoring on large turbine generators. It accepts two vibration inputs from charge-output sensors via a charge amplifier, or fibre-optic sensors, and provides overall vibration levels together with digitally filtered levels.
Key features
- 2 vibration channels
- Charge-output sensor via charge amplifier, or fibre-optic sensor
- Overall (sigma) and digitally filtered levels
- Alphanumeric and bar-graph display; password-protected keypad menu
- 4-20 mA, buffered output, alarm and trip relays per channel
- TX Fail relay
Specifications
| Parameter | Value |
|---|---|
| Channels | 2 |
| Input | Charge amplifier output or fibre-optic sensor |
| Modbus | RS-485 Modbus RTU; Modbus TCP also available on request |
| TX Fail relay | 1 DPDT potential-free contact per module, 8 A @ 230 V AC / 24 V DC; alarm/trip inhibited and 4-20 mA pulled to 2.8 mA on TX Fail |
| Supply | 24 V DC |
| Standard | API 670 compliant |
Documents
Part of the IRD8800 Series API 670 machinery protection system, made in India by IRD Mechanalysis. Online-system warranty: 3 years. More about IRD8800
