IRD8800 (8800), M88250 (88250) Casing Vibration Module, 2Ch Velometer Input (mV/mm/sec) and 1Ch Key Phasor Input, API Standard 670 Compliant
The M88250 monitors casing vibration on two channels from velometers (mV/mm/s output), with one keyphasor input from an eddy current sensor or laser tachometer. It provides galvanically isolated 4-20 mA output, 2 alarm and 2 trip relay contacts per channel, buffered outputs and RS-485 Modbus RTU (Modbus TCP available on request), with a typical full scale of 150 mm/s pk. Spare card for the IRD8800 online monitoring system.
If you wish to know more about IRD8800 Series Machinery Protection Systems, then please click here

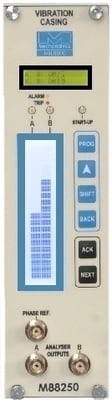

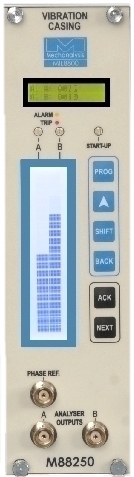

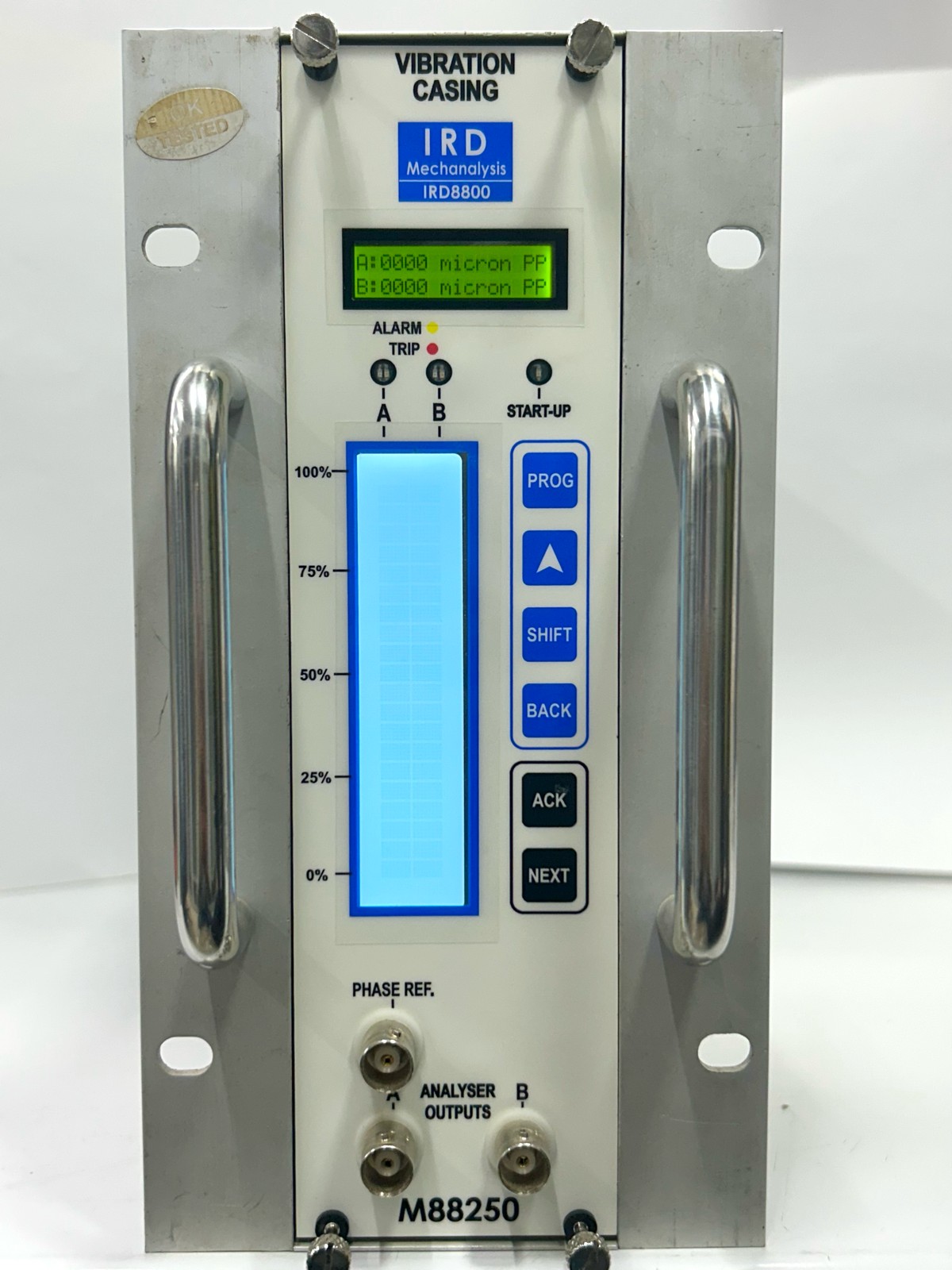

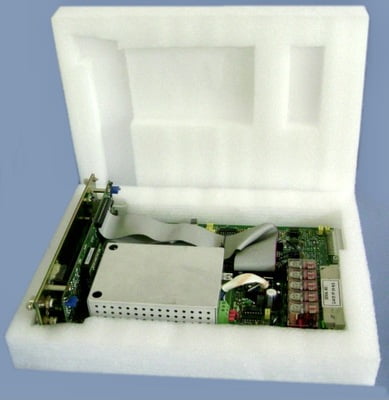

M88250 – Casing Vibration Module for Velometers (IRD8800 Series)
The M88250 is the IRD8800 casing vibration module designed for velometers with mV/mm/s output. It has two independent vibration channels and a dedicated keyphasor channel, and is API 670 compliant for round-the-clock monitoring and protection.
Key features
- Hot-swappable rack module
- 2 velometer channels + 1 keyphasor (eddy current or laser tachometer)
- Alphanumeric and bar-graph display; password-protected front keypad
- Galvanically isolated 4-20 mA for DCS/PLC/SCADA
- Modbus RTU via RS-485 (Modbus TCP on request)
- 2 sets of alarm and 2 sets of trip relay contacts per channel
- Buffered outputs front and back; start-up protection; TX Fail detection
- Main + redundant 24 V DC input via O-ring diode
Specifications
| Parameter | Value |
|---|---|
| Channels | 2 casing vibration + 1 keyphasor |
| Sensors | IEPE velometers (e.g. IRD531) or seismic velometers (e.g. IRD544M) |
| Sensitivity | 0.1–99.9 mV/mm/s; typical 4 or 25 mV/mm/s (IRD531), 42.52 mV/mm/s (IRD544M) |
| Keyphasor | Eddy current or laser tachometer; typically 8 V/mm |
| Full scale | e.g. 150 mm/s pk |
| Accuracy | ±1% of full scale |
| 4-20 mA | Galvanically isolated, proportional to full scale |
| Relays | 2× alarm + 2× trip (NO/C/NC) per channel, 5 A @ 230 V AC resistive |
| Modbus | RTU, RS-485, address 001–255, 9600 baud default, parity odd/even/none. Modbus TCP also available on request |
| Power | +24 V DC nominal, 16–32 V DC; 1 A; 24 VA; via 48-pin backplane connector |
| Standard | API 670 compliant |
Documents
Part of the IRD8800 Series API 670 machinery protection system, made in India by IRD Mechanalysis. Online-system warranty: 3 years. More about IRD8800
Technical Specifications
- InputInductive Velocity Sensor
- Full Scale RangeUser Programmable
