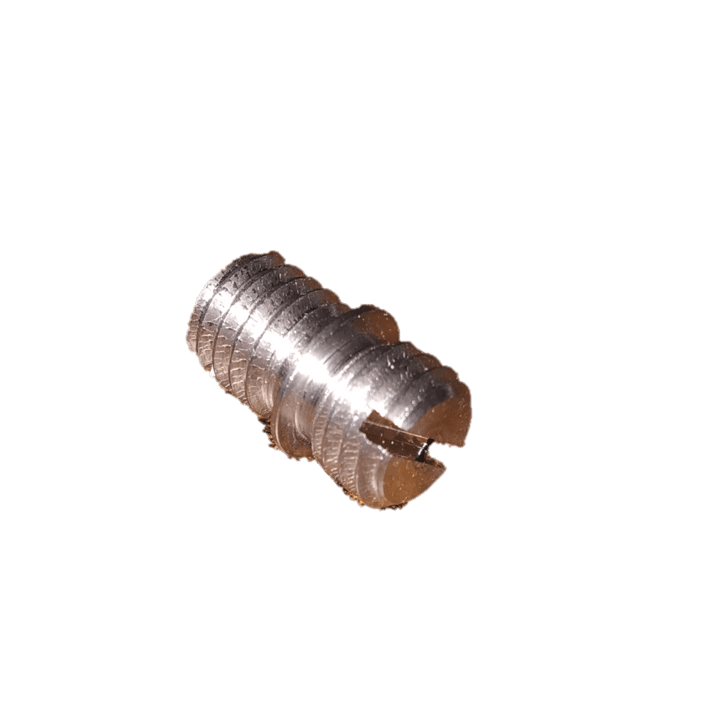

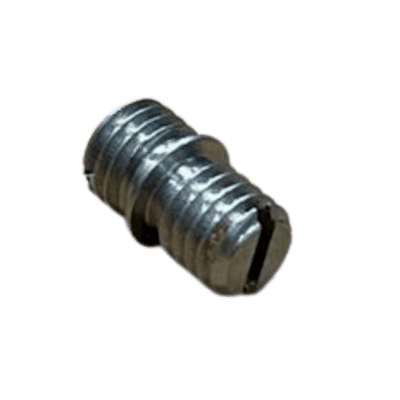

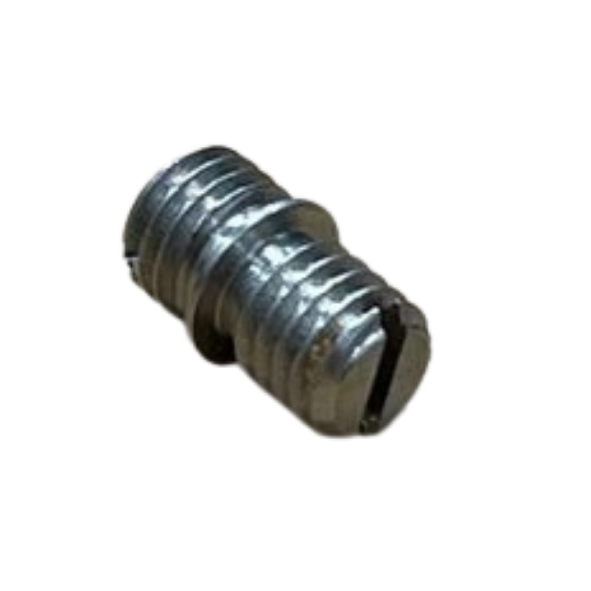

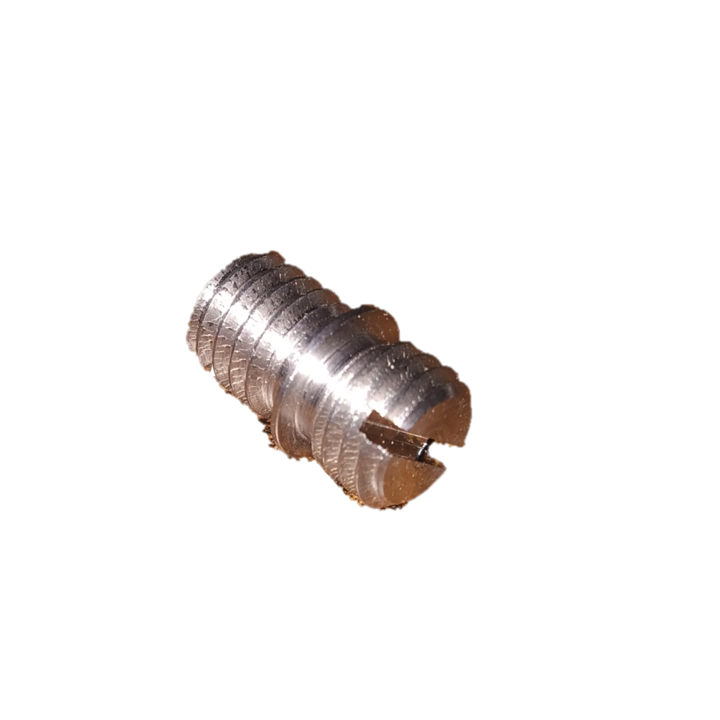

Mounting Stud 1/4"-28 UNF to M6 x 1 (Male–Male)
Product Details
An SS304 stainless steel male–male mounting stud that connects a vibration sensor with a 1/4"-28 UNF mounting thread to a mounting pad or machine surface tapped M6 x 1.
Specifications
| Material | Stainless steel SS304 |
|---|---|
| Thread – sensor end | 1/4"-28 UNF male |
| Thread – machine/pad end | M6 x 1 male |
| Use | Connects the vibration sensor to a mounting pad or tapped machine surface |
| SKU | STUD-M6 |
All IRD vibration sensors have a 1/4"-28 UNF female mount, so this stud fits every IRD sensor. Pair with a sensor mounting pad tapped M6 if the machine surface is not tapped. Compatible sensors: accelerometers, velometers and loop-powered 4–20 mA sensors – all have a 1/4"-28 UNF female mount. IRD vibration sensors carry a 3-year warranty.
See all mounting accessories and the selection guide.
