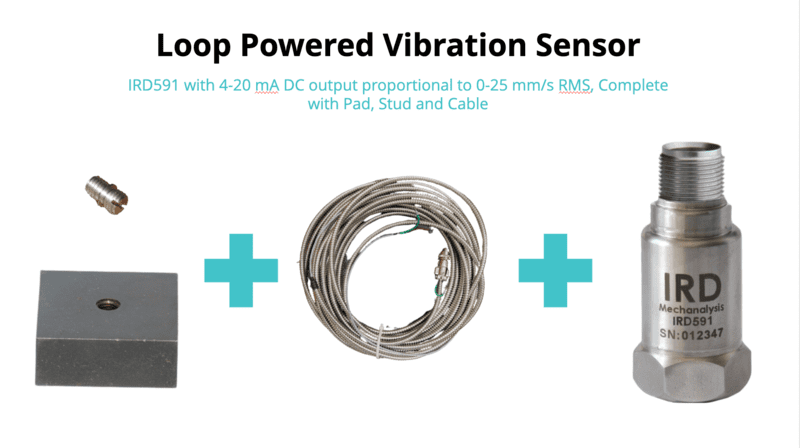

Loop Powered Vibration Sensor IRD591 (591), Pad, Stud and Cable Set. 4-20 mA proportional to 0-25 mm/sec RMS
₹23,750.00
This set is able to measure Vibration Velocity Amplitude in terms of mm/sec RMS. It is loop powered and provides 4-20 mA output proportional to 0-25 mm/s RMS

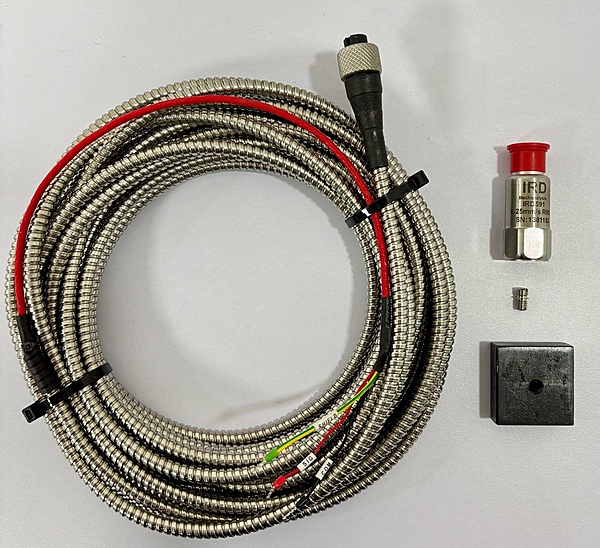

Constituents
- [M5910255001000]IRD591 - Industrial Vibration Sensor, 0-25 mm/s RMS, 2 Pin MS, 1/4-28" UNF female - 1 Numbers
- [STUD-M6]Stud, HS-AS024, Mounting/Grub Screws, 1/4"-28UNF Male, M6 Male - 1 Numbers
- [MS-PAD-M6]Sensor Mounting Pad MS Blackodized for Accelerometer (40x40x16mm) with M6 thread tapped - 1 Numbers
- [M60101]Cable Assembly, Teflon 3.5mm dia, SS Conduit 5mm ID, 10m, 2 Pin MS, Shielded - 1 Numbers
Specifications
Technical Parameters
- Full Scale Range0-25 mm/s RMS
