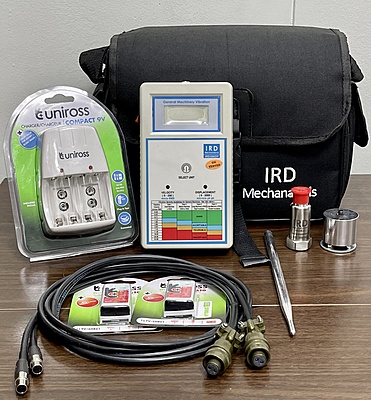

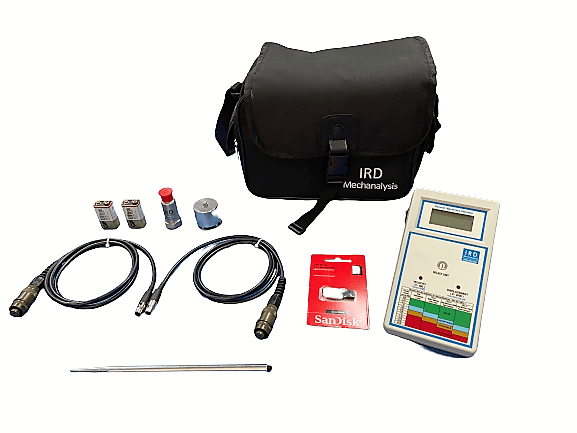

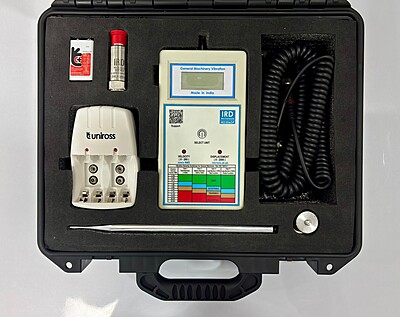

IRD306DP (306DP/306 DP) - Digital Vibration Meter with Standard Accessories
₹71,875.00

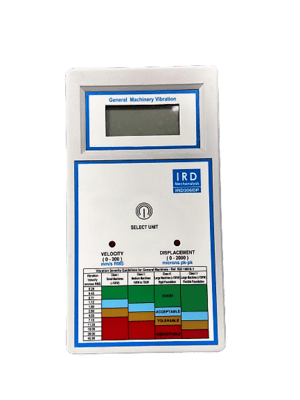

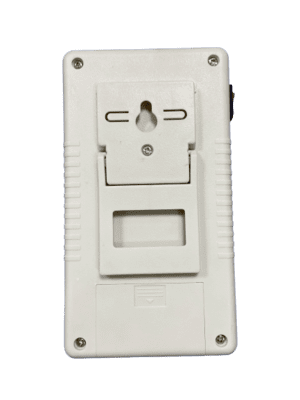

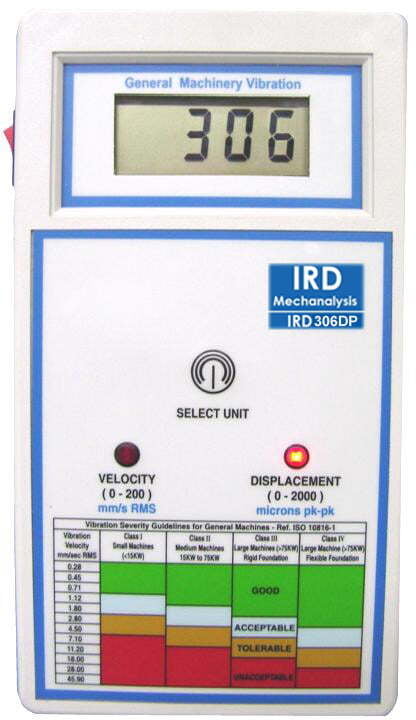

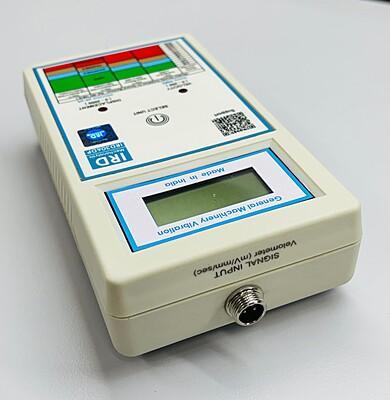

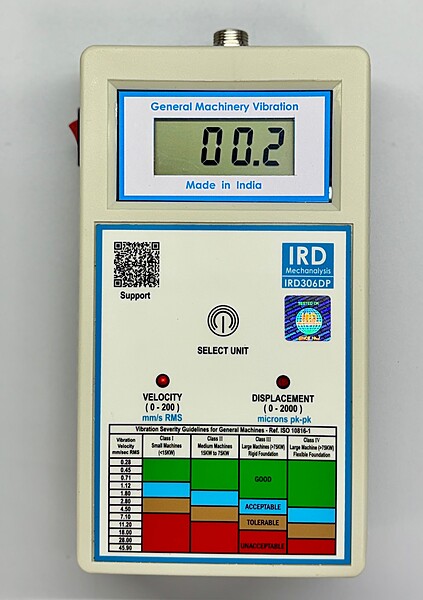

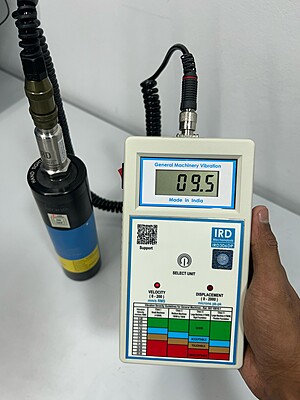

IRD306DP is a Portable and Easy-to-Use Digital Vibration Meter. It has a 3 1/2 Digit LCD Display with crisp text. It is able to measure Vibration Velocity in mm/sec RMS and Displacement in microns peak-peak using the Sensor IRD531. It has a kick stand at the back and a ISO 10816-1 chart pasted at the front for convenience.
Shipping and Taxes are calculated at Checkout. To Download the Brochure of IRD306DP, please click here
Trusted by Companies around the World
![](/products/1374657000000121072/description_images/Essar%20Ports.png)
![](/products/1374657000000121072/description_images/Powergrid.png)
![](/products/1374657000000121072/description_images/TDPS.png)
![](/products/1374657000000121072/description_images/IMFA.png)
Tags:
![](/product-images/IRD306DP.jpg/1374657000017637257/700x700)
![](/product-images/IRD306DP.jpg/1374657000017637257/500x500)
![](/product-images/IRD306DP_Front.png/1374657000019886848/500x500)
![](/product-images/IRD306DP_Back.png/1374657000019886854/500x500)
![](/product-images/IRD306DP_Left.png/1374657000019886860/500x500)
![](/product-images/IRD306DP_Top.png/1374657000019886866/500x500)
![](/product-images/IRD306DP_Right.png/1374657000019886872/500x500)

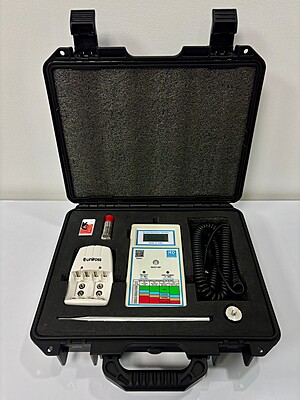

![](/product-images/IRD306DP+with+Complete+Accessories.jpg/1374657000032199005/500x500)
Specifications
Technical Details
- MemoryWithout Memory
- Measuring Range Velocity0-200 mm/sec RMS
- Measuring Range Displacement0-2000 microns pk-pk
- Frequency Range Velocity5 Hz - 6000 Hz
- Frequency Range Displacement5 Hz - 1000 Hz
- Instrument Accuracy0.5% of Full Scale +- 1 count
- Input SensorVelometer

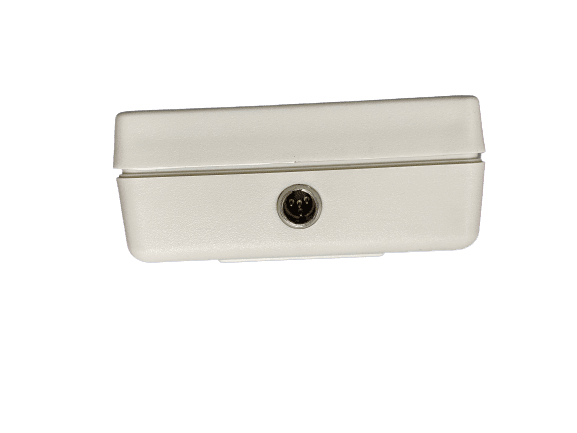

- Connector4 Pin Mini XLR
- OutputLCD Digital Display (3 1/2 Digit)
- Batteries2 Nos. of 9V Dry Cell, 100 mAh
- Operating Temperature0 to 50 Deg C, Sensor 140 Deg C
- Storage Temperature-18 to 65 Deg C
- Instrument Dimensions180 mm (L) x 100 mm (W) x 40 mm (H)
- Instrument Weight0.4 kg
- Total Weight with Accessories2.4 kg
