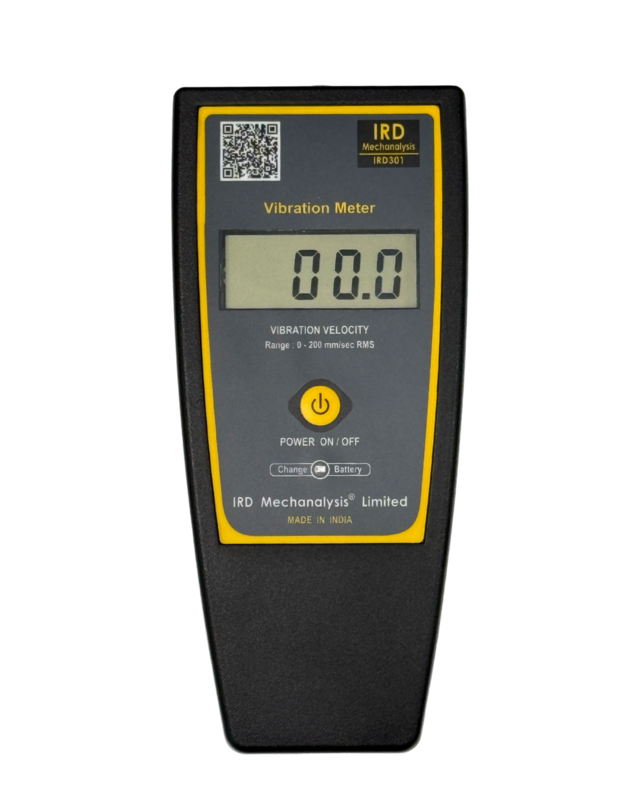

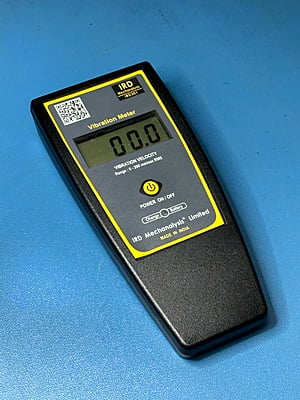

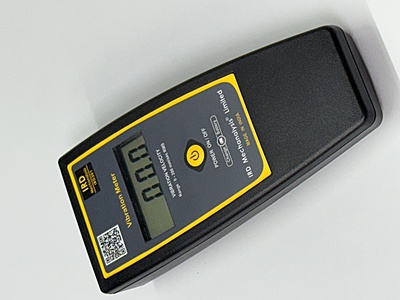

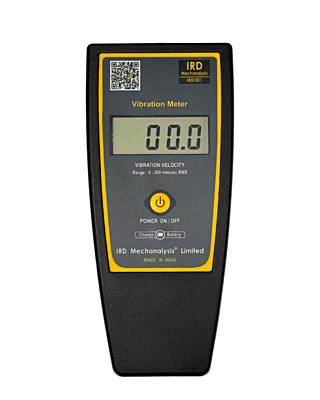

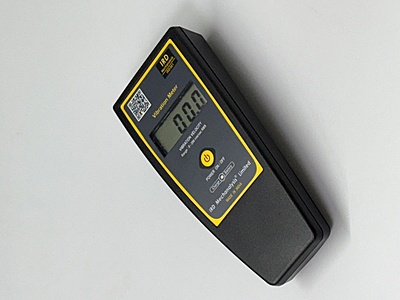

IRD301 Lite - Digital Vibration Meter with Vibration Velocity measurement in mm/sec RMS
₹29,799.00 ₹35,758.00
IRD301 is a Simple Vibration Meter made by IRD Mechanalysis Limited. It is Made in India and measures vibration velocity in mm/sec RMS. It runs on a single 9V battery and has a low battery indication. It is easy to use as it has just one button for Power On and Power Off
User Manual and Help Articles can be accessed here - User Manuals and Articles
Tags:
Product Details
Specifications
Technical Details
- MemoryWithout Memory
- Measuring Range Velocity0-200 mm/sec RMS
- Frequency Range Velocity10 Hz - 1000 Hz
- Instrument Accuracy1% of Full Scale
- Input SensorAccelerometer
- Connector2 Pin MRS Male
- DisplayLCD Digital Display (3 1/2 Digit)
- Batteries1 x 9V Dry Cell 210 mAh
- Operating Temperature0 to 50 Deg C, Sensor 140 Deg C
- Storage Temperature-18 to 65 Deg C
- Instrument Dimensions168 mm (L) x 74 mm (W) x 35 mm (H)
- Instrument Weight0.2 kg
- Total Weight with Accessories2 kg
- Kit DimensionsHard Case 305 (L) x 359 (W) x 99 (H) mm
