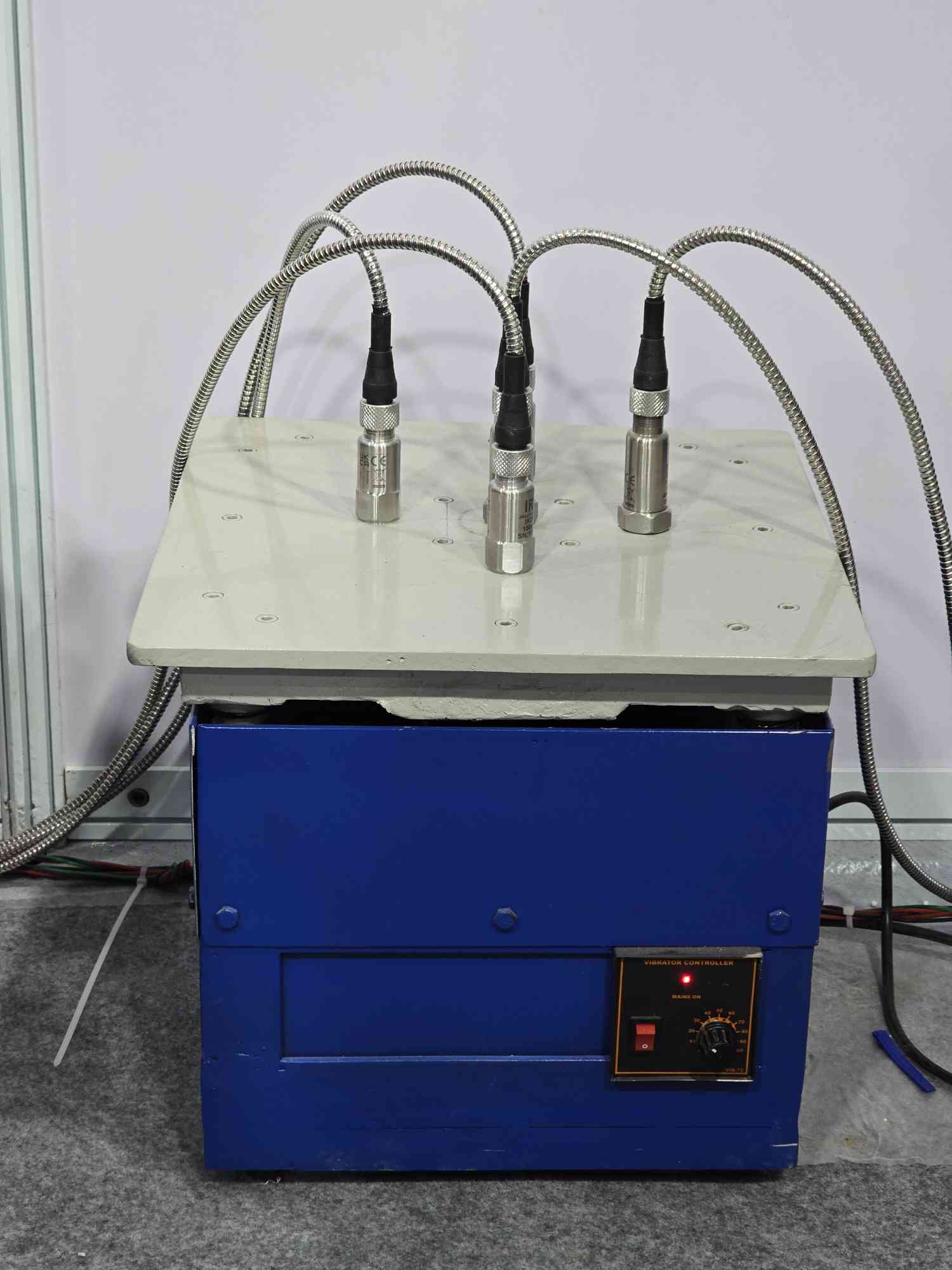

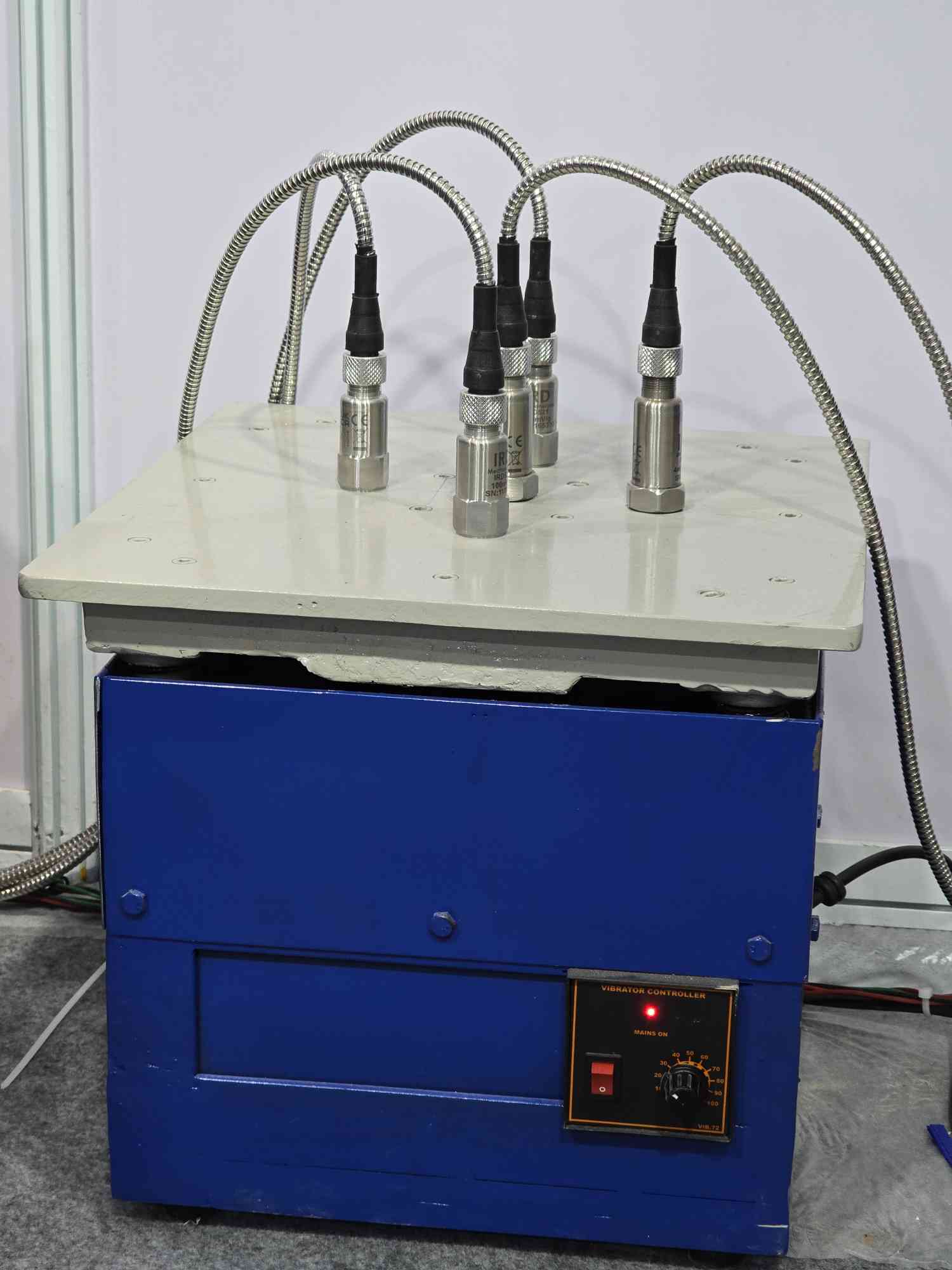

Unidirectional Vibration Shake Table, GE300
₹150,000.00
GE300 - Uni-Directional Shaker for Verification of Calibration of both Contact Type as well as Non-Contact type Vibration Sensors, Meters, Transmitters and Monitoring Systems. Calibration in accordance to ISO16063-21 Standard.
Able to generate Vibration of varying amplitudes between 0.1 g pk and 4.4 g pk at a frequency of 50 Hz or 60 Hz - depending on Line Frequency. Made in India and comes with standard 12 months warranty.
Product Details
- Can be kept on Ground or Table. Needs a levelled flat surface
- Sturdy Design - suitable for Rough use
- Amplitude can be controlled between 0 and maximum via sweep of Rotary Knob
- Power ON/OFF Button
- Studs can be provided as many as required to assist in mounting of Contact Type Vibration Sensors. By default, comes with provision for 5 Contact Type Sensors (1 reference + 4 Under observation)
- Comes with reference sensor contact type with display and 5 meters cable between Shaker and External Display
- Calibration checking in accordance to ISO16063-21 standard
- For Non-Contact type sensors, magnetic holder for sensors sold separately
- Generates Vibration at a frequency of 50 Hz or 60 Hz - depending on Line Frequency
- Works on 230 V AC, 50/60 Hz, Single Phase Power Input
- Vibrating Table Top is 340 x 340 mm in size with max payload of 5 kg
For a quotation - please contact sales@irdmech.com or call us at +91-2248972000 (Monday to Saturday 9 AM to 6 PM IST). For queries or Service - visit our Help Page or reach out to us on service@irdmech.com
