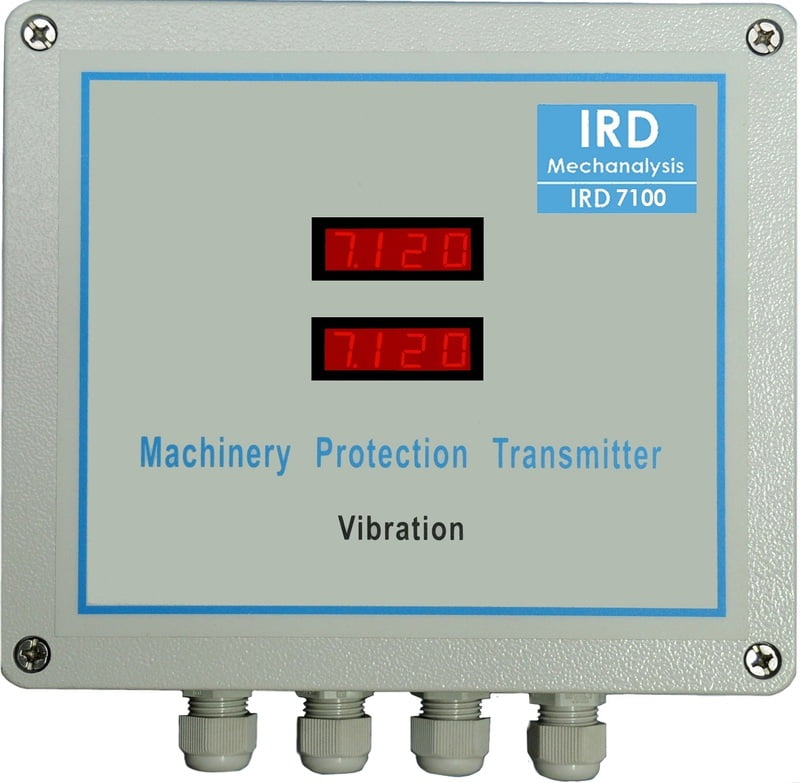

IRD7100 MPT, Dual Channel, Accelerometer Input 100 mV/g, 0-20 mm/s RMS, Al Die Cast IP65 230 x 200 x 110 in mm, Digital Display, 240VAC, 50/60 Hz, 1 Phase
₹40,710.00
IRD7100 Series comprises of Reliable and Economical Vibration Transmitters. These Transmitters provide Monitoring and Protection from High Vibration. The Transmitter is enclosed in a IP65 Enclosure and can accept a standard 100 mV/g Accelerometer as an Input (Sensitivity and Input type can be Customised on request).
Industry Standard 4-20 mA output and 0-5 V DC output proportional to Full Scale Vibration is provided. It also has Alarm and Trip Relay Contacts for Protection. MODBUS Output and Buffered Output is available on request.
Product Details
Specifications
This Part Code M712014332 corresponds to:
- Two Channel
- Accelerometer Input
- Full Scale Range: 0-20 mm/sec
- Scaling: RMS
- Enclosure: Al-Die Cast IP65
- Digital Display
- 230 V AC Input Supply
Technical Details
- No. of ChannelsDual Channel
- EnclosureAluminium Die Cast
- Input Power Supply230 V AC
- Input Sensor TypeAccelerometer
- Full Scale Range0-20 mm/s RMS
