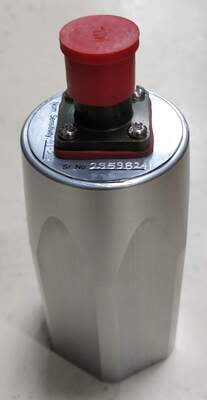

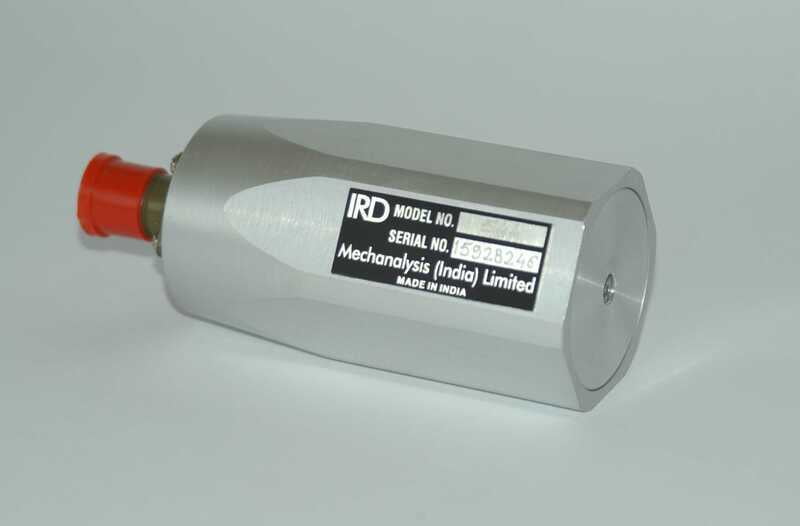

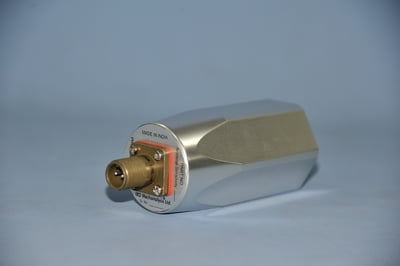

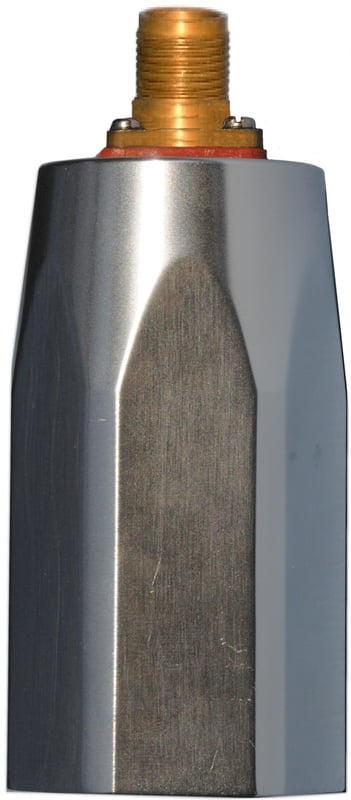

IRD544 - Inductive Velocity Sensor, 40 Hz-1 kHz, 42.52 mV/mm/sec +/- 10%, 2 Pin MS, 1/4"-28UNF Female
IRD544 is a Vibration Sensor which works on the principle of Electromagnetic Induction. When placed on a Vibrating Surface, it self-generates an EMF which is proportional to Vibration Velocity and thus is called as an Inductive Type Velocity Output Sensor. This output has a sensitivity of 42.52 mV/mm/sec at 80 Hz and ambient 24 Deg C
Which IRD Portable Instruments work with IRD544 Sensor?
- IRD306 - Analog Vibration Meter with Velocity and Displacement Measurement
- IRD306DI - Digital Vibration Meter with Velocity and Displacement Measurement
- IRD811 - Analog Vibration Meter cum Spike Energy Detector (Acceleration and Spike Energy available only with 100 mV/g accelerometers. Not with IRD544)
