IRD306DI (306DI/306 DI) - Digital Vibration Meter with Standard Accessories
₹177,156.00

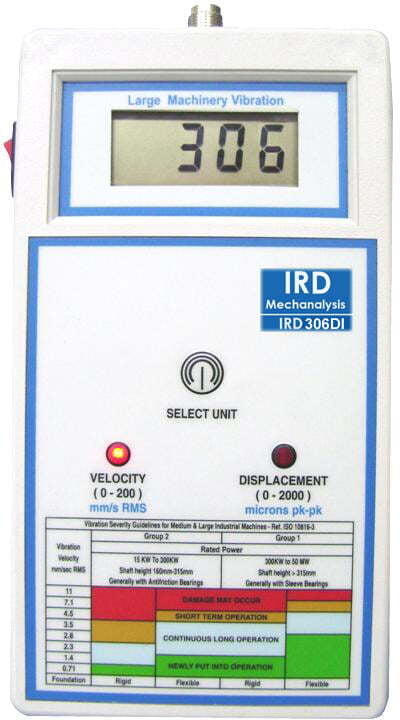

IRD306DI is a Portable and Easy-to-Use Vibration Meter. It uses the Inductive Velocity Sensor IRD544 as its input. It provides measurement of Vibration Amplitude in terms of Velocity in mm/sec RMS and Displacement in microns peak-peak. It has the ISO 10816-3 chart pasted on its front for easy reference of observed values to the acceptance chart.
Tags:
Specifications
Technical Details
- MemoryWithout Memory
- Measuring Range Velocity0-200 mm/sec RMS
- Measuring Range Displacement0-2000 microns pk-pk
- Frequency Range Velocity10 Hz - 1000 Hz
- Frequency Range Displacement10 Hz - 1000 Hz
- Instrument Accuracy0.5% of Full Scale +- 1 count
- Input SensorInductive Velocity Sensor
- ConnectorTNC Female
- OutputLCD Digital Display (3 1/2 Digit)
- Batteries2 Nos. of 9V Dry Cell, 100 mAh
- Operating Temperature0 to 50 Deg C, Sensor 260 Deg C
- Storage Temperature-18 to 65 Deg C
- Instrument Dimensions180 mm (L) x 100 mm (W) x 40 mm (H)
- Instrument Weight0.4 kg
- Total Weight with Accessories2.4 kg
