IRD811 (811/811 A) - Analog Vibration Meter cum Spike Energy Detector with Standard Accessories
₹150,000.00

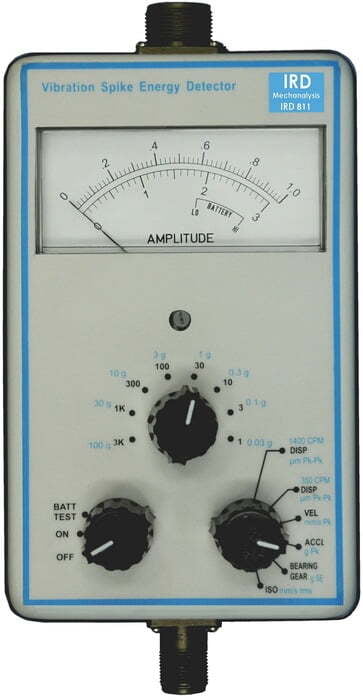

IRD811 is an Analog Vibration Meter cum Spike Energy Detector. It can be used to measure Vibration Amplitude in terms of Displacement, Velocity and Acceleration. It is also able to help assess anti-friction bearing condition via measurement of Spike Energy. Click here for Brochure of IRD811.
To Download User Manual, please click here
Tags:
Product Details
Specifications
- Key Features
- Allows for period vibration check for unbalance, misalignment, looseness, etc in rotary machines
- It can help pinpoint incipient bearing and gear deterioration
- Vibration Hunting, Rubs, Cavitation, etc. can be observed on the device
- Long Battery Life - 10 hours of continuous usage
- Using Spike Energy, bearing defects such as micro spalls, cracks and lack of lubrication can be quickly identified
- Technical Parameters
- Frequency – with Accelerometer
- Displacement (350 CPM): - 350 to 60,000 CPM (5.8 Hz to 1,000Hz)
- Displacement (1400 CPM): - 1400 to 60,000 CPM (23.3 Hz to 1,000 Hz)
- Velocity: - 350 to 600,000 CPM (5.8 Hz to 10,000 Hz)
- Acceleration: - 350 to 600,000 CPM (5.8 Hz to 10,000 Hz)
- Bearing/Gear - Up to ultrasonic frequencies
- RMS - VRMS – vibration severity evaluation as per ISO 10816-3

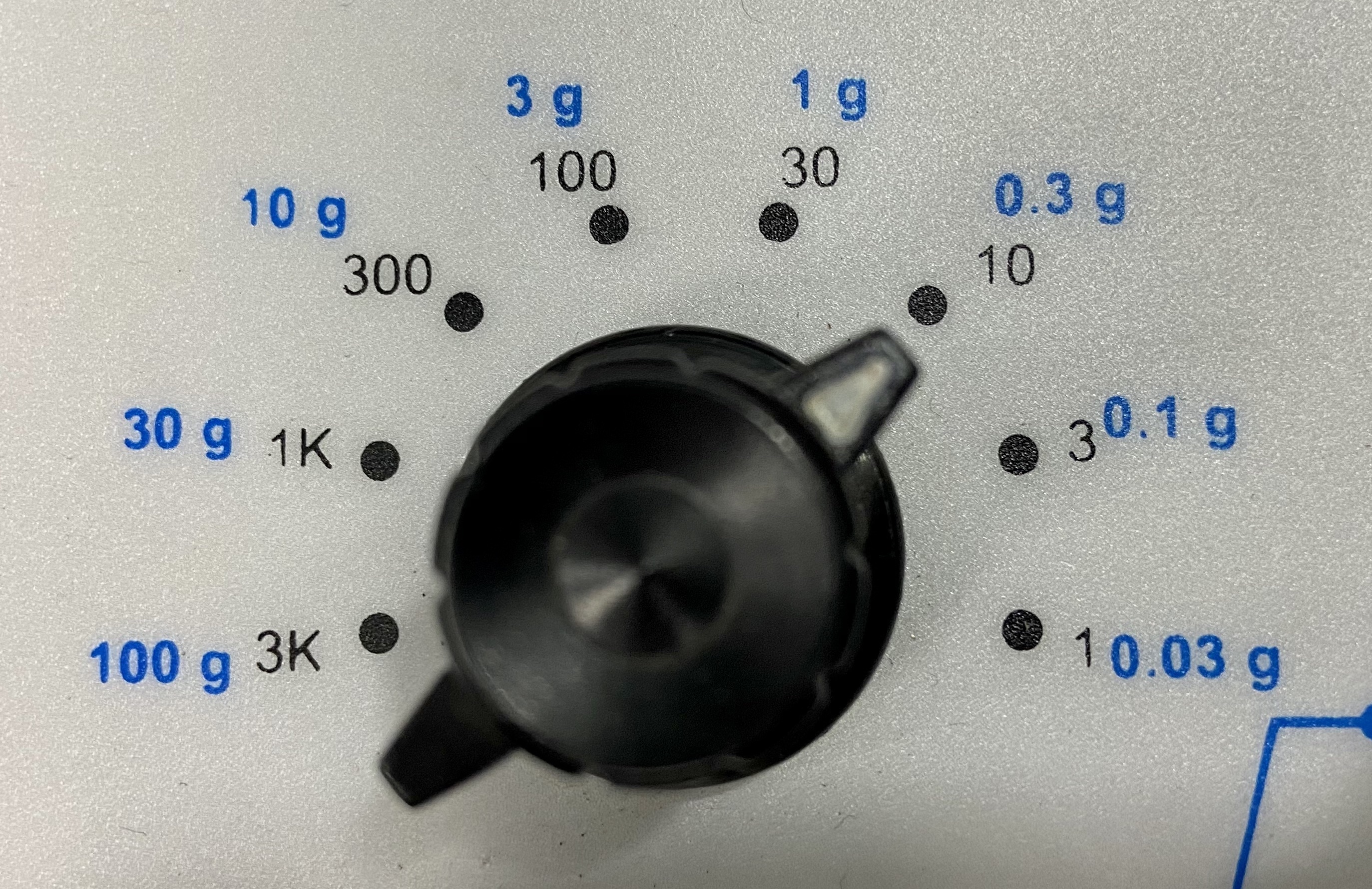

- Measurement Ranges
- Acceleration Range: - 0 to 100 g Pk in 8 overlapping ranges
- Bearing/Gear Check Range: - 0 to 100 gSETM in 8 overlapping ranges
- Spike Energy: - Special circuit designed to detect gSETM
- Displacement Range: - 0 to 3,000 microns Pk to Pk in 8 overlapping ranges
- Velocity Range: - 0 to 3,000 mm/sec Pk in 8 overlapping ranges
- Frequency - with IRD544 Velocity Sensor
- Displacement (350 CPM): - 600 to 60,000 CPM (10 Hz to 1,000 Hz)
- Displacement (1400 CPM): - 1400 to 60,000 CPM (23.3 Hz to 1,000 Hz)
- Velocity: - 600 to 60,000 CPM (10 Hz to 1,000 Hz)
- Input/Output
- Inputs: - Accelerometer/ IRD544 Velocity Sensor

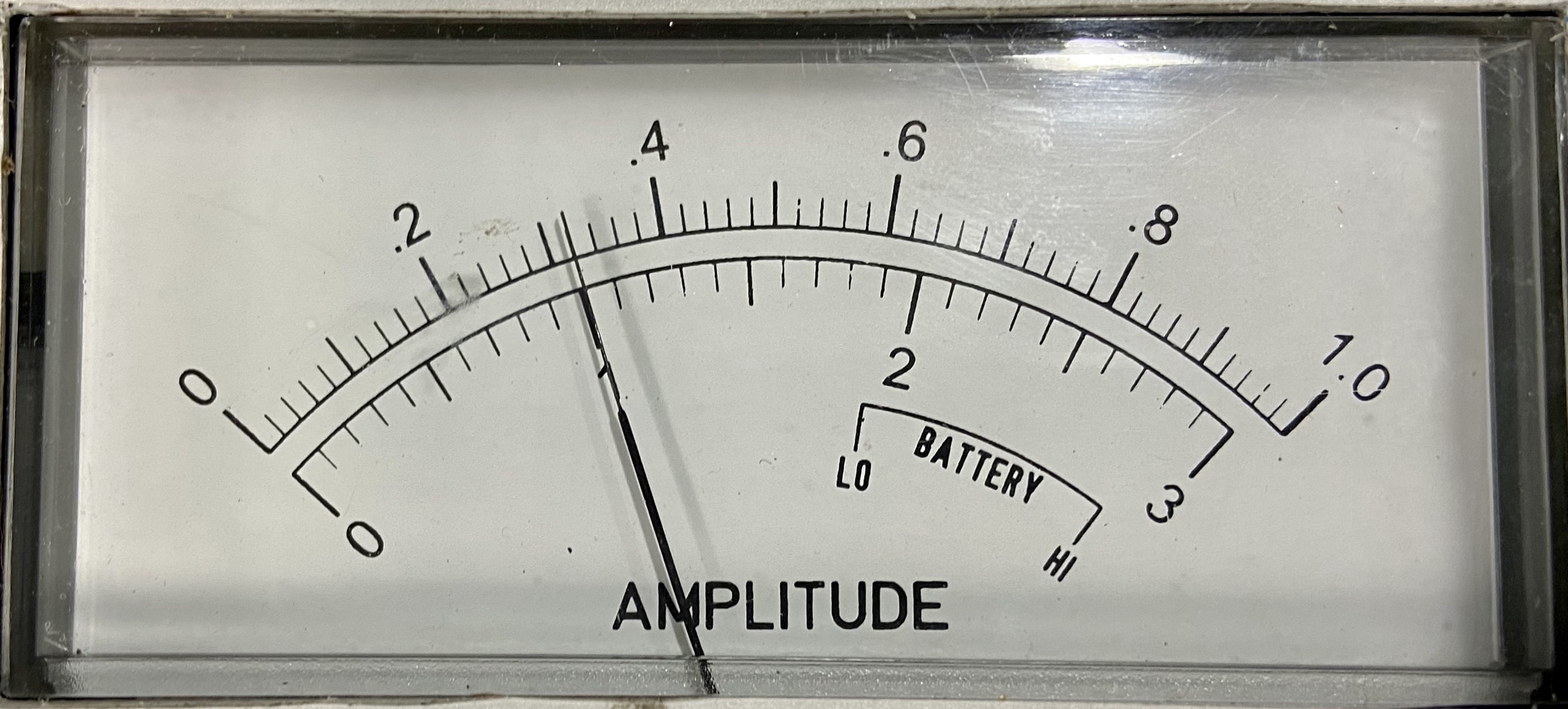

- Outputs: - Analog amplitude meter, microns, mm/sec, g, gSETM
- Time Waveform (TWF) signal for Scope/Tape Recorder/Analyser
- Power Requirements
- Internal Batteries: - Battery Set, 3 Nos. of 9V, 100mAH Dry Cells
- Battery Test: - Battery condition indicated on meter front
- Environmental
- Operating temp: - -1°C to 65°C
- Storage temp: - -20°C to 65°C
- Packaging
- Enclosure: - Aluminium with dust and splash proof seal
- Battery compartment: - Easy access for quick change of batteries
- Carrying case: - Good quality rugged case with space provided for instrument and standard accessories
- Weight & Dimensions
- Instrument: - 1.05 Kg
- Dimensions: - 210mm (L) × 116mm (W) × 78mm (H)
- Weight: - 2.50 Kg (inc. meter, standard accessories in the carrying case)
Technical Details
- MemoryWithout Memory
- Measurement Range Spike Energy0.03 gSE, 0.1 gSE, 0.3 gSE, 1 gSE, 3 gSE, 10 gSE, 30 gSE, 100 gSE
- Measurement Range Acceleration0.03 g pk, 0.1 g pk, 0.3 g pk, 1 g pk, 3 g pk, 10 g pk, 30 g pk, 100 g pk
- Measuring Range Velocity3 mm/s pk, 10 mm/s pk, 30 mm/s pk, 100 mm/s pk, 300 mm/s pk, 1000 mm/s pk, 3000 mm/s pk
- Measuring Range Displacement3 um pk-pk, 10 um pk-pk, 30 um pk-pk, 100 um pk-pk, 300 um pk-pk, 1000 um pk-pk, 3000 um pk-pk
- Frequency Range Acceleration5.8 Hz - 10000 Hz
- Frequency Range Velocity5.8 Hz - 10000 Hz
- Frequency Range Displacement350 CPM Mode - 5.8 Hz - 1000 Hz; 1400 CPM Mode - 23.3 Hz - 1000 Hz
- Input SensorAccelerometer
- Connector6 Pin Female
- OutputAnalog Amplitude Meter
- Batteries3 Nos. of 9V Dry Cell, 210 mAh
- Operating Temperature-1 to 65 Deg C
- Storage Temperature-20 to 65 Deg C
- Instrument Dimensions210 mm (L) x 116 mm (W) x 78 mm (H)
- Instrument Weight1.05 kg
- Total Weight with Accessories2.5 kg
