IRD8800 (8800), M88200 (88200) - Casing Vibration Module, 2Ch Vibration Input and 1Ch Keyphasor Input, API Standard 670 Compliant, Input: 24 V DC

₹119,625.00 ₹143,550.00

The M88200 monitors casing vibration on two channels from accelerometers or velometers, with one keyphasor (phase reference) input from a laser or eddy current sensor. It provides an isolated 4-20 mA output per channel, alarm and trip relays per channel plus a TX Fail relay, buffered outputs and RS-485 Modbus RTU (Modbus TCP available on request). Full scale is up to 150 mm/s pk or 1000 µm (40 mils) pk-pk. Spare card for the IRD8800 online monitoring system.

If you wish to learn more about how Vibration Monitoring is done via IRD8800, please Visit this Link

Data Sheet of M88200-DC

Add to Cart
Product Details

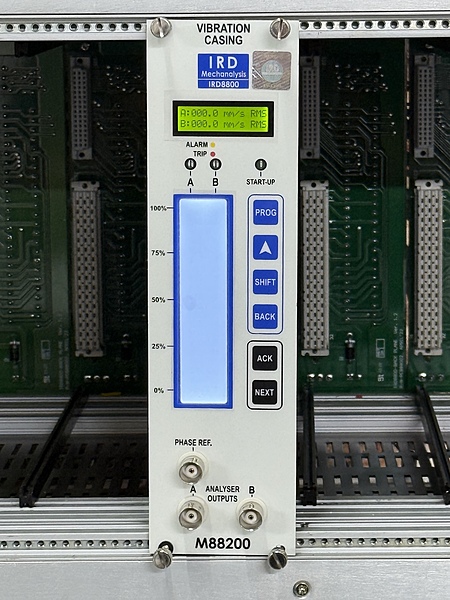

M88200 – Casing Vibration Module (IRD8800 Series)

The M88200 is the casing vibration module of the IRD8800 Series machinery protection system, designed to API Standard 670. Each module is an independent monitor with its own power supply, display, keypad and relays. It accepts two vibration inputs (accelerometers or velometers) and one phase-reference input (laser or eddy current sensor).

Key features

  • 2 vibration channels + 1 keyphasor (phase reference) input
  • Accelerometer input: velocity or acceleration readout; velometer input: velocity or displacement readout
  • Isolated 4-20 mA per channel; saturates at 20 mA on over-range; 2.8 mA on TX Fail
  • Buffered output per channel at front (isolated BNC) and rear terminals, plus keyphasor buffered output
  • RS-485 Modbus RTU (Modbus TCP on request); independent alarm and trip relays per channel; TX Fail relay
  • Password-protected front keypad: range, units, sensitivity, filters, delays, hysteresis, latching, trip bypass
  • 100-segment bar graph per channel and 16×2 LCD
  • Hot-swappable; main and redundant 24 V DC power via O-ring diode

Specifications

ParameterValue
Channels2 vibration + 1 keyphasor
SensorsAccelerometer (e.g. 100 mV/g IEPE), piezo velometer; keyphasor: laser or eddy current
Sensitivity0.1–999.9 mV/g or 0.001–9.999 mV/mm/s (default 100 mV/g, 4 mV/mm/s)
Full scale (max)150 mm/s pk; 1000 µm (40 mils) pk-pk
FiltersLPF 1 / 5 / 10 kHz; HPF 5 / 10 / 20 Hz
Accuracy / linearityBetter than ±1% ±2 LC
4-20 mAIsolated, one per channel, 600 Ω load
RelaysAlarm and trip per channel, potential-free, 5 A @ 240 V AC resistive; delay 0–60 s
TX Fail relay1 DPDT potential-free contact per module, 8 A @ 230 V AC / 24 V DC; alarm/trip inhibited and 4-20 mA pulled to 2.8 mA on TX Fail
ModbusRS-485 Modbus RTU; address 001–255; 4800–38400 baud. Modbus TCP also available on request
Sensor power4 mA constant current @ +24 V
PowerM88200-DC: 24 V DC; M88200-AC: 90–270 V AC 50/60 Hz; 15 VA steady state, 24 VA inrush per module
Operating conditions0–65 °C, 95% RH non-condensing
MountingPlug-in to IRD8800 rack

Documents

Part of the IRD8800 Series API 670 machinery protection system, made in India by IRD Mechanalysis. Online-system warranty: 3 years. More about IRD8800
