Triaxial (XYZ) Sensor Mounting Block, Mild Steel Blackodized, 40×40×40 mm
₹600.00 ₹800.00
Product Details

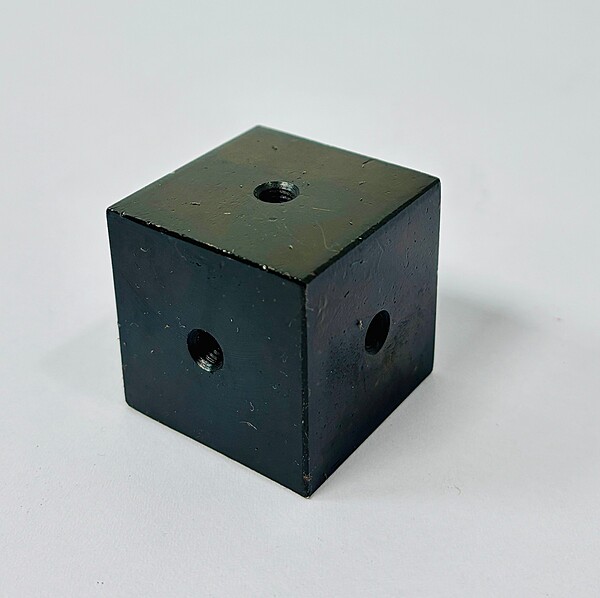

A cube-shaped mounting block that lets up to three sensors measure along three axes (X, Y, Z) at a single point on the machine bearing, saving space.
Specifications
| Material | Mild steel, blackodized |
|---|---|

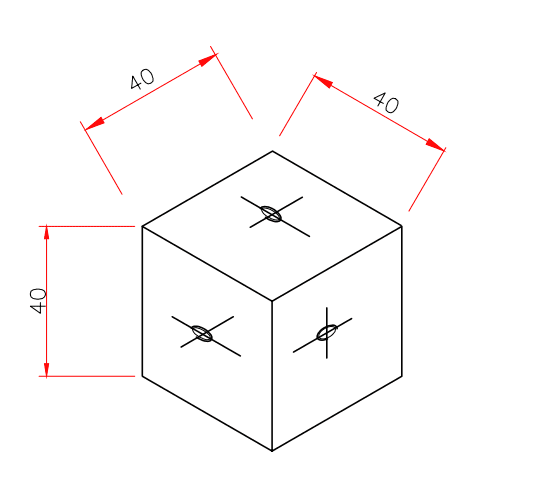

| Size | 40 × 40 × 40 mm |
| Tapped threads | To your requirement – please state the thread when ordering |
| Use | Up to three-axis measurement at one point on the bearing |
| SKU | XYZ-Block |
Order with matching mounting studs. Compatible sensors: accelerometers, velometers and loop-powered 4–20 mA sensors – all have a 1/4"-28 UNF female mount. IRD vibration sensors carry a 3-year warranty.
See all mounting accessories and the selection guide.
Need help choosing? Email sales@irdmech.com or WhatsApp +91-9082527331. IRD Mechanalysis – vibration monitoring since 1955.
