Magnetic Base 9.3 kg, Ø38 mm, 1/4"-28 UNF Male Stud
₹4,000.00
Product Details

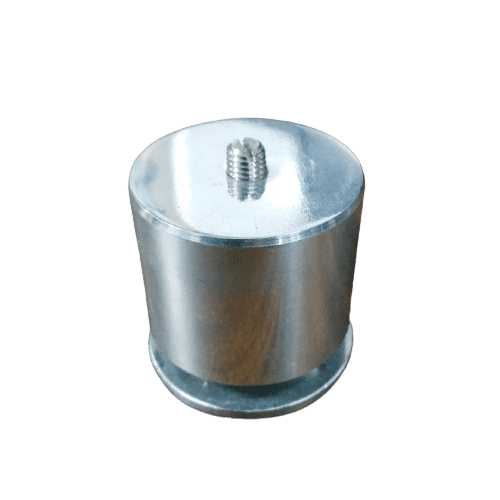

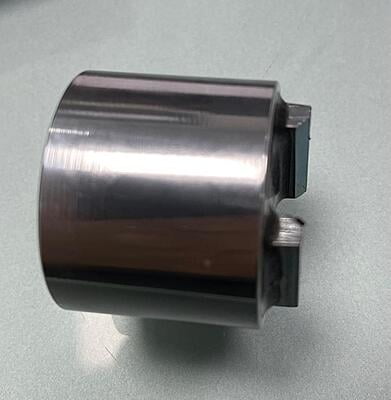

A portable magnetic base for quick vibration readings on steel surfaces. Its 1/4"-28 UNF male stud screws straight into any IRD vibration sensor. Remove the stud and the base has a 1/4"-28 UNF female thread.
Specifications
| Holding weight | 9.3 kg |
|---|---|
| Diameter | 38 mm |
| Sensor thread | 1/4"-28 UNF male stud (removable); 1/4"-28 UNF female with stud removed |
| Used with | IRD811D, IRD811 and IRD306DP portable kits |
| SKU | MAGNET-SMALL-PORTABLE |
All IRD vibration sensors have a 1/4"-28 UNF female mount. See all mounting accessories.
