IRD8800 (8800), M88200 (88200) - Casing Vibration Module, 2Ch Vibration Input and 1Ch Keyphasor Input, API Standard 670 Compliant, Input: 90-270 V AC, 50/60 Hz, Single Phase Grounded Supply

M88200 is the Casing Vibration Measurement Card of the family IRD8800 - API 670 Compliant Vibration Monitoring System. It is able to measure vibration amplitude in terms of Displacement, Velocity or Acceleration (depending on Sensor Input type) and is able to display readings in pk, pk-pk or RMS. It is a 2 channel card with a separate channel for Keyphasor input

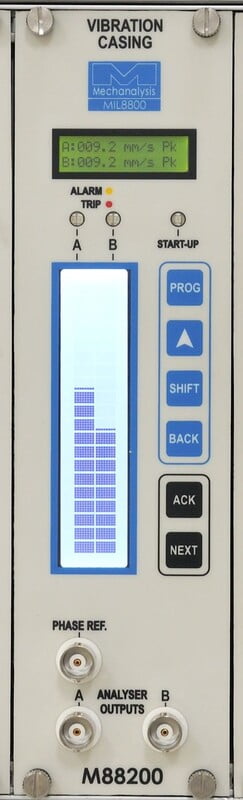

It has an alphanumeric display which shows instantaneous value and the configuration menu. Configuration is easy and password protected using the push buttons at the front. It also has a Bar graph display which is Customizable through the configuration menu to suit Customer specific requirements.

It has Industry Standard 4-20 mA output, Alarm and Trip relays per Channel, redundant MODBUS RTU and TCP/IP output, Start-Up Protection, Buffered Output and several other useful features for monitoring and protection of critical asset such as Motors, Pumps, Fans, Turbines, Compressors and so on.

Add to Cart
IRD8800, M88200 - Casing Vibration, 2Ch Vibration Input and 1Ch Key Phasor Input
IRD8800, M88200 - Casing Vibration, 2Ch Vibration Input and 1Ch Key Phasor Input
Technical Specifications
  • Input
    Accelerometer or Velometer
  • Full Scale Range
    User Programmable
  • Relay Contact Rating
    5 A @ 230 V AC Resistive
  • Number of Channels
    2 Channel for Vibration. 1 Channel for Key Phasor
