DIN-Rail Mountable Products for Vibration Monitoring

DIN-Rail mounting is a widely accepted form of mounting Transmitters and Devices in Field or within a Panel. At IRD Mechanalysis Limited - we manufacture Vibration Monitoring Products in DIN-Rail mountable enclosures for Round-the-clock Condition Monitoring. Salient features of these products are:

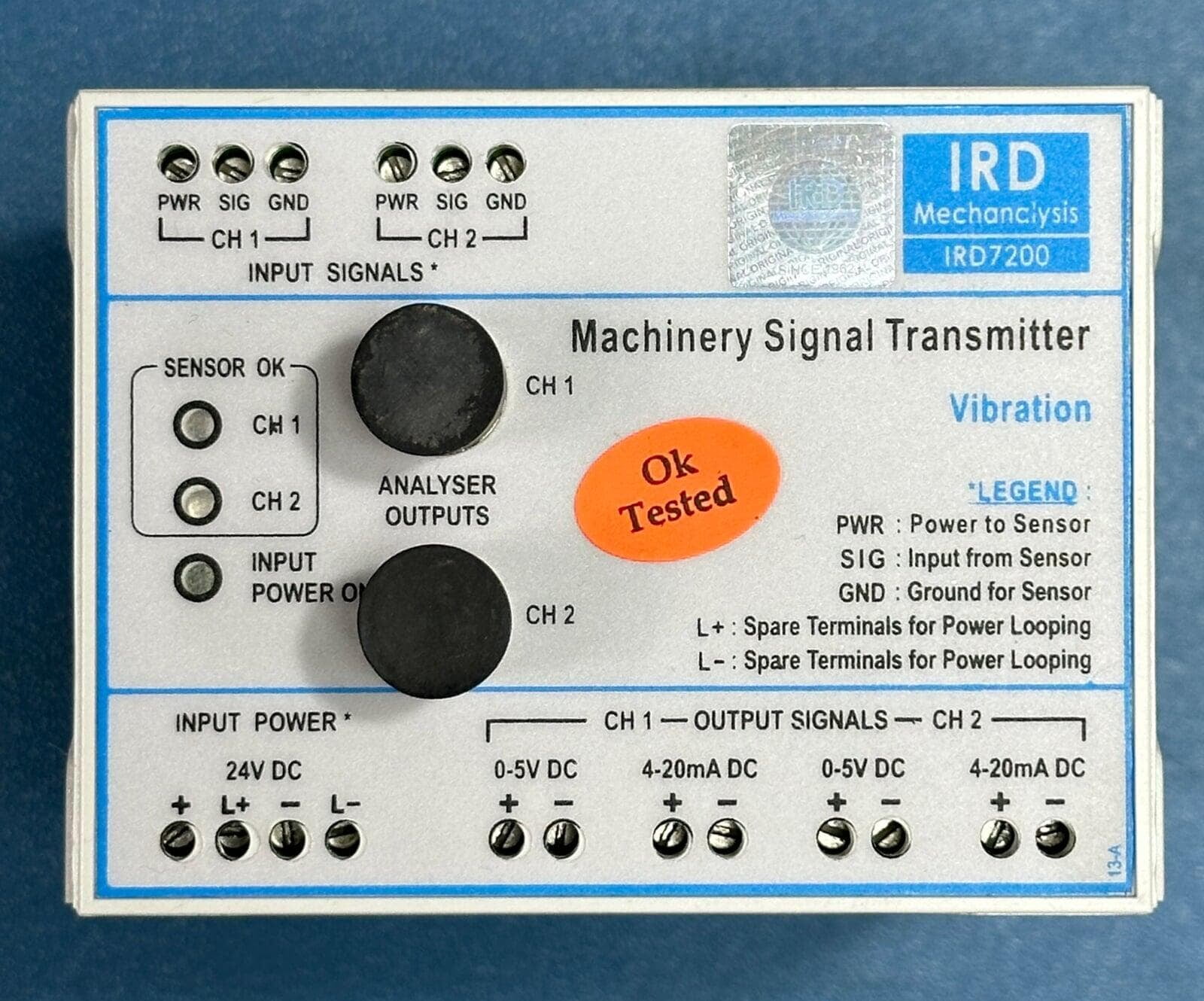

• Available in Loop Powered Options (IRD7400) as well as Conventional Powered Options (IRD7200)

• DIN-Rail mountable on standard 35 mm DIN Rails
• Buffered Output (copy of Raw Signal) available per Channel on Front via BNC
• 4-20 mA output per channel on Closed Loop in IRD7400 and on Open Loop in IRD7200

• 0-1 V DC (IRD7400) or 0-5 V DC (IRD7200) output per channel to assist in connecting an External Display

• Factory Set Input Sensor type (Accelerometer or Velometer), sensitivity and Full Scale - No configuration time needed - Straight Plug and Play
• Scaleable infinitely and can be integrated to DCS, PLC, SCADA, Cloud Monitoring Platforms and enable IIOT
