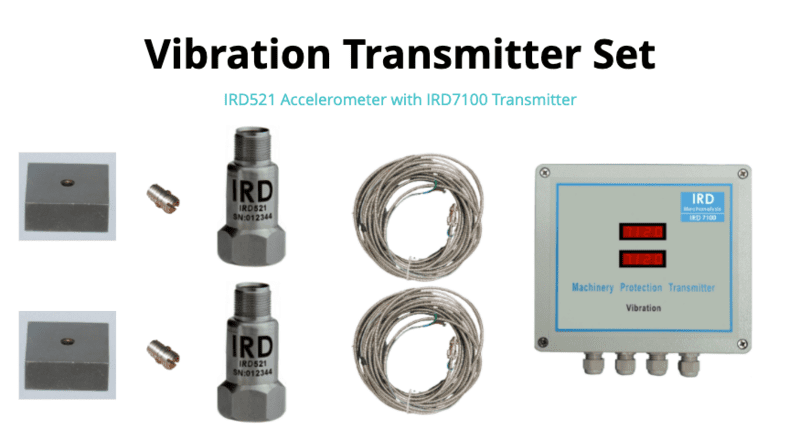

Vibration Transmitter for X & Y Vibration Monitoring of a Bearing

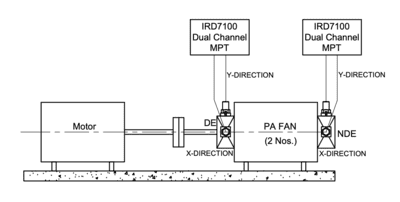

This kit will allow you to measure the X & Y Vibration of a Bearing of a Pump, Motor, Fan, Turbine, etc. It will provide you 4-20 mA output, Alarm and Trip Relay Contacts and 0-5 V DC output.

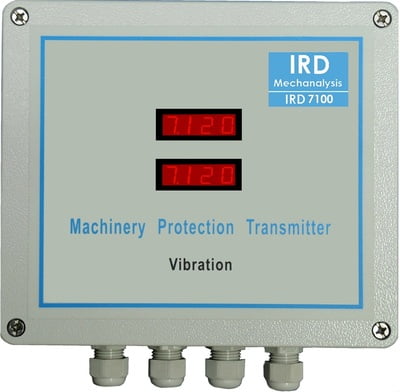

1. [M712014332]IRD7100, Dual Channel, Accelerometer Input, 0-20 mm/s rms, Al Die Cast IP65, Digital Display, 240VAC - 1 Numbers

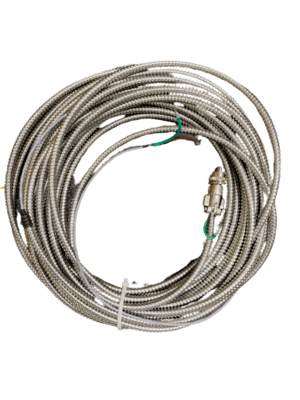

2. [M60101]Cable Assembly, Teflon 3.5mm dia, SS Conduit 5mm ID, 10m, 2 Pin MS, Shielded - 2 Numbers

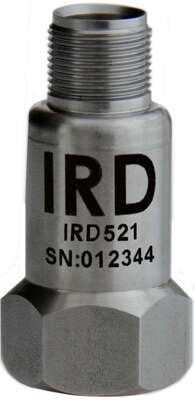

3. [M52110050]IRD521 - Industrial Vibration Sensor, 100 mV/g, 2 Pin MS, 1/4"-28UNF Female - 2 Numbers

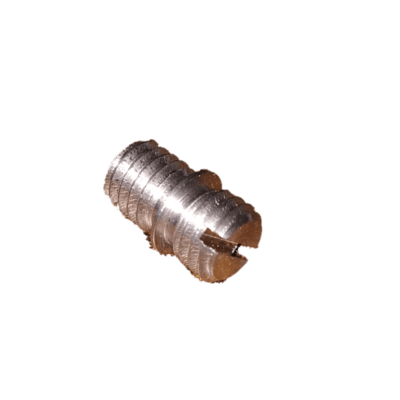

4. [STUD-M6]Stud, HS-AS024, Mounting/Grub Screws, 1/4"-28UNF Male, M6 Male - 2 Numbers

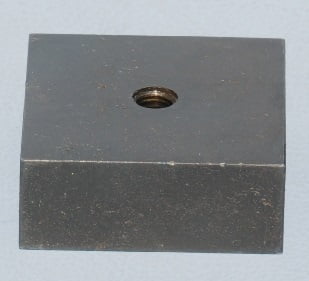

5. [MS-PAD-M6]Sensor Mounting Pad MS Blackodized for Accelerometer (40x40x16mm) with M6 thread tapped - 2 Numbers
