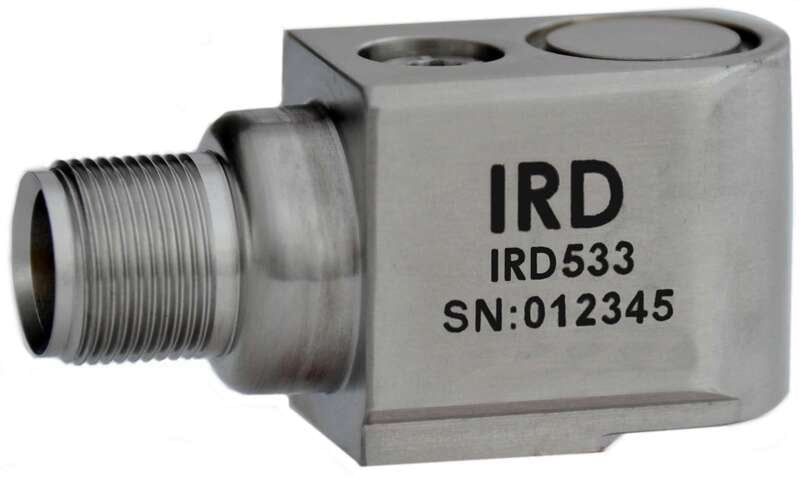

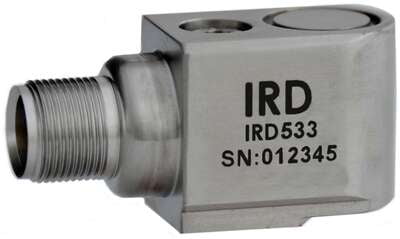

IRD533 (MIL533), Side Exit, 4 mV/mm/sec, M6 x 1 mounting bolt

Technical Perfomance

• Mounted Base Resonance (nominal)
  22 kHz
• Sensitivity
  4 mV/mm/sec
• Frequency Response
  2 Hz to 6 kHz
• Isolation
  Base Isolated
• Range
  1000 mm/s pk
• Transverse Sensitivity
  Less than 5%

Electrical

• Electrical Noise
  0.1mg max
• Current Range/Constant Current Excitation
  0.5mA to 8mA
• Bias Output Voltage
  10-12 Volts DC
• Settling Time
  2 seconds
• Output Impedance
  200 Ohms max
• Case Isolation
  More than 10 to the power 8 at 500 Volts
• Voltage Source (IEPE)
  18-30 V DC

Mechanical

• Case Material
  Stainless Steel
• Sensing Element/Construction
  PZT/Compression
• Mounting Torque
  8 Nm

Environmental

• Operating Temperature Range
  -55 to 140 Deg C
• Maximum Shock
  5000g
