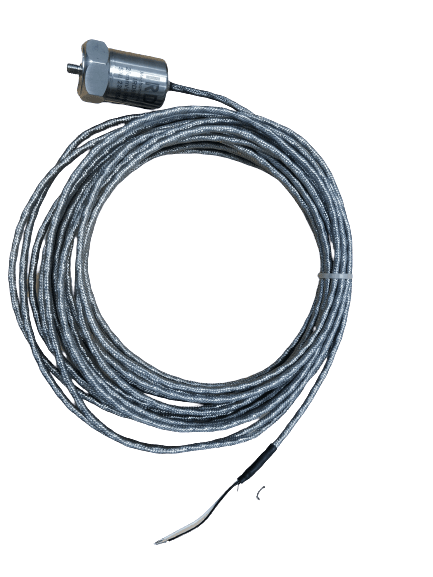

IRD592 (592), Loop Powered Vibration Sensor, 0-50 mm/s RMS, 4-20mA output, Top Exit, 30m integral cable armored, Sensor case material SS316L

IRD592 is a Loop Powered Vibration Sensor that provides 4-20 mA output proportional to Vibration Velocity. The sensor listed here provides 4-20 mA output for a vibration velocity range of 0-25 mm/sec rms. The sensor has 10m of braided cable integral to it. This sensor is suitable to continuous vibration monitoring of Pumps, Motors, Fans, etc.
Add to Cart
IRD592, Loop Powered Vibration Sensor, 0-25 mm/s rms, 4-20mA output, Top Exit, 10m cable
Product Details
  • Output current: 4-20mA DC proportional to rms velocity (mm/s)
  • Supply voltage: 12-32V DC (for 4-20mA)
  • Frequency response: 2Hz to 1kHz ±10%
  • Mounted base resonance: 18kHz (nominal)
  • Isolation: Electronics in Faraday cage, isolated from body
  • Dynamic range: 50g peak
  • Transverse sensitivity: Less than 5%
  • Operating temperature: -25 to 90°C
  • Temperature sensitivity: 0.08%/°C
  • Case material: Stainless steel
  • Cable: Integral stainless steel overbraided ETFE
  • Standard cable length: 5m
  • Maximum cable length: 100m
  • Mounting torque: 8Nm
  • Case material: Stainless steel
  • Weight: 140g (nominal)
  • Sealing: IP67
Technical Parameters
  • Full Scale Range
    0-25 mm/s RMS
