IRD811D Pro (811D/811 D) - Digital Vibration Meter cum Spike Energy Detector with Standard Accessories
₹108,625.00 ₹130,350.00

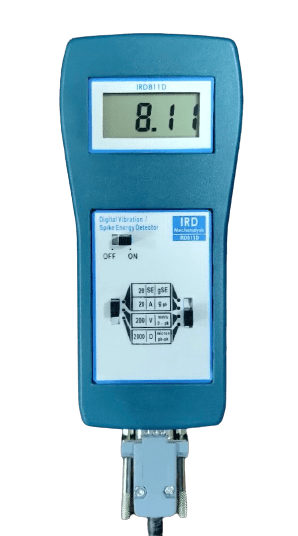

IRD811D is a Portable Digital Vibration Meter cum Spike Energy Detector. It is an easy-to-use and read meter with a digital display. It measures machinery vibration amplitude in terms of displacement (microns), velocity (mm/sec) and acceleration (g). It is also able to help assess anti‐friction bearing condition through measurement of Spike Energy (gSETM).
The broadband measurement of gSETM enable detection and measuring of “bursts” of Spike Energy at Ultrasonic frequencies. Bearing defects developing such as micro spalls, cracks and lack of lubrication can be quickly identified thus preventing unscheduled plant outage. From precision bearing inspection to plant-wide maintenance, the IRD811D has the sensitivity for measuring fractions of a micrometer to 2000 microns. Its integrated circuit technology provides wide dynamic range and long battery life.
Prices mentioned are for Sale within India and are Exclusive of Taxes. Taxes and Shipping Costs are calculated during checkout.
Tags:
Product Details
Specifications

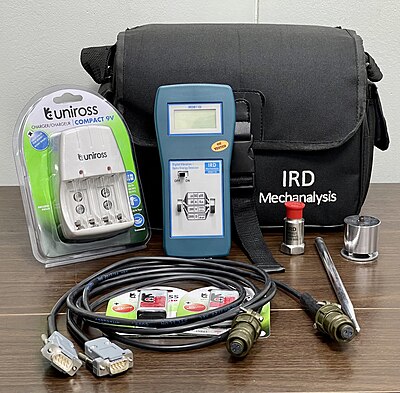

What's in the Box?
- IRD811D Digital Vibration Meter
- Multi‐purpose Accelerometer – IRD521
- 1 Coiled cable of 0.8m collapsed length and 3 meters extended length
- Magnetic Portable Base for IRD521 (also compatible with other IRD500 series sensors)
- Stinger

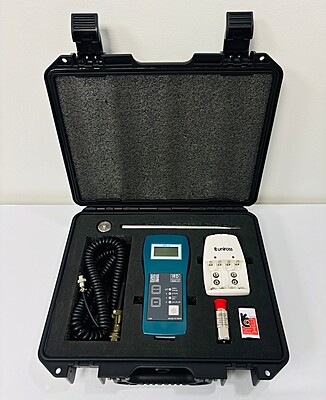

- Carrying Case
- 1 No. of 9V Rechargeable Battery
- 1 No. Charger for 9V Battery
Technical Specifications
- Measurement ranges:
- Displacement – upto 2000 microns pk-pk
- Velocity – upto 200.0 mm/s RMS (specify at time of ordering if you need mm/s pk in place of mm/s RMS)
- Acceleration – upto 20.00 g pk
- Spike EnergyTM – upto 20.00 gSE
- Frequency Range:
- Displacement – 300 CPM to 24,000 CPM (5 Hz to 400 Hz)
- Velocity – 300 CPM to 1,50,000 CPM (5 Hz to 2,500 Hz)
- Acceleration – 300 CPM to 6,00,000 CPM (5 Hz to 10,000 Hz)
- Accuracy of Instrument – 1% of Full Scale Reading (FSR)
- Input – Accelerometer IRD521
- Display – LCD 3 1/2 Digit

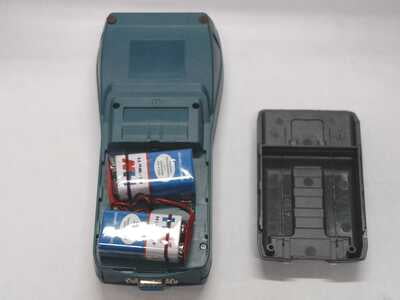

- Power requirements – Internal battery – 1 Nos. of 9V Battery
- Operating temperature ‐ 0˚C to 55 ˚C
- Storage temperature ‐ ‐18 ˚C to +60 ˚C
- Weight and Dimensions: Instrument 0.4 kg, 175 mm (L) x 80 mm (W) x 54 mm (H)
- Carrying Case – 2 kg (including meter and standard accessories)
Help Articles and User Manual for IRD811D
Visit the Help Center to find up-to-date help articles on IRD811D, download user manual of IRD811D and raise tickets for any unanswered query
Repair and Calibration
Our Service Center located at E8-14, Bhumi World Industrial Park, Thane - 421311, Maharashtra, India can provide Repair and Calibration support for IRD811D. Repairs and/or Replacements under Warranty are free. Calibration certificate for a healthy unit is chargeable if requested again under warranty apart from the original Calibration Certificate. Repaired and/or replaced unit under warranty will be provided with fresh Calibration Certificate. Issued Calibration certificates are valid for a period of 1 year from date of issuance. You can register your request by sending an email to service@irdmech.com
Technical Details
- MemoryWithout Memory
- Measurement Range Spike Energy0.00-20.00 gSE
- Measurement Range Acceleration0.00-20.00 g pk
- Measuring Range Velocity0.0-200.0 mm/s RMS
- Measuring Range Displacement0-2000 microns pk-pk
- Frequency Range Acceleration5 Hz - 10000 Hz
- Frequency Range Velocity5 Hz - 2500 Hz
- Frequency Range Displacement5 Hz - 400 Hz
- Instrument Accuracy1% of Full Scale
- Input SensorAccelerometer
- Connector2 Pin MRS Male
- DisplayLCD Digital Display (3 1/2 Digit)
- Batteries1 x 9V Dry Cell 210 mAh
- Operating Temperature0 to 55 Deg C
- Storage Temperature-18 to 60 Deg C
- Instrument Dimensions175 mm (L) x 80 mm (W) x 54 mm (H)
- Instrument Weight0.4 kg
- Total Weight with Accessories2 kg
- Kit DimensionsHard Case 305 (L) x 359 (W) x 99 (H) mm
