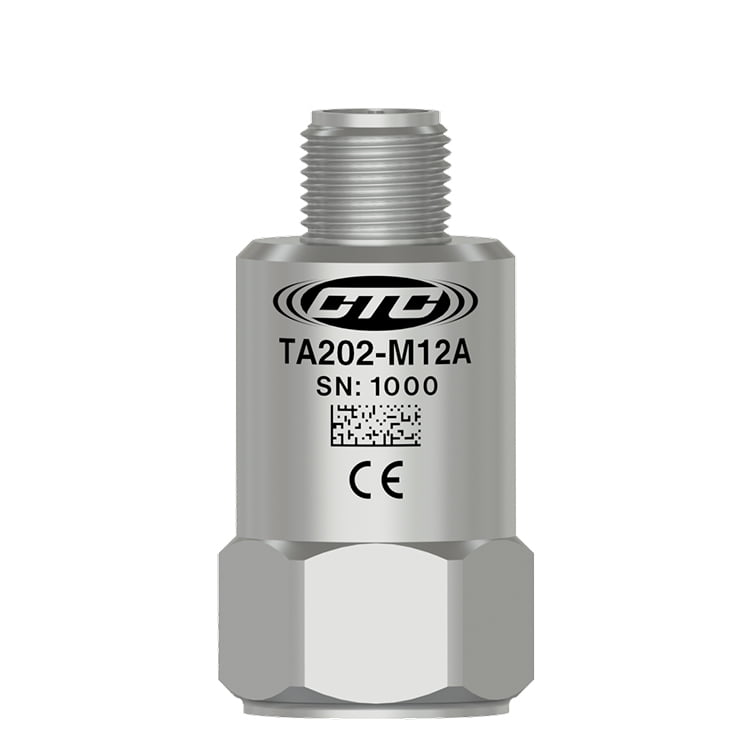

TA202-M12A - Dual Output Sensor, Temperature & Acceleration, Top Exit 4 Pin M12 Connector, 100 mV/g, 10 mV/°C, ±10%

Technical Perfomance

• Mounted Base Resonance (nominal)
  23000 Hz
• Sensitivity
  100 mV/g
• Frequency Response
  2 Hz to 12000 Hz +/- 10%
• Range
  +/- 50g, peak
• Temperature Measurement Range
  -40 to 121 Deg C
• Temperature Output
  10 mV/Deg C

Electrical

• Current Range/Constant Current Excitation
  2-10 mA
• Bias Output Voltage
  10-14 V DC
• Settling Time
  Less than 2.5 seconds
• Voltage Source (IEPE)
  18-30 V DC

Mechanical

• Case Material
  Stainless Steel SS316L
• Sensing Element/Construction
  PZT Ceramic/Shear Mode
• Mounting Torque
  2,7 to 6,8 Nm
• Weight
  90 grams
• Mounting Thread
  1/4"-28 UNF Female

Environmental

• Operating Temperature Range
  -40 to 121 Deg C
• Sealing
  IP68
• Maximum Shock
  5000g
