Fixturlaser ECO is an entry-level system for shaft alignment. Wireless sensor units, 4” colour display, rechargeable batteries and an IP65 design that withstands harsh environments. Fixturlaser ECO is a high-quality system that is very easy to use.
User Manuals and Help Articles are available in the Help Center
Only Benefits with FixturLaser ECO
- Integrated Bluetooth
- Lifetime Warranty
- Pre-mounted sensors
- Colour screen, 4"
- Vertizontal Moves
- Screen Flip
- 8 hours battery time, continous use
- CCD sensors technology
- Live values during adjustment
- IP65 classified
- Slim sensor units
The adaptive user interface will guide you throughout the measurement and alignment process. VertiZontal Moves™ – where you only have to measure once before making the required vertical and horizontal adjustments. The VertiZontal Moves™ is an innovative and time-saving feature.

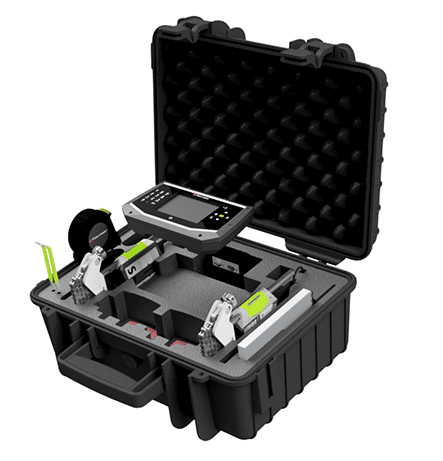

What's in the case?
|FIXTURLASER ECO - Package with Case|
|1 FIXTURLASER ECO display unit|
|2 FIXTURLASER ECO sensors, M/S|
|2 pcs of V-brackets, complete with chains|
|1 power supply 4 USB-port 5 VDC|
|2 pcs of external power cables, EUR/US type/model, 2 m|
|2 pcs of USB-cables A-mini B, 0,5 m black|
|2 pcs of USB-cables A-micro B, 1,5 m black|
|1 Tape measure, 5 m|
|2 Angled universal tools|
|1 FIXTURLASER ECO manual - English version|
Fixturlaser ECO has Fixturlaser’s unique adaptive user interface
Step 1 - Enter the dimensions
Step 2 - Rotate the sensors to the first position and press the measurement icon
Step 3 - Rotate the sensors to the second position. Press the measurement icon again to take the second measurement.
Step 4 - Rotate the sensors to the third position and measure. The results will be displayed on screen. Press the shim icon.
Step 5 - Correct vertically then press the ”live reading icon”...
Step 6 - ...to correct horizontally with live values. Verify your corrections by remeasuring. Save your measurements!
