IRD449 (449) Vibration Diagnostic Smart Meter With Standard Accessories

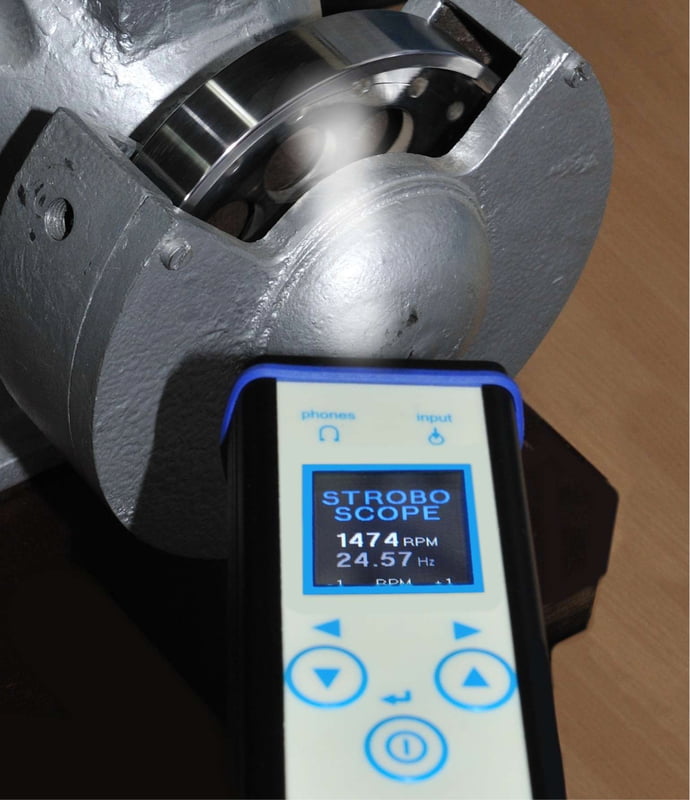

IRD449 is a Four-in-one vibration meter. It is able to measure Vibration, Temperature, Speed and Bearing Condition in one single portable handheld device. It has a colour display and the vibration readouts are colour coded too based on severity of vibration.
To view complete features and technical details, please download the brochure by clicking here.
- MemoryWithout Memory
- Measurement Range Acceleration600 g pk
- Measuring Range Velocity999 mm/sec pk
- Measuring Range Displacement999 microns pk
- Frequency Range Displacement2 Hz - 200 Hz
- Input SensorAccelerometer
- Connector7 Pin Binder
- OutputColour OLED, 128 x 128 pixels, diagonal 1.5”

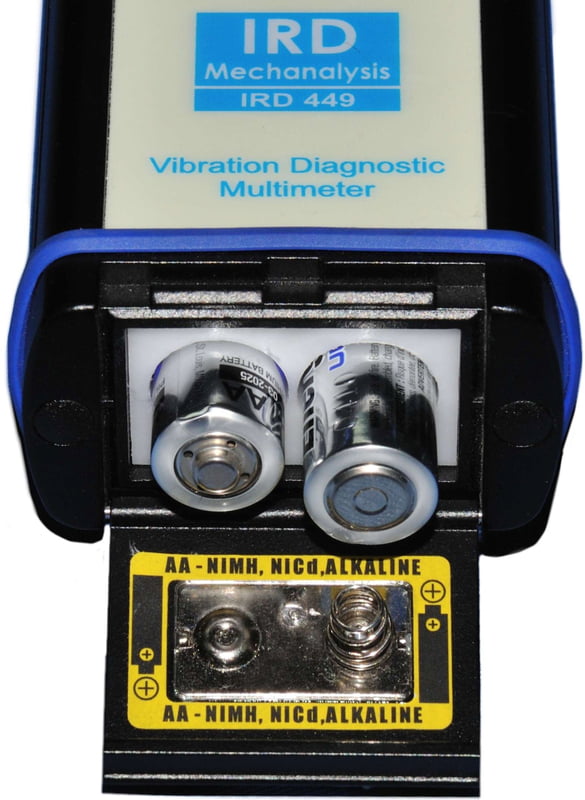

- Batteries2xAA 1.5V (alkaline, NiMH, LiFe)
- Operating Temperature-5 to 50 Deg C
- Storage Temperature-20 to 65 Deg C
- Instrument Dimensions150 mm (L) x 60 mm (W) x 35 mm (H)
- Instrument Weight350 grams
