IRD546DP Inductive Velocity Direct Prod Sensor for Rotor Balancing

₹55,000.00 ₹60,000.00

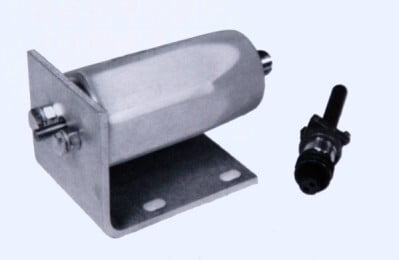

The IRD Mechanalysis model IRD546DP is a high-sensitivity inductive velocity sensor for use in displacement type balancing machines or on-site. Click here for Data Sheet of IRD546DP
Add to Cart
IRD546DP Inductive Velocity Direct Prod Sensor for Rotor Balancing
IRD546DP Inductive Velocity Direct Prod Sensor for Rotor Balancing
IRD546DP Inductive Velocity Direct Prod Sensor for Rotor Balancing
IRD546DP Inductive Velocity Direct Prod Sensor for Rotor Balancing
Product Details
In production for over 60 years, the series continues to be the world’s most widely used velocity sensor. The electrical characteristics of the IRD546DP are the same as the highly proven IRD544 vibration sensor. With the direct prod magnetically attached to the vibrating part and the case rigidly mounted to a fixed reference, voltage output is directly proportional to vibration velocity. The magnetic prod eliminates any machine/sensor alignment variations when installing the sensor.
  • Technical Performance
    • Frequency Response: 0-200Hz ± 5%
    • Dynamic Range: 3.17mm pk-pk
    • Probe travel: 9.5mm (0.375inches) pk-pk
    • Sensitivity: 42.52 mV/mm/sec ± 8% (1080 ±8% mV/in/s)
    • Impedance: R=2k ohms, L = 0.7 H at 21°C
  • Mounting
    • Orientation: Sensitive axis horizontal
    • Grounding: Case and Signal Ground common
    • Connector: 2-pin equivalent to MS-3102A-10SL-4P
    • Sensor Prod Directly connected by a magnetic prod to machine motion block
  • Environmental
    • Operating range: -40°C to 121°C
    • Sealed: To IEC IP50
    • Weight: 0.907 Kg (2 lbs)

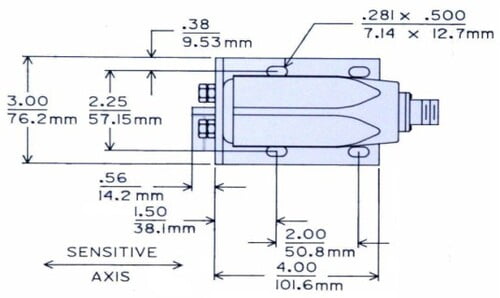

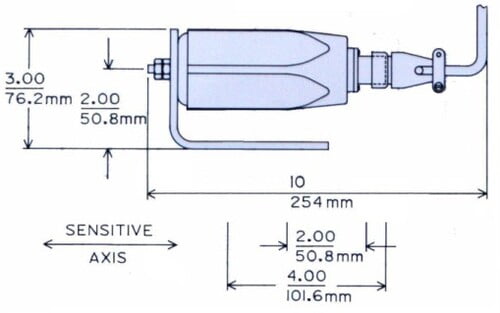

    • Dimensions: 63.5mm (W) x 63.5mm (D) x 138mm (L)
