IRD8800 (8800), M88280 (88280) - Generator End Winding Vibration Module, 2Ch Vibration Input, API Standard 670 Compliant

₹67,512.00

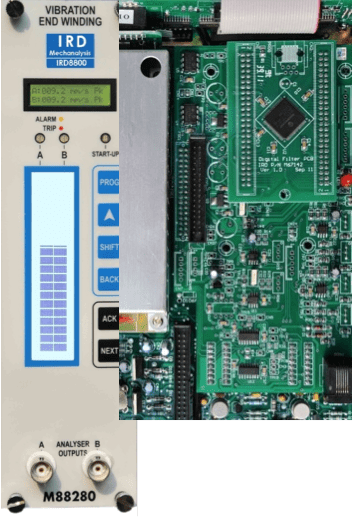

M88280 is a Vibration Monitoring Card of the family IRD8800. It is API 670 Compliant. It is a Dual Channel Card which accepts input from a vibration sensor or charge amplifier. It has special filters for filtering Vibrations at 50 Hz and 100 Hz. Thus, this card finds application in Generator End-Winding Vibration as it informs about possible electrical faults that usually occur at Line Frequency i.e 50 Hz and its second harmonic i.e 100 Hz.

The card has in-built alphanumeric and bar-graph display. It also has push buttons on front panel for accessing the password protected setup menu. The card is able to provide 4-20 mA output, Alarm and Trip Relay Contacts per Channel and Buffered Outputs. The card also accepts standard Keyphasor input and provides TTL Pulse Output.

The price indicated is Ex-Works Thane. Shipping and Taxes are Calculated during Checkout. If you are buying from Outside India, please contact our Sales Team at sales@irdmech.com for quote in foreign currency.

The standard lead time is 4 weeks and a warranty of 12 months is provided from date of dispatch. For extended warranty, please contact our Sales Team at sales@irdmech.com for a quote.

If you are an existing Customer and your card need calibration and/or repairs, please raise a support ticket by following this link and our service team will get back to you.
Add to Cart
IRD8800, M88280 - Generator End Winding Vibration, 2Ch Vibration Input
Specifications
Technical Specifications
  • Input
    Charge Amplifier
  • Full Scale Range
    User Programmable
  • Relay Contact Rating
    5 A @ 230 V AC Resistive
