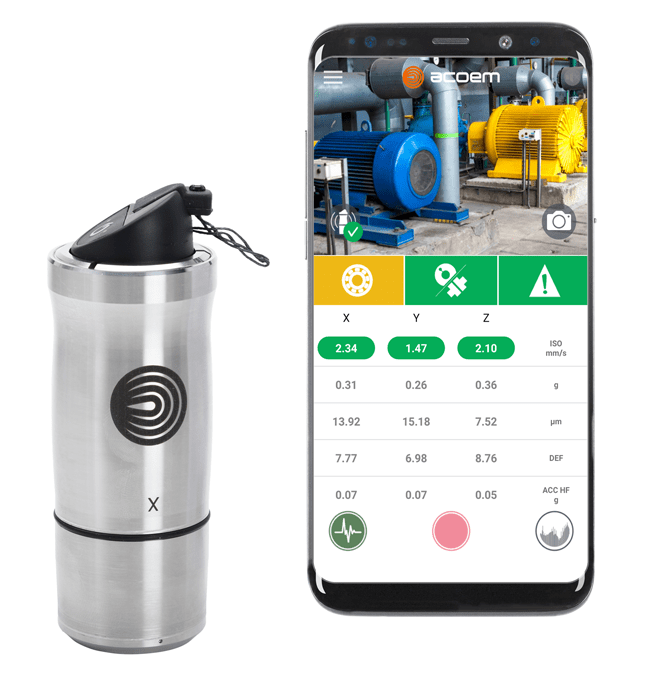

Bearing Defender - Wireless Triaxial Vibration Analyzer with Smartphone and Tablet Compatibility

₹278,500.00
This easy-to-use product is a combination of a Wireless triaxial vibration sensor along with the Bearing Defender app. The app can run on any IOS or Android smartphone or tablet (sold separately). The app can be downloaded for free from the Play Store or App Store. When coupled with the Wireless triaxial vibration sensor, the bearing defender is able to:
  • Capture Vibration in three directions simultaneously
  • Display Vibration Velocity with alarms according to ISO10816-3 standard, full range acceleration and displacement on the app
  • Display Bearing Defect Factor value along with High frequency acceleration value
  • Help in detecting bearing faults, unbalance, misalignment and miscellaneous defects
  • Allow listening the bearing via Audio
  • Display Vibration Spectrum of all three channels on a single FFT display ZYXstrum TM

Add to Cart
Product Details


Bearing health checker

Packing in Acoem’s 30+ years of experience in the monitoring of rotating machinery, the patented wireless Bearing Defender gives instantaneous advice on a bearing health. Accessible to all mechanics, it provides a quick leverage of improvement of a reliability program.

Easy to use

The Bearing Defender has been designed to put bearing health assessment at the grasp of every mechanics. By simple selection of the machine speed range, power range and type of mounting, the Bearing Defender tells the user if he most likely in presence of a bearing defect, unbalance or misalignment problem, or something else. Thanks to its visual icon based interfaces and color codes, any worldwide user can handle the Bearing Defender without prior training.

Results in 10 seconds

The Bearing Defender only takes 10s to capture, process and display the data resulting from the measurement in the three directions. A full vibration reading of the bearing is displayed in addition to the smart indicators:

  • Vibration velocity with alarms according to the ISO10816-3 standard
  • Full range Acceleration
  • Displacement
  • Bearing Defect Factor™ value
  • High Frequency acceleration value
Reliable wireless triaxial measurements

Some of the most common faults of rotating machinery, like unbalance or structural resonance can occur in a single direction. To avoid to let a faulty machine unnoticed the Bearing Defender takes tri-axial vibration readings in a single shot, not only to make the measurement process easier but also to keep your machine in good operating condition. Thanks to its patented wireless measurements and metrological performances, the Bearing Defender makes sure that your machines can keep spinning without risk

30+ years of experience built-in

Wireless and compatible with mobile devices, the Bearing Defender also embeds the powerful Acoem Bearing Defect Factor™ algorithm. Developed in the 70’s on more than 2000 rolling elements, this technology has brought proven results for the monitoring of bearing faults on common machines in various types of industries worldwide.

Your Mechanics 4.0

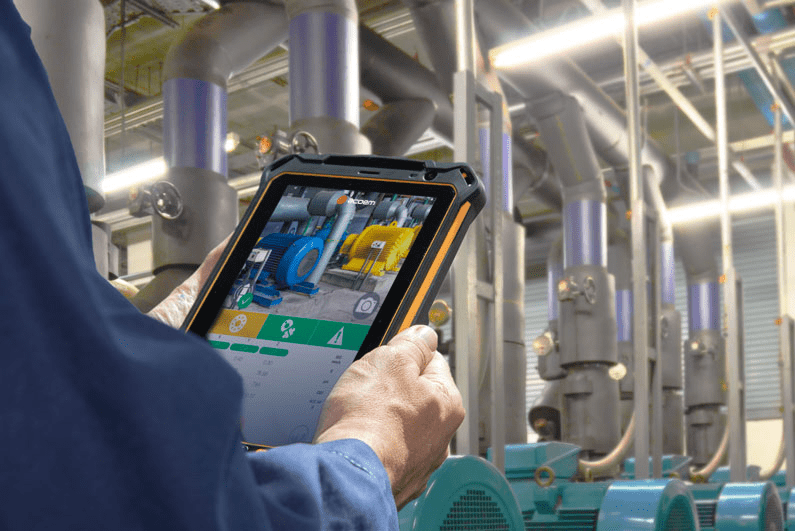

The Bearing Defender is compatible with smartphones and tablets on iOS or Android. Using a standard and user friendly display device, it is now possible to integrate vibration measurements in your maintenance 4.0 program and take the best out of your people in the field.

Complete Walkthrough Demo
